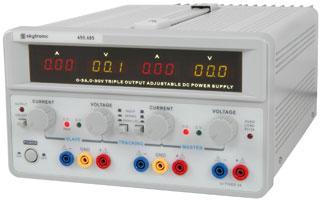

Triple Output Regulated Power Supply With Variable Outputs 2 x 0-30V / 0-3A + 5V / 3A Fixed

Triple Output Regulated Power Supply With Variable Outputs 2 x 0-30V / 0-3A + 5V / 3A Fixed

Regulated power supply with dual variable output voltages from 0-30Vdc and a fixed 5V/3A output. The unit consists of two identical, independently adjustable power supplies, and one fixed 5V/3A DC power supply. A front panel switch selects one of three modes of operation: independent, series and parallel. The power supply is regulated giving constant current/voltage supply and a full rated, maximum current output which can be continuously adjusted throughout the output range.

Features

The setting of the output voltages can be coupled (master/slave)

Series and parallel switchable output

Incorporates short circuit and 'FOLDBACK' over load protection

Variable voltage and current limiting

Housed in a solid metal case

Power switch fitted

Outputs via red, black and green 4mm terminal sockets

The output voltage and the supplied current are indicated with 2 green LED displays for voltage and 2 red LED displays for current

Air cooled

DC output standby function

Specification

Power supply 230Vac, 50Hz

Accuracy : 5V output 5V (±0.25V)

Line regulation CV<0.01%+3mV, CC<0.2%+3mA

Line regulation : 5V output <5mV

Line regulation : Series <0.01% (+5mV)

Load regulation CV<0.01%+3mV, CC<0.2%+3mA

Load regulation : 5V output <15mV

Load regulation : Series < 300mV

Output Current : Fixed 3A

Output Current : Variable 2 x 0-3A

Output voltage : Fixed 5V

Output voltage : Variable 2 x 0-30V

Parallel operation Line Regulation <0.01%+3mV, Load Regulation <<0.01%+3mV (rating current 3A)

Ripple & noise <1mV rms, 5Hz - 1MHz

Ripple & noise : 5V output <2mV rms

Ripple current <3mA rms

Dimensions 255 x 150 x 330mm

Weight 8.1kg
