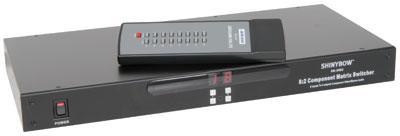

SB-5582 8:2 Component Video (RGB) & Audio Matrix Switcher With IR Remote + RS232 Control

The SB-5582 8:2 Component Video (RGB) & Audio Matrix Switcher is a matrix routing switcher for controlling component video (YPbPr/YCbCr, RGB) and stereo audio signals. It has 8 inputs and 2 outputs. Because it is a matrix router, any of the inputs may be routed to either of the outputs, or the same input may be routed to both outputs or a combination. It completely eliminates the need to constantly move around audio and video input and output cables. The switcher is ideally suited for high definition television applications. Control is provided via front push buttons. An RS232 interface is provided for PC control and an infrared remote control is also supplied.

Features:

• 19' Rack mountable (brackets supplied)
• Two 7 segment LED displays
• Housed in a metal case
• 8 inputs and 2 outputs via colour coded RCA phono sockets
• Component video (YPbPr/YCbCr, RGB) and stereo audio inputs and outputs
• Mains adaptor, 2m RS232 lead and Windows based software supplied
• Suitable for high resolution HDTV 480p, 576p, 720p, 1080i60, 1080p60
• Supports RS232 interface control driver for Windows 98/2000/XP
• On/Off switch fitted
• Gold plated RCA phono sockets for optimum signal transfer

Specification:

• Power supply - 12Vdc, 500mA
• Temperature range - -40°C - +85°C
• Frequency response - 20Hz - 20kHz (±0.05dB)
• Video bandwidth - 250MHz (-3dB)
• Crosstalk - -83dB @ 5MHz
• Slew rate - 400V/µs
• Channel switch time - 25ns with 1% setting
• Dimensions - 440 x 200 x 44mm
• Weight - 1.98kg
