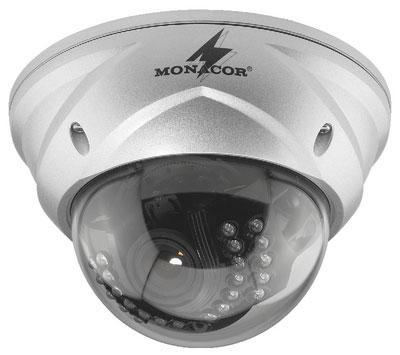

TVCCD-365WDR Weatherproof Colour Dome Camera With Wide Dynamic Range

The TVCCD-365WDR Weatherproof Colour Dome Camera With Wide Dynamic Range function and professional day/night function. The extended dynamic range of the wide dynamic function allows an application even with less than perfect lighting conditions such as backlighting. With this camera it is possible to recognise the faces of people standing in front of a bright window or in a doorway.

Features:

• Metal housing protected against vandalism
• Due to 24 infrared LEDs, suitable for application in the dark. For this purpose, the camera switches to B/W operation (IR operating range: 25m, with optimum reflection)
• With integrated IR suppression filter for perfect colour quality at daytime, automatic change of suppression filter at night for activating the IR light suitability and increasing the luminous sensitivity in B/W operation
• Zoom lens (2.8-12mm)
• 3-axis swing frame, thus wall mounting possible
• Privacy masking function
• Mirror function
• Automatic electronic shutter
• RS-485 interface for connecting optional control panels with Pelco D protocol, e.g. EKB-500
• On-screen menu control (OSD)
• 50cm connection cable for power supply and video (BNC)
• Image sensor 8.5mm ( 1/3 ') CCD
• Number of pixels hor. 720 x vert. 540
• Resolution 540 lines
• Lens 2.8-12mm/1:1.2
• Min. illumination 0.1 lux (w/o IR illumination)
• Admiss. ambient temp. -10 °C to +50 °C
• Power supply 12V DC current /600mA or 24V˜/300mA
• Dimensions Ø 150mm x 96mm
• Weight 850g
• Other features IP67, suit. for IR, AGC, BLC, SDNR, WDR
