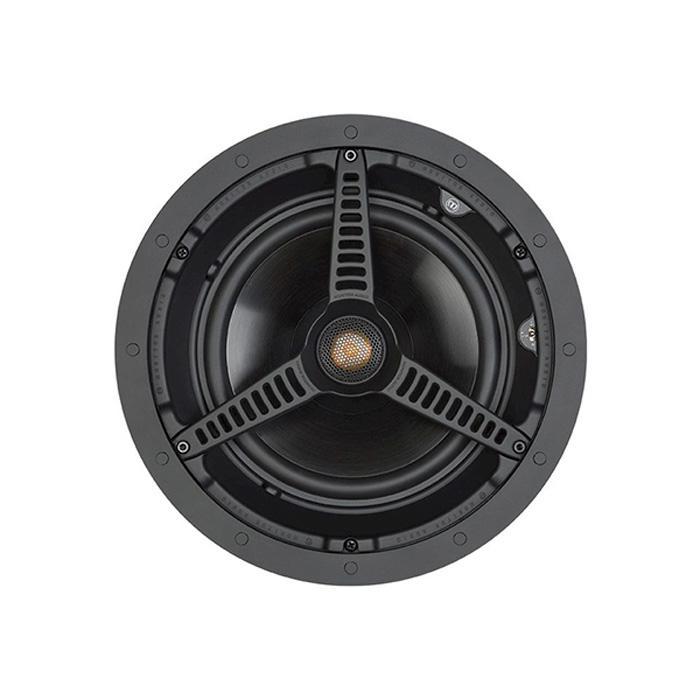

The Monitor Audio C180 is a high-performance in-ceiling speaker designed for both residential and commercial installations. Ideal for home cinemas, multi-room audio systems, and discreet background music setups, it delivers exceptional sound quality while integrating seamlessly into any interior décor.
Featuring an 8-inch MMP II bass driver and Monitor Audio's signature 1-inch C-CAM Gold Dome tweeter, the C180 offers a wide frequency response and impressive dispersion, ensuring detailed and immersive audio reproduction across various applications.
Constructed with a mineral-filled ABS chassis, the C180 is both robust and lightweight. The pivoting tweeter design enables precise sound direction, enhancing the listening experience in any room configuration.
The speaker's Tri-GripRegistered dog-leg fixings provide a secure and straightforward installation, ensuring a firm fit and optimal acoustic performance.
| Specification | Details |
|---|---|
| Power Source | Passive (requires external amplifier) |
| Driver Complement | 8" MMP II bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Frequency Response | 50 Hz - 25 kHz |
| Sensitivity (1W@1M) | 90 dB |
| Nominal Impedance | 6 ohms |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 - 120 W |
| Maximum SPL | 111.6 dBA |
| High-Frequency Level Adjustment | +3 dB / 0 dB / -3 dB |
| Overall Diameter (Including Grille) | 285 mm (11 1/4") |
| Mounting Depth | 122 mm (4 13/16") |
| Cut-Out Hole Diameter | 247 mm (9 3/4") |
| Fixing Type | 3-position Tri-Grip dog fixings |
| Construction Material | Mineral-filled ABS, RoHS compliant |
| Weight | 2.72 kg (6 lb) |
| Optional Accessories | Square grille, CB8 pre-construction bracket, CCBOX-R / CMBOX-R back box |
| Warranty | Lifetime |
The C180 delivers a balanced and dynamic sound profile, making it suitable for a variety of audio applications. Its wide frequency response ensures clarity across the audio spectrum, while the pivoting tweeter and high-frequency adjustment allow for tailored sound dispersion based on room acoustics. The speaker's design facilitates easy installation and integration into any space, providing both aesthetic appeal and acoustic excellence.
Q: Can the C180 be used in a bathroom or humid environment?
A: The C180 is not specifically rated for high-humidity environments. For such applications, consider using moisture-resistant models designed for bathrooms or outdoor areas.
Q: Is the grille paintable to match my ceiling colour?
A: Yes, the magnetic grille is paintable, allowing you to customise its appearance so it blends seamlessly with your ceiling.
Q: Does the C180 support stereo input?
A: The standard C180 is a mono speaker. For stereo input from a single speaker, consider the C180-T2 model, which features dual tweeters for stereo sound reproduction.
Q: What type of amplifier is recommended for the C180?
A: An amplifier with a power output between 30 and 120 watts per channel at 6 ohms is recommended to drive the C180 effectively.
Q: Are there any accessories available for pre-construction installations?
A: Yes, Monitor Audio offers the CB8 pre-construction bracket and CCBOX-R / CMBOX-R back boxes to facilitate installation during the construction phase.
