Monitor Audio CF230 3" Ceiling Speaker (Single)

The CF230 is Monitor Audio’s most visually discreet speaker system, providing an abundance of design possibilities for integrators, architects and installers. Its ingeniously designed retrofit and pre-construction make it a dream to install, while its C-CAM-based driver array delivers the superb audio this British maker is famed for.

Specification:

• Frequency Response (-6 dB) - 100 Hz – 25 kHz
• Sensitivity (1W@1M) - 82.5 dB
• Nominal Impedance - 8 ohms
• Maximum SPL - 98 dBA (each – full range), 103.3 dBA (each – Using crossover)
• Power Handling (RMS) - 30 Watts (full range – IEC268-5 rating), 100 Watts Music program (Using High Pass crossover filter @120 Hz)
• Recommended Amplifier Requirements - 10-30 Watts (full range), 10-100 Watts (Using High Pass crossover filter @120 Hz)

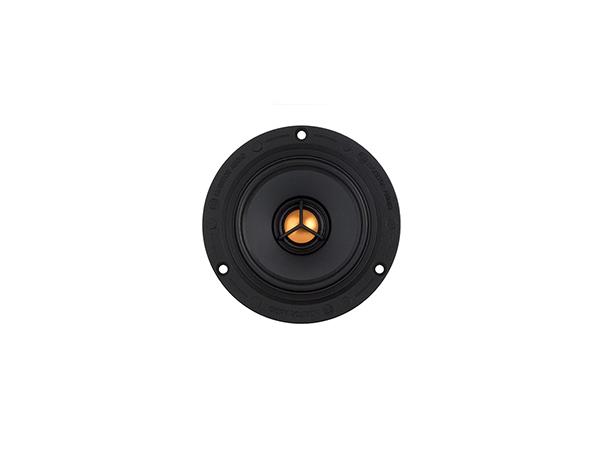

• Drive Unit Complement - 3" Bass/mid-range driver, featuring C-CAM cone. Coincident mounted 19 mm tweeter with C-CAM Gold Dome
• Overall Diameter (Including Grille) - 112 mm (47/16")
• Mounting Depth - 81.5 mm (3 3/16")
• Cut-Out Hole Diameter - Flush 120 mm (43/4"), Retrofit 90 mm (39/16")

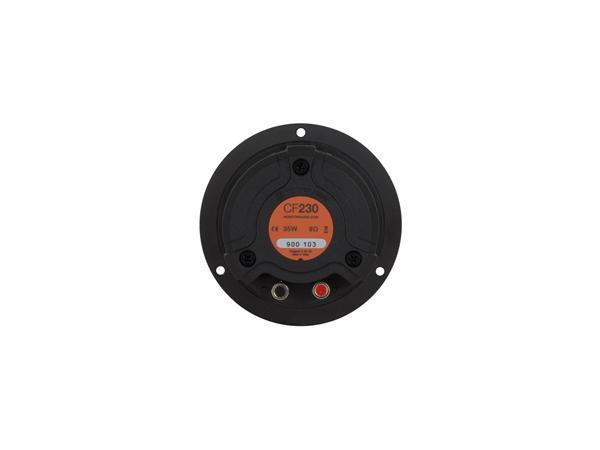

• Connection - Sprung push type terminals – Gold plated
• Weight - 0.44 kg (1 lb)
