Monitor Audio CS140 In-Ceiling Speaker 50W

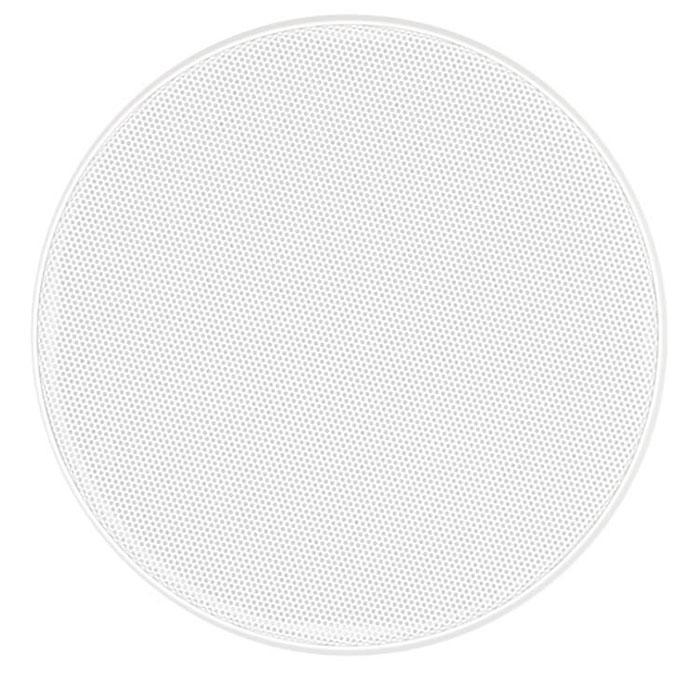

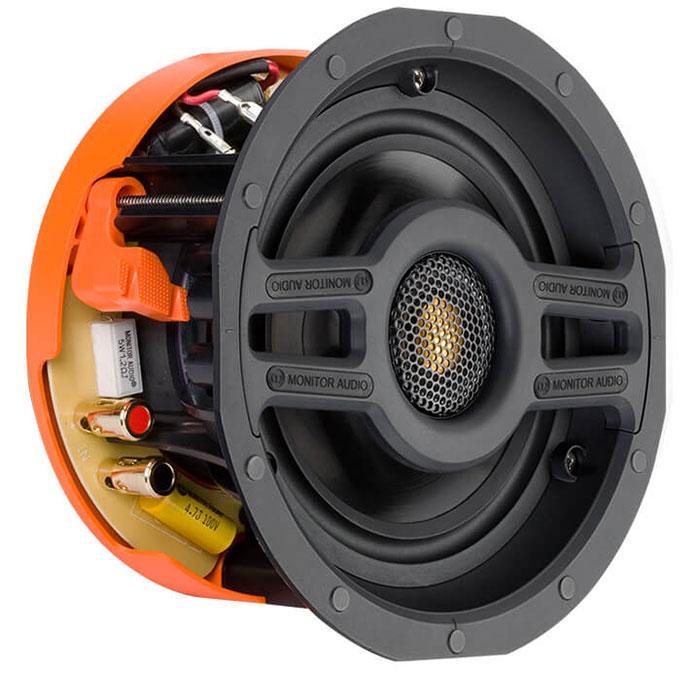

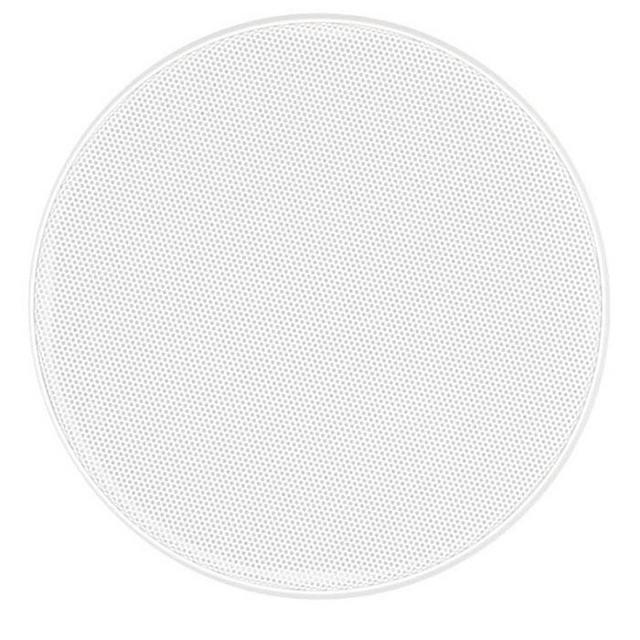

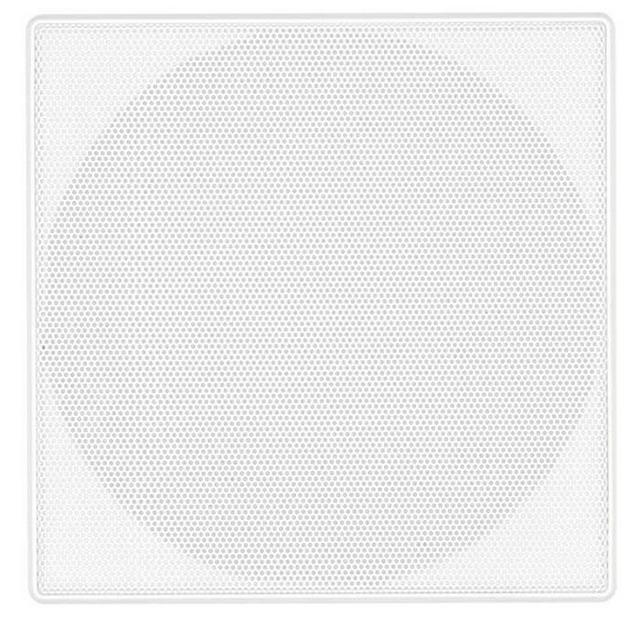

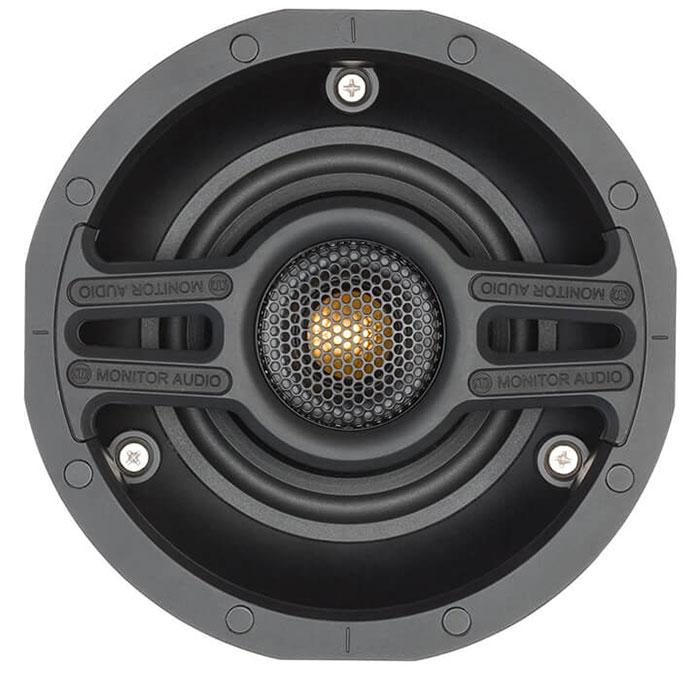

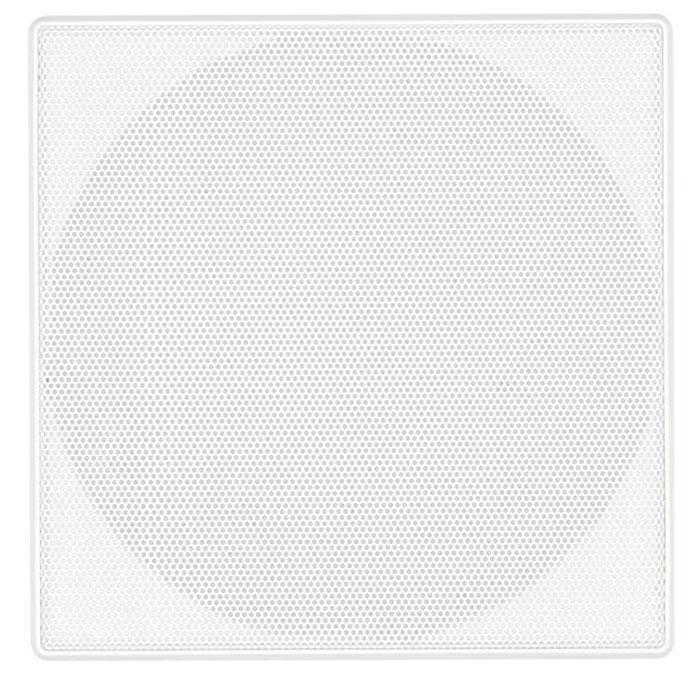

The compact CS140 ceiling speaker from Monitor Audio comes with either a round or square grille. Its unique enclosure houses a 4" MMP®II driver with a pivoting C-Cam® gold dome tweeter. Ideal for all types of install including shower room or pool areas.


  • Smaller - Overall size is typically 25% smaller than similar products
  • Slim - all models less than 4” deep for easy installation in more locations
  • Tri-Grip – secure and easy fixing
  • MMP® II – Monitor Audio’s advanced bass/mid driver cone technology
  • C-CAM® – distinctive and renowned gold dome tweeter with up to 15 degrees of pivot in all directions
  • Trimless – unobtrusive frame and low profile grille for installations where discreet aesthetics are necessary
  • Magnetic grille fixing - grilles are held in place by ultra-powerful Neodymium magnets for easy installation and servicing
  • Paintable grille to allow perfect integration with décor. Additional scrim material is provided to facilitate trouble-free painting
  • All models are splash and humidity proof for installation in shower room or pool areas
  • All models feature dust protection covers that are designed to prevent the ingress of loose building materials or dust into the driver and crossover network

Technical Specifications:

  • Frequency Response 75Hz - 30kHz
  • Impedance (nominal) 6 Ohms
  • Sensitivity ([email protected]) 85dB
  • Maximum SPL (single unit in free space) 102.8 dBA
  • Power Handling (R.M.S) 50 W
  • Recommended Amp Requirements 10 - 50 W
  • Drive Unit Complement 1 x 4” MMP®II cone bass driver. 1 x 1” (25mm) C-CAM® pivoting gold dome tweeter
  • Acoustic Configuration 2-Way
  • Overall Size Round: 180.2mm (7 1/8”) Square: 176.7 x 176.7mm (6 15/16 x 6 15/16”)
  • Mounting Depth 98.6mm (3 7/8”)
  • Cut-out Hole Diameter 149mm (5 7/8”)
  • Fixing Type 3 position Tri-Grip® dog fixings
  • Cable Connection Gold plated ‘push’ type terminals
  • Grille Attachment Magnetic
  • onstruction Material Mineral filled ABS, RoHS compliant
  • Weight 1.18kg (2.6lb)
