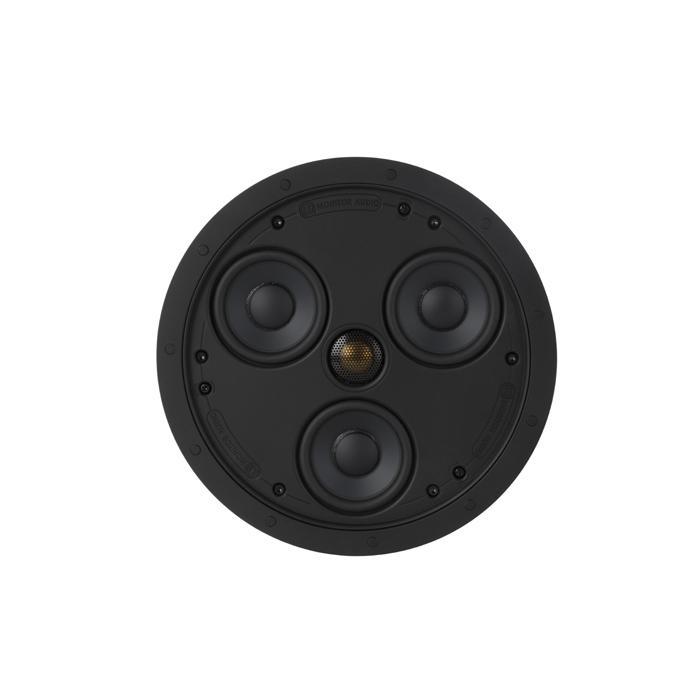

Monitor Audio Super Slim CSS230 Ceiling Speaker


£305.00 inc vat
£254.17 ex vat
delivery time Want it tomorrow?
Order within -:- and choose next-day delivery

Monitor Audio Super Slim CSS230 Ceiling Speaker

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.


  • Super-slim mounting depth 50 mm (2") designed to fit within 2" stud walls or where space is restricted
  • Hybrid CP 'Controlled Performance' style, enclosed or open back-box option provides flexible high performance options and sound isolation in one (pictured right)
  • Driver configuration of three 3" C-CAM bass/mid-range drivers in a radial array around a 19 mm C-CAM Gold Dome tweeter (fixed position) and high quality crossover design offers Monitor Audio's award-winning signature sound quality
  • Gold plated sprung push terminals are reliable and easy to connect
  • Magnetically attached 'Trim-less' round and square grille options for discreet, reliable and easy servicing, flexible in-wall/ceiling installation, paintable to blend with décor
  • Patented Tri-Grip dog leg fixings - Reliable, robust and quick to install
  • Existing CB6 pre-construction bracket for easier system design and planning


  • Frequency Response (-6 dB): 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back)
  • Nominal Impedance: 8 ohms
  • Sensitivity ([email protected]): 86 dB
  • Maximum SPL: 103.8 dBA
  • Power Handling (RMS): 40 Watts – Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)
  • Recommended Amplifier Requirements: 10 - 60 W
  • Drive Unit Complement: 3 x 3" C-CAM cone bass-mid drivers, 1 x 19 mm (3/4") C-CAM Gold Dome tweeter
  • Crossover Recommendation: 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
  • Connection: Gold Plated Sprung push terminals – for bare wire connection up to 4 mm(2)
  • Overall Diameter (Including Grille): 250 mm (913/16")
  • Overall Depth (Including Grille): 54 mm (21/8")
  • Cut-Out Hole Diameter: 211 mm (81/4")
  • Mounting Depth: 50 mm (2")
  • Optional Square Grille - Outer Dimensions: 249 x 249 mm (9 3/16")
  • Fixing Type: 3 position Tri-Grip dog leg fixings
  • Construction Material: ABS (UL94 rated, RoHS2 Compliant) – Painted steel grille
  • Weight: 2.88 kg (6 lb 5 oz)
  • Pre-Construction Bracket: CB6 Pre-Construction Bracket (Purple)
