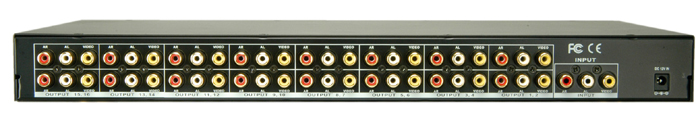

16-Way A/V Distribution Amplifier

The 16-Way A/V Distribution Amplifier is a compact composite video/stereo audio distribution amplifier that is ideally suitable for distributing signals from a variety of devices for up to 16 screens. The amplifer comes with a mains adaptor and a 19' rack mounting kit.

Features:

• Ideal for distributing signals from DVD, video game consoles, satellite receiver, DVB-T Box, etc. to upto 16 screens
• Gold plated RCA phono sockets
• Non-slip feet
• Supplied with mains adaptor and 19' rack mounting kit
• Push On/Off switch and LED power ON indicator



Technical specification:

• Power supply 12Vdc, 500mA
• Audio input 0.5 - 4V (p-p), 47k ohms
• Audio output 0.5 - 4V (p-p), 47k ohms
• Distortion:Audio Video input 1V (p-p), 75 ohmsVideo output 1V (p-p), 75 ohms
• Distortion:Video Channel separation >50dBSignal to noise ratio >50dB
• Dimensions 482 x 200 x 44mm
• Weight 1.42kg
