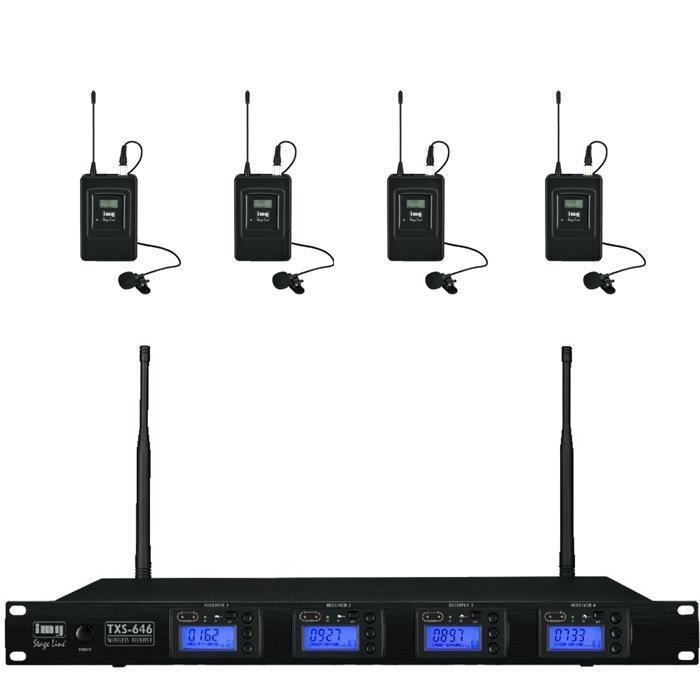

Quad Wireless Microphone System With 4 x Tie Clip Mics

#25.3530TD

£570.00 inc vat
£475.00 ex vat

Quad Wireless Microphone System With 4 x Tie Clip Mics

High Quality IMG Stageline Quad Tie-Clip Microphone system.

Channel 38 shared license. You can run upto 12 microphones simultaneously. If you require more than 12 microphones, please call for advice on achieving this.

Features (TXS-646 Receiver):

  • Channel 38 - Shared License
  • ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
  • Automatic scan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch can be adjusted for each channel
  • LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED display for audio signal of each channel
  • XLR output for each channel, bal.
  • 6.3mm output for mixed signal
  • Stable metal housing
  • Supplied with PSU
  • 482mm (19") rack installation, 1RS

Technical Specifications (TXS-646 Receiver):

  • Carrier frequency - Channel 38
  • RF S/N ratio 105dB
  • Audio frequency range 30-18,000Hz
  • THD < 0.5%
  • Dynamic range 120dB
  • Audio output 350mV/600Ω (jack)
  • 25mV/600Ω (XLR, bal.)�
  • Admiss. ambient temp. 0-40 °C
  • Power supply via suppl.
  • Plug-in PSU
  • Dimensions 482x45x310mm
  • Weight 2.9kg

Features(TXS-606LT Transmitter):

  • Channel 38 - Shared License
  • Continuously adjustable sensitivity
  • LCD for group/channel, audio level and battery status
  • Tie clip microphone with 3.5mm plug with latching device
  • Belt clip
  • Power supply via 2 x 1.5V battery AA size (not supplied)

License required for this system in the EU!

Technical Specifications(TXS-606LT Transmitter):

  • Carrier frequency - Channel 38
  • Transmitting power 25mW
  • Audio frequency range 30-18,000Hz, ±3dB�
  • Frequency stability ±0.005%
  • Operating time > 8h
  • Dimensions 61x106x27mm
  • Weight 125g
