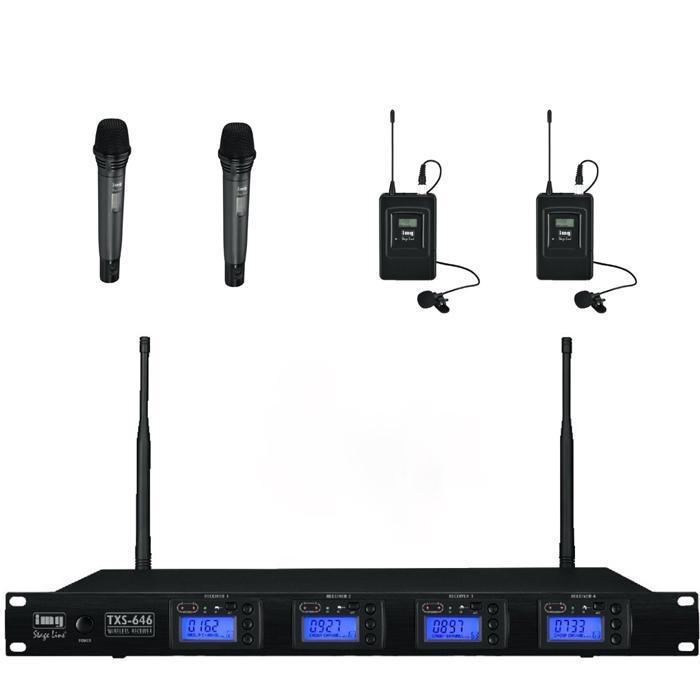

Quad Wireless Microphone System with 2 x Hand Held and 2 x Tie Clip

High Quality IMG Stageline Quad Hand Held and Tie-Clip Microphone system. License Required for this system.

Features (TXS-646 Receiver):

• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
• Automatic scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch can be adjusted for each channel
• LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED display for audio signal of each channel
• XLR output for each channel, bal.
• 6.3mm output for mixed signal
• Stable metal housing
• Supplied with PSU
• 482mm (19") rack installation, 1RS

Technical Specifications (TXS-646 Receiver):

• RF S/N ratio 105dB
• Audio frequency range 30-18,000Hz
• THD < 0.5%
• Dynamic range 120dB
• Audio output 350mV/600Ω (jack)
• 25mV/600Ω (XLR, bal.)�
• Admiss. ambient temp. 0-40 °C
• Power supply via suppl.
• Plug-in PSU
• Dimensions 482x45x310mm
• Weight 2.9kg

Features(TXS-606LT Transmitter):

• Continuously adjustable sensitivity
• LCD for group/channel, audio level and battery status
• Tie clip microphone with 3.5mm plug with latching device
• Belt clip
• Power supply via 2 x 1.5V battery AA size (not supplied)

Features(TXS-606HT Transmitter):

• Dynamic microphone cartridge
• Channel 38 - Shared License
• Adjustable sensitivity
• Switchable transmitting power (high: 25mW/low: 2.5mW)
• LCD for group/channel, audio level and battery status
• Power supply via 2 x 1.5V battery AA size (not supplied)

Technical Specifications(TXS-606LT Transmitter):

• Transmitting power 25mW
• Audio frequency range 30-18,000Hz, ±3dB�
• Frequency stability ±0.005%
• Operating time > 8h
• Dimensions 61x106x27mm
• Weight 125g
