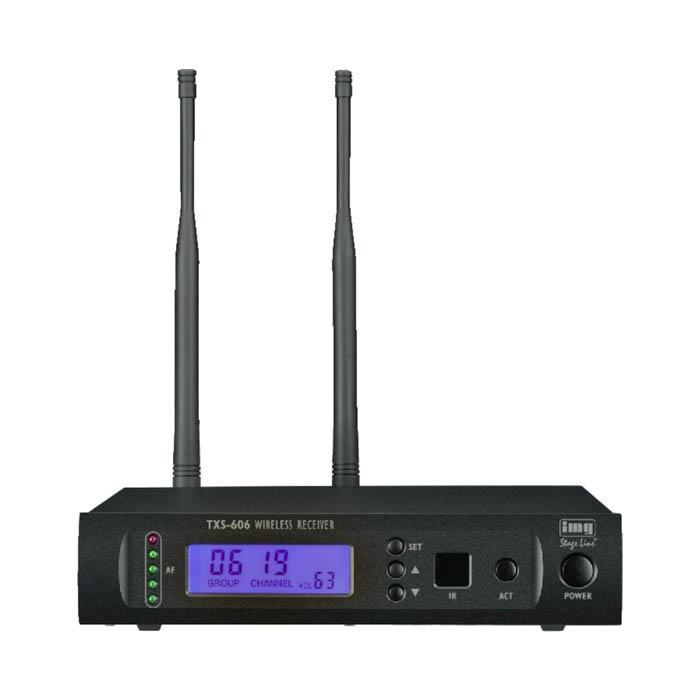

IMG Stageline TXS-606 Wireless UHF Receiver

Multifrequency receiver unit, with UHF PLL technology.

Features:

• Channel 38 - Shared License
• ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
• Automatic scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch can be adjusted
• LCD for group/channel, antenna A/B, RF transmitting level and AF audio level
• Additional LED level display for audio level
• XLR output and 6.3mm output
• Stable metal housing
• Supplied with PSU

Technical Specifications:

• Carrier frequency - Channel 38
• RF S/N ratio 105dB
• Audio frequency range 30-18,000Hz
• THD < 0.5%
• Dynamic range 120dB
• Audio output 350mV/600Ω (jack)
• 25mV/600Ω (XLR, bal.)
• Admiss. ambient temp. 0-40 °C
• Power supply via suppl. plug-in PSU
• Dimensions 212x45x180mm
• Weight 930g
