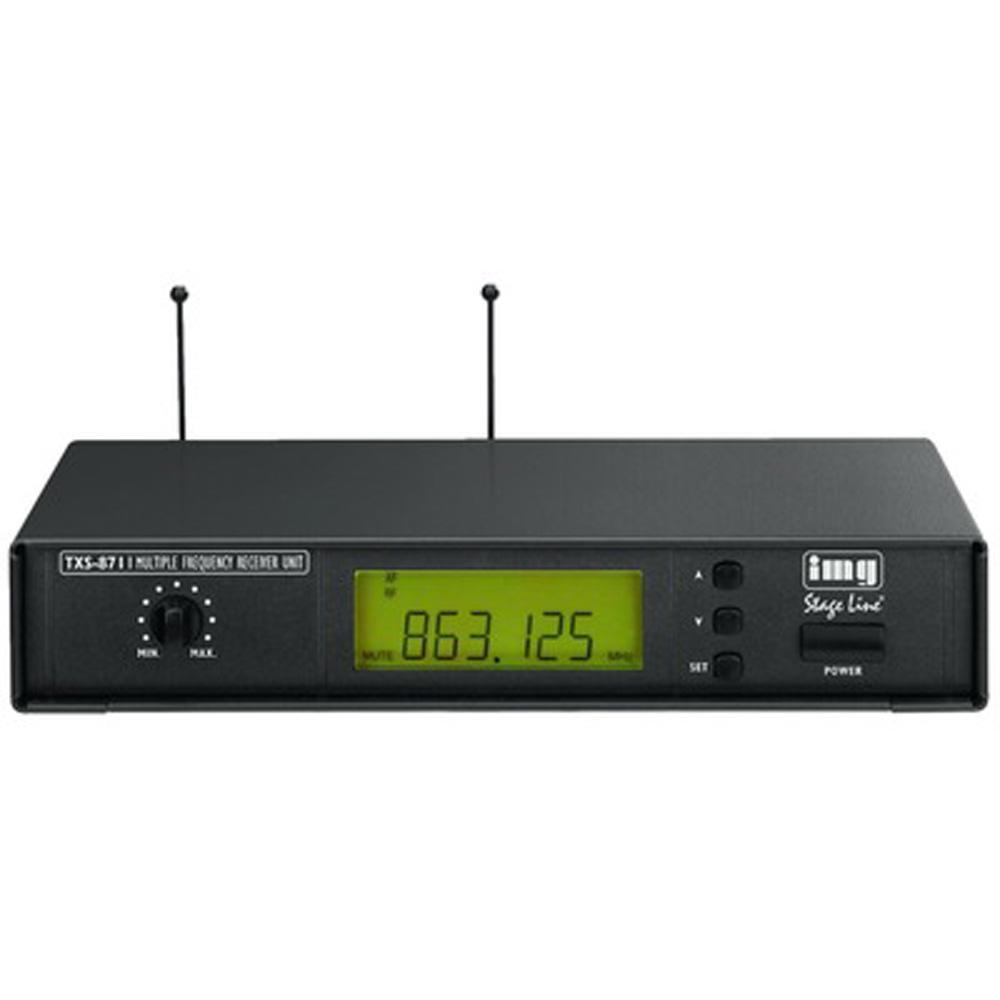

TXS-871 UHF Multi-Frequency Receiver Unit 863-865MHz

Features:

• 15 selectable UHF frequencies (863-865MHz)
• True diversity system with removable antennas (BNC connection)
• Automatic scan
• Pilot tone squelch, noise mute
• Selectable lock mode
• LCD for frequency, antenna A/B, RF transmitting level, AF audio level, battery status of the transmitter
• XLR output and 6.3mm output
• Supplied with PSU

Technical Data:

• Carrier frequency: 863.125-864.875MHz
• Audio frequency range: 40-18,000Hz
• THD: < 0.6%
• Dynamic range: > 105dB
• Audio signal: 900mV/1kΩ (jack) - 150mV/150Ω (XLR, bal.)
• Admiss. ambient temp.: 0-40 °C
• Power supply: via suppl. PSU
• Dimensions: 211x40x130mm
• Weight: 1,100g
