CM-LIVE Compact Mixer with Delay + USB/SD Player


£110.00 inc vat
£91.67 ex vat

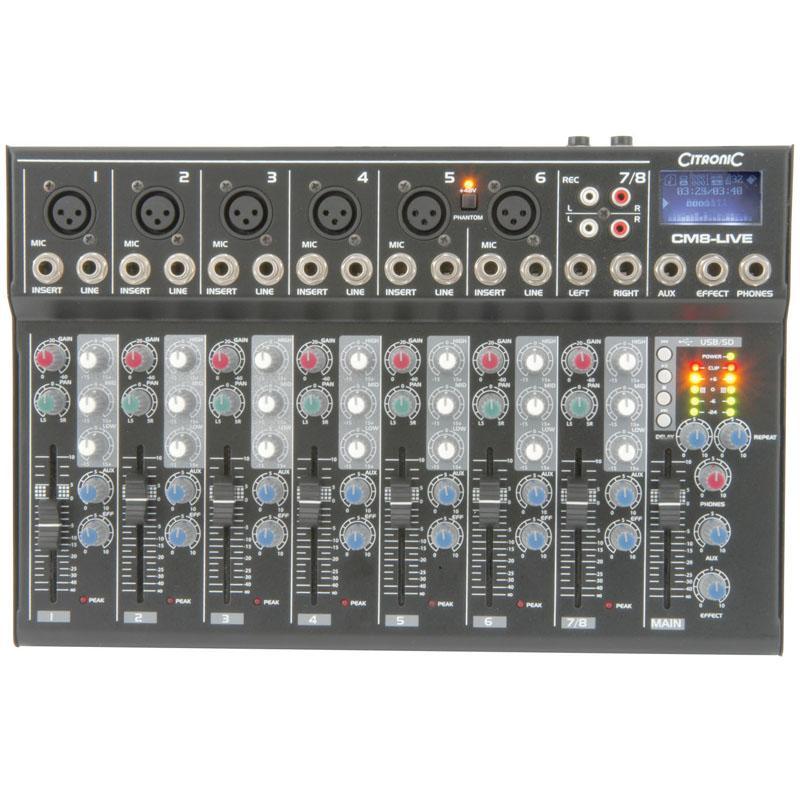

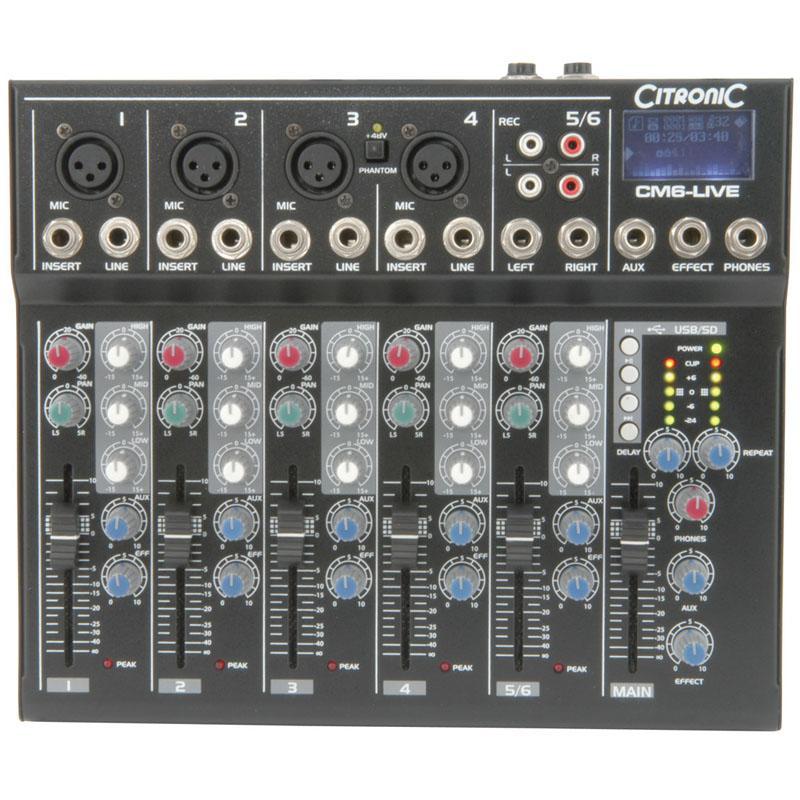

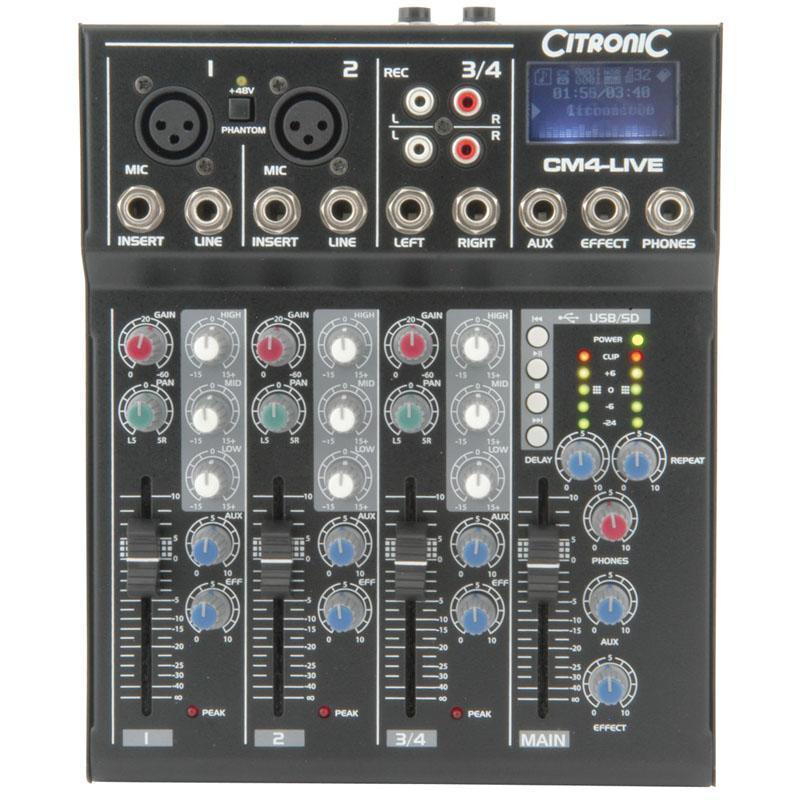

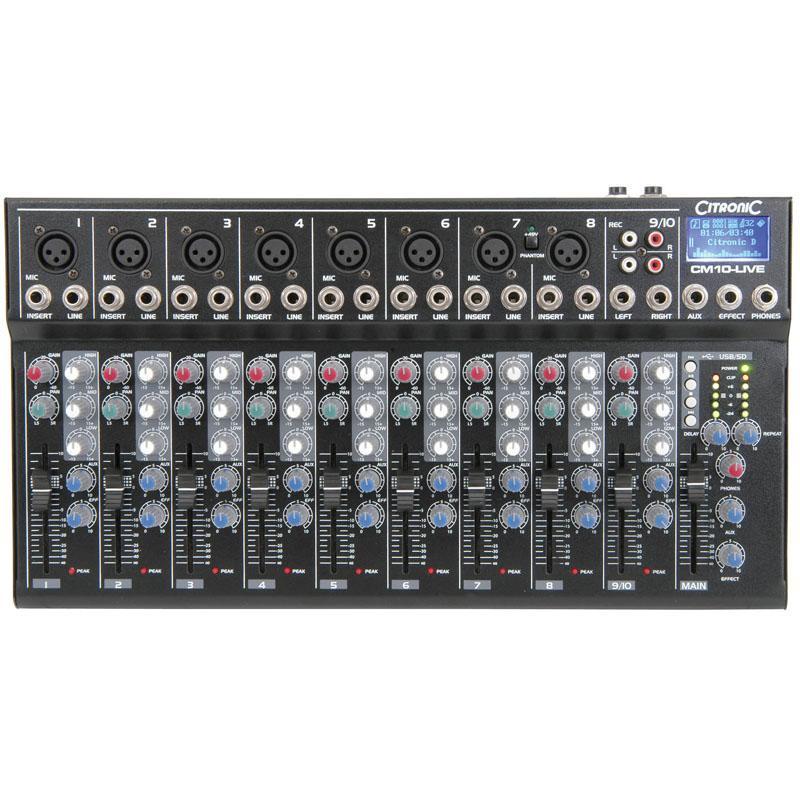

CM-LIVE Compact Mixer with Delay + USB/SD Player

The CM-LIVE Compact Mixer with Delay + USB/SD Player is a compact format live mixing console with mic/line inputs (jack/XLR) and a stereo line channel which can be fed from an internal USB/SD audio player. Mic/line channels have individual inserts and all channels have 3-band EQ, Aux and Effect controls. Phantom power of +48V is switchable to the XLR inputs for condenser microphones. Applications range from sub-mixing to main live PA console.


  • Compact, accessible design
  • Channel inserts for Mic/line inputs
  • Switchable +48V phantom power
  • 3-band EQ for each channel
  • Internal delay effect (or FX loop)
  • Integral USB/SD player
  • Rack-mount ears supplied with CM8 and CM10 models

Technical specifications:

  • Power supply 12Vac 1000mA (included)
  • Phantom power Switchable +48V (XLR inputs)
  • Frequency response: Inputs20Hz - 20kHz
  • Stereo input 6.3mm jack/RCA (-8 to +15dB / +13 to +60 parallel)
  • SNR: Mic inputs 120dB E.I.N.
  • SNR: Line inputs 95dB E.I.N.
  • SNR: Stereo input 96dB E.I.N. (or 104dB E.I.N. in parallel)
  • EQ: High10kHz, ±15dB
  • EQ: Mid 700Hz, ±15dB
  • EQ: Low 50Hz, ±15dB
  • Outputs: Main (L+R) 6.3mm jack (+28dBu balanced / +22dBu unbalanced)
  • Aux send, Effects send, Tape out unbalanced 6.3mm jack (+22dBu)
  • Phones output +15dBu stereo 6.3mm jack
