The DAP-Audio Compact 9.2 is a versatile 1U installation mixer designed to provide maximum audio flexibility while remaining simple and intuitive to operate. Ideal for pubs, schools, restaurants, retail venues and public buildings, it allows non-technical users to control professional audio systems with confidence. With support for multiple microphones, line sources and two independent output zones, the Compact 9.2 offers a reliable and user-friendly solution for multi-area audio distribution.

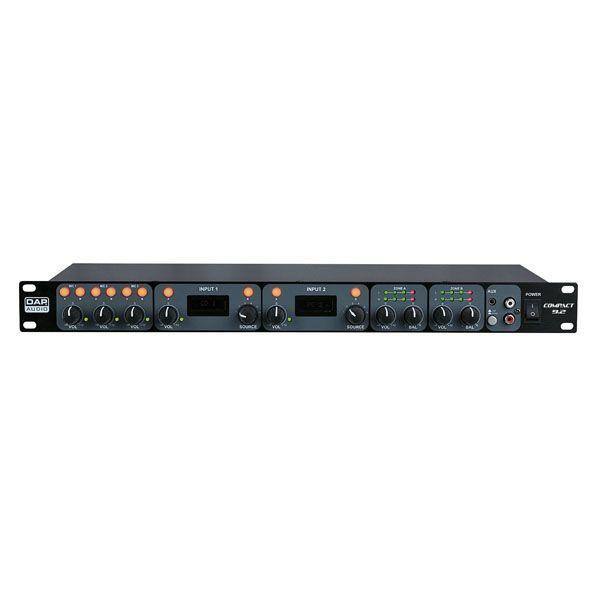

Housed in a compact 1U 19" rack-mount chassis, the Compact 9.2 is built for permanent installations. All technical settings -- including gain, EQ, phantom power and system configuration -- are located on the rear panel, allowing installers to lock in optimal performance. Once configured, the front panel presents only essential controls: volume adjustment and input selection, reducing the risk of incorrect operation. A clear front-panel display shows selected input sources with user-friendly labels.
| Specification | Details |
|---|---|
| Input Channels |
3 × Microphone (combo XLR/Jack) 6 × Line (RCA) 1 × Mobile (3.5 mm jack) |
| Output Channels | 2 × Balanced Master Outputs (XLR) |
| Zones | 2 Independent Zones |
| Master EQ | 80 Hz / 2.5 kHz / 12 kHz, ±6 dB |
| Frequency Response | 20 Hz - 20 kHz |
| THD | < 0.01% |
| Power Supply | 2 × 15 V AC, 50 Hz (adapter included) |
| Power Consumption | 6 W |
| Dimensions (W × H × D) | 481 × 44 × 175 mm |
| Weight | 2.2 kg |
The DAP-Audio Compact 9.2 excels in environments where reliability, flexibility, and simplicity are essential. Installers can fine-tune the system once, while everyday users enjoy straightforward operation without the risk of misconfiguration. With dual-zone capability, multiple input sources, and a convenient front-panel connection for mobile devices, it is an ideal choice for professional audio installations operated by staff with minimal technical training.
Q: Is the Compact 9.2 suitable for non-technical users?
A: Yes -- once configured by an installer, only volume and input selection are available on the front panel.
Q: Can I connect a smartphone or tablet directly?
A: Yes -- the front input can be switched to mobile mode to correctly match smart device output levels.
Q: Does it support multiple audio zones?
A: Yes -- it features two independent zones with separate input selection.
Q: Is it rack-mountable?
A: Yes -- it fits a standard 19″ rack and occupies just 1U of space.
