IMG Stageline MXR-120PRO 12-Channel Mixer USB BT DSP
x
#20.0620

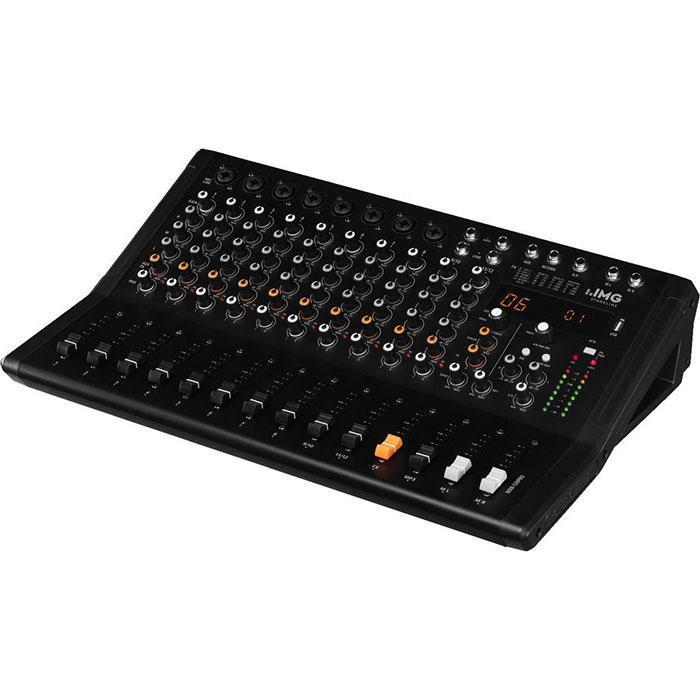

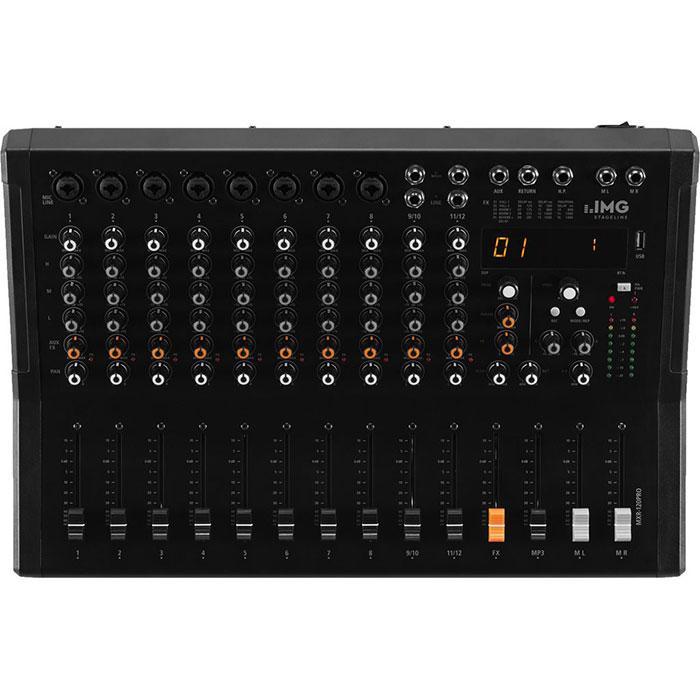

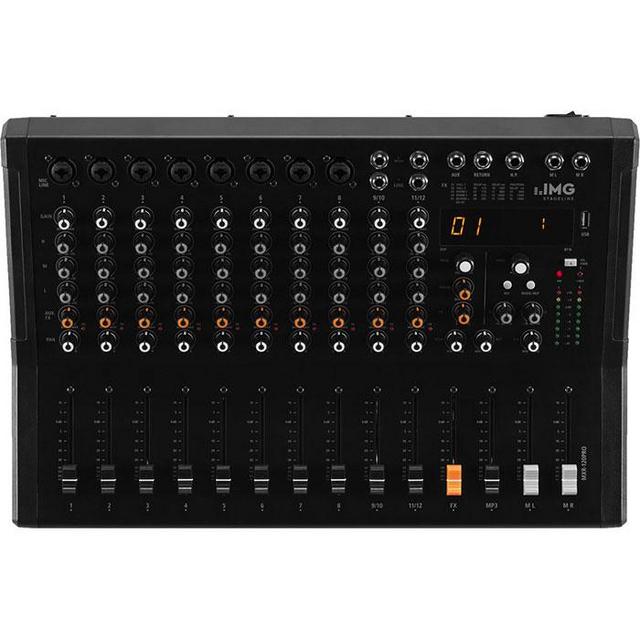

IMG Stageline MXR-120PRO 12-Channel Mixer USB BT DSP
The MXR-120PRO has 8 x Mono MIC/Line combo inputs with 48V phantom power for the mics, 2 x stereo (2 channel) input, a bluetooth receiver, USB MP3 player on the top of the unit, USB full duplex in/out of the rear of the unit, 16 x DSP effects and 5 band equaliser.
Features:
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 8 mono input channels with gain control, 3-way equalizer and pan pot
- 2 stereo input channel with 3-way equalizer and balance control
- MP3 player
- USB interface
- Bluetooth receiver
- 16 different DSP effects
- Adjustable aux return input and FX send output
- +48 V phantom power, can be activated as required
- Adjustable headphone output
- Stereo LED level display
Specifications:
- Input channels 12
- Number of mix/mono 8
- No. of stereo 2
- Mic input 0.6 mV, bal. 8 x XLR
- Line input 80 mV (stereo), 2 x 6.3 mm jack L/R 7 mV (mono), 8 x 6.3 mm jack
- Aux input 340 mV, 1 x 6.3 mm jack L/R
- Master output 760 mV, 1 x 6.3 mm jack L/R
- Effect send 9 V, 1 x 6.3 mm jack
- Headphones ≥ 8 Ω, 1 x 6.3 mm jack
- USB yes
- Bluetooth yes
- Frequency range 20-20,000 Hz
- THD < 0.03%
- S/N ratio > 75 dBA
- Equalizer bass ±15 dB/80 Hz
- Equalizer midrange ±15 dB/2.5 kHz
- Equalizer treble ±15 dB/12 kHz
- Phantom power +48 V
- Power supply ~ 230 V/50 Hz/30 VA
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power consumption, operation 30 VA
- Admiss. ambient temp. 0-40 °C
- Width 484 mm
- Height 93 mm
- Depth 320 mm
- Weight 4.4 kg
Item has been discontinued
