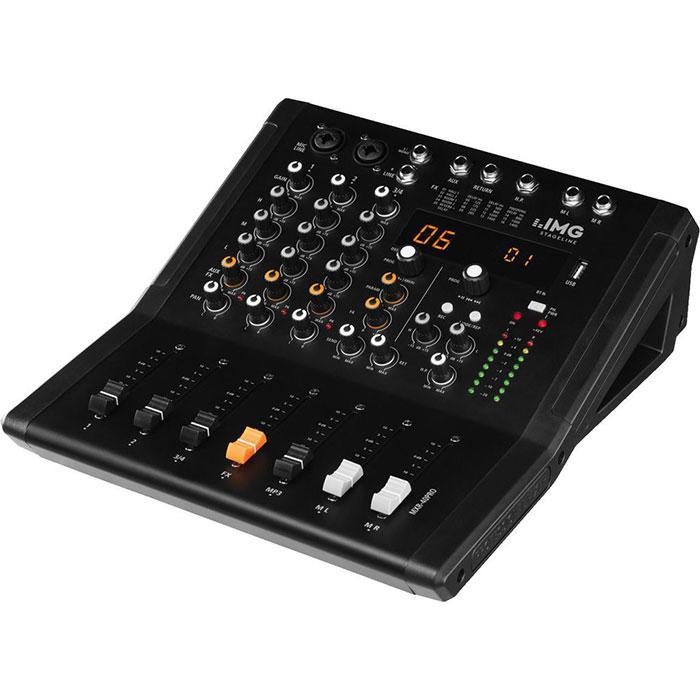

MXR-40PRO Professional 4-channel Audio Mixer

Professional 6-channel audio mixer, with DSP effect unit, integrated MP3 player and Bluetooth receiver.

Features:

• Integrated USB audio interface (will be identified and addressed as an external sound card)
• Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
• 2 mono input channels with gain control, 3-way equalizer and pan pot
• 1 stereo input channel with 3-way equalizer and balance control
• MP3 player
• USB interface
• Bluetooth receiver
• 16 different DSP effects
• Adjustable aux return input and FX send output
• +48 V phantom power, can be activated as required
• Adjustable headphone output
• Stereo LED level display

Specification:

• Input channels - 4
• Number of mix/mono - 2
• No. of stereo - 1
• Mic input - 0.6 mV, bal. 2 x XLR
• Line input - 80 mV (stereo), 1 x 6.3 mm jack L/R, 7 mV (mono), 2 x 6.3 mm jack
• Aux input - 340 mV, 1 x 6.3 mm jack L/R
• Master output - 760 mV, 1 x 6.3 mm jack L/R
• Effect send - 9 V, 1 x 6.3 mm jack
• Headphones - ≥ 8 Ω, 1 x 6.3 mm jack
• USB - yes
• Bluetooth - yes
• Frequency - range 20-20,000 Hz
• THD - < 0.03%
• S/N ratio - > 75 dBA
• Equalizer bass - ±15 dB/80 Hz
• Equalizer midrange - ±15 dB/2.5 kHz
• Equalizer treble - ±15 dB/12 kHz
• Phantom power - +48 V
• Power supply - ˜ 230 V/50 Hz/20 VA
• Mains voltage - ~ 2 V
• Mains frequency - 50 Hz
• Power consumption, operation 15 VA
• Admiss. ambient temp. 0-40 °C
• Width 282 mm
• Height 93 mm
• Depth 320 mm
• Weight 2.7 kg
