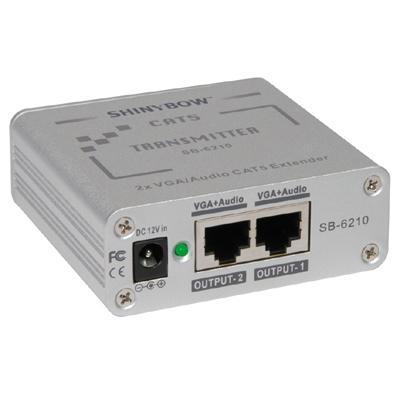

SB-6210 Cat 5 VGA/Audio Transmitter With Dual Outputs

The SB-6210 Cat 5 VGA/Audio Transmitter With Dual Outputs is compact transmitter for driving VGA-RGBHV signals and stereo audio signals over long distances to a receiver/repeater unit. It is highly reliable and easy to install.

Features:

• Easy to install and highly reliable
• Inputs via HD-15 VGA socket and stereo 3.5mm jack socket
• CAT 5 (digital) dual RJ-45 outputs to feed a receiver and a repeater and receiver units
• Brushed aluminium case with mounting brackets
• LED power ON indicator
• Supplied with mains adaptor

Technical specification:

• Power supply: 12Vdc, 300mA
• Audio input level max: 3.1V (p-p)
• Distance max. : SXGA (1280x1024): 150m
• Distance max. : VGA (640x480): 330m
• Distance max. : XGA (1024x768): 200m
• Distortion: 68dB SFDR @ 5MHz 200 ohms load
• Slew rate: 2000V/µs
• Video bandwidth: 400MHz, 13dB full power
• Video input: 1.45V (p-p) max.
• Dimensions: 78.5 x 66 x 29mm
• Weight: 174g
