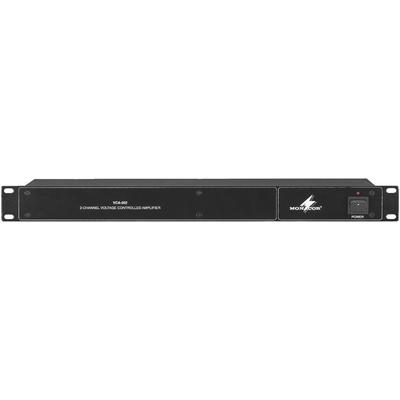

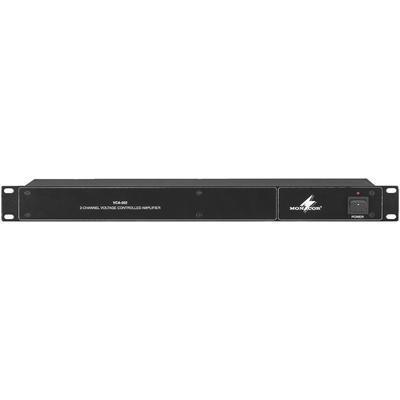

Monacor VCA-202 Voltage Controlled 2 Channel VCA Volume Control

#17.1880

£89.00 inc vat
£74.17 ex vat
delivery time Want it tomorrow?
Order within -:- and choose next-day delivery
Voltage-controlled 2-channel VCA volume control

  • 2-channel mono or stereo operation
  • Remote control for each channel via wall-mount volume control VCA-202RN or via lin. 10kΩ potentiometer (not supplied), control voltage: 0-10V DC current
  • 10V voltage output for potentiometer
  • Servo-balanced inputs and outputs
  • 482mm (19") rack installation, 1RS

    For the remote volume control of PA systems in large areas (e.g. churches, workshops). The volume control VCA-202 is inserted between preamplifier and power amplifier.

    The surface-mount housing ATT-300 can be used for universal mounting of the potentiometers.

    Technical Specifications:

    • Line input, mono 1V/30kΩ
    • Input control voltage 0-10V DC current /100kΩ
    • Line output, mono 1V/600Ω
    • Output control voltage 10V DC current /5mA
    • Frequency range 20-20,000Hz
    • THD 0.1%
    • S/N ratio 70dB
    • Power supply 230V/50Hz/10VA
    • Admiss. ambient temp. 0-40 Degrees C.
    • Dimensions 482x48x105mm, 1RS
    • Weight 1.5kg

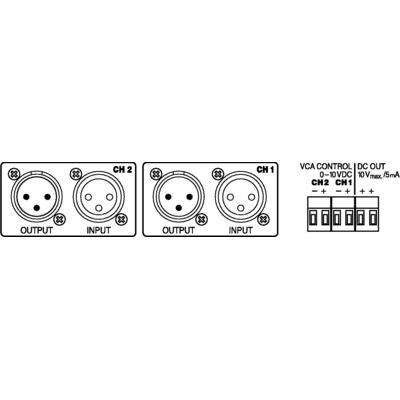

    • Line input, mono 2 x XLR, bal.
    • Input control voltage screw plug-in connection
    • Line output, mono 2 x XLR, bal.
    • Output control voltage screw plug-in connection
