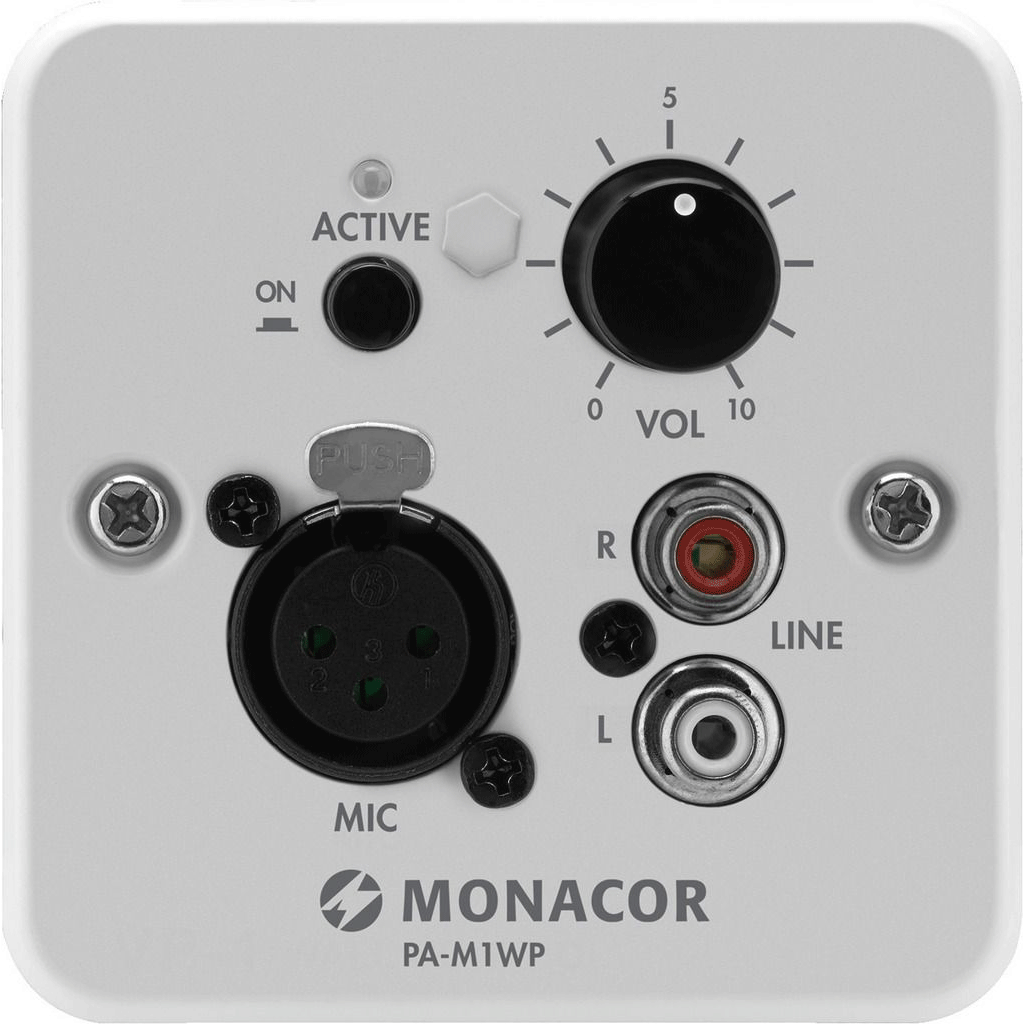

PA-M1WP Wall Module for PA-M224 or PA-M412

For local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412.

Features:

• Intended application: volume control of 1 zone, local insertion of audio signals
• 2 x RCA jack for line signals
• Microphone connection via 3-pole XLR jack
• 14 V phantom power, to be activated as required
• Volume control
• Connection to PA-M224 or PA-M412 and power supply via RJ45 jack and Cat. 5 network cable (copper, supplied w/o cable), cable length up to 200 m
• Matching flush-mounted housing ATT-300C is available at option

Specification:

• Type remote control of 1 zone
• Colour white
• Material plastic
• Suitable for PA-M224, PA-M412
• Power supply via PA-M224, PA-M412
• Dimensions 80 x 80 x 50 mm
• Weight 90 g
• Connections 1 x XLR (microphone), 1 x RCA L/R (line), 1 x RJ45
• Other features 14 V phantom power
• Packing unit 1
