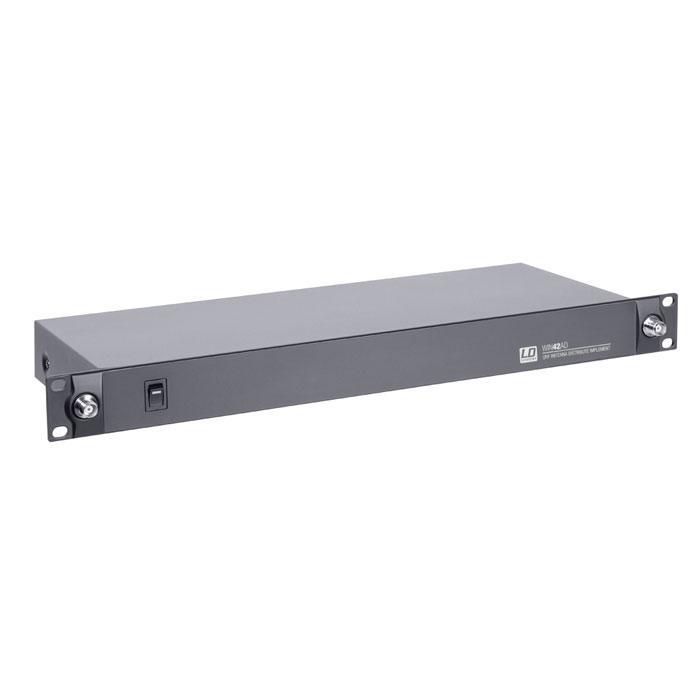

LD Systems WIN 42 AD 4-Way Antenna Split Box

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500.000 and 900.000 MHz.

Specification:

• Product type - Wireless Microphone System Accessories
• Type - Antenna Splitter
• Frequency band - 500 - 900 MHz
• Frequency bandwidth - 400 MHz
• Signal gain - 3 dB
• Antenna inputs - 2
• Antenna input connection - TNC
• Input impedance - 50 Ohm(s)
• Power supply for antenna booster - 9 V

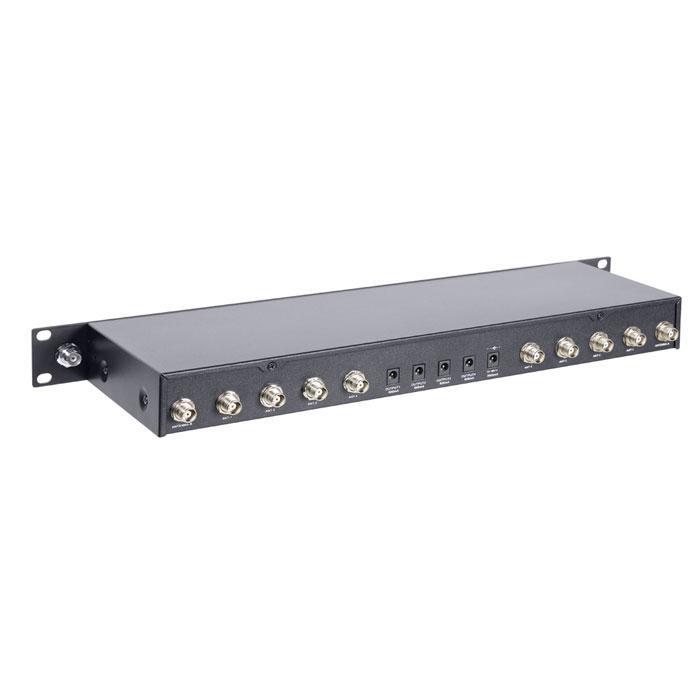

• Antenna outputs - 4 x 2
• Antenna output connection - TNC
• Output impedance - 50 Ohm(s)
• Power supply for radio receiver - 4 x 12 - 18 V DC V
• Operating voltage - 12 - 18 V DC, 3A
• Operating voltage - 12 V DC - 18 V DC (100 mA)
• Width - 482 mm
• Height - 44.4 mm
• Depth - 160 mm
• Weight - 4,8 kg

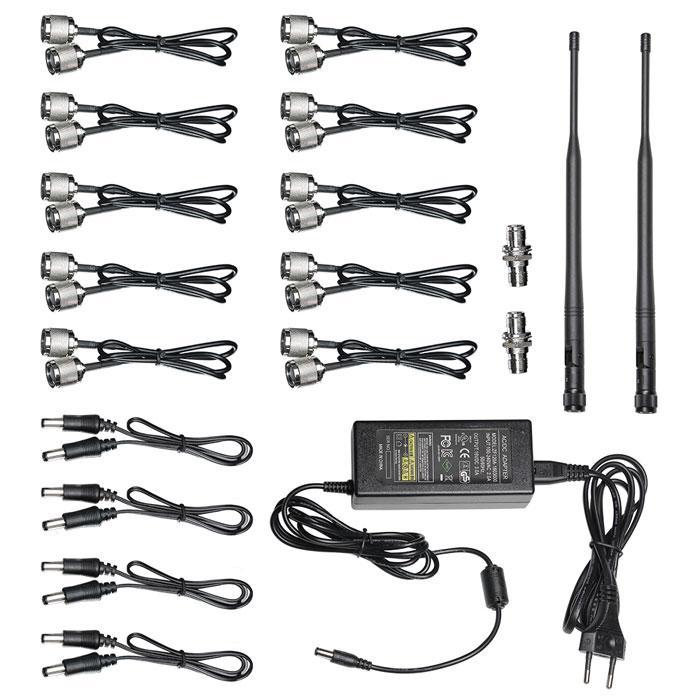

• Accessories (included) - 10 x TNC cable, 0.5m , 2 x antenna , 2 x TNC adapter , 4 x DC cable, 0.5m , 4 x Output 600 mA , Plastic case , power supply
