120W Slave Amplifier - 100V Line & 8 Ohms

The Slave Amplifier is designed especially for use with A series mixer amplifiers and features a front panel master volume, signal and peak LEDs for level control. The amplifier is powered by mains. A 19" rack-mounting ears is included.

Features:

• For use with A series mixer amplifiers or to drive 100V line or 8 Ohms speakers from any line level source
• RCA signal input and output allow signal chaining for large multi-slave systems

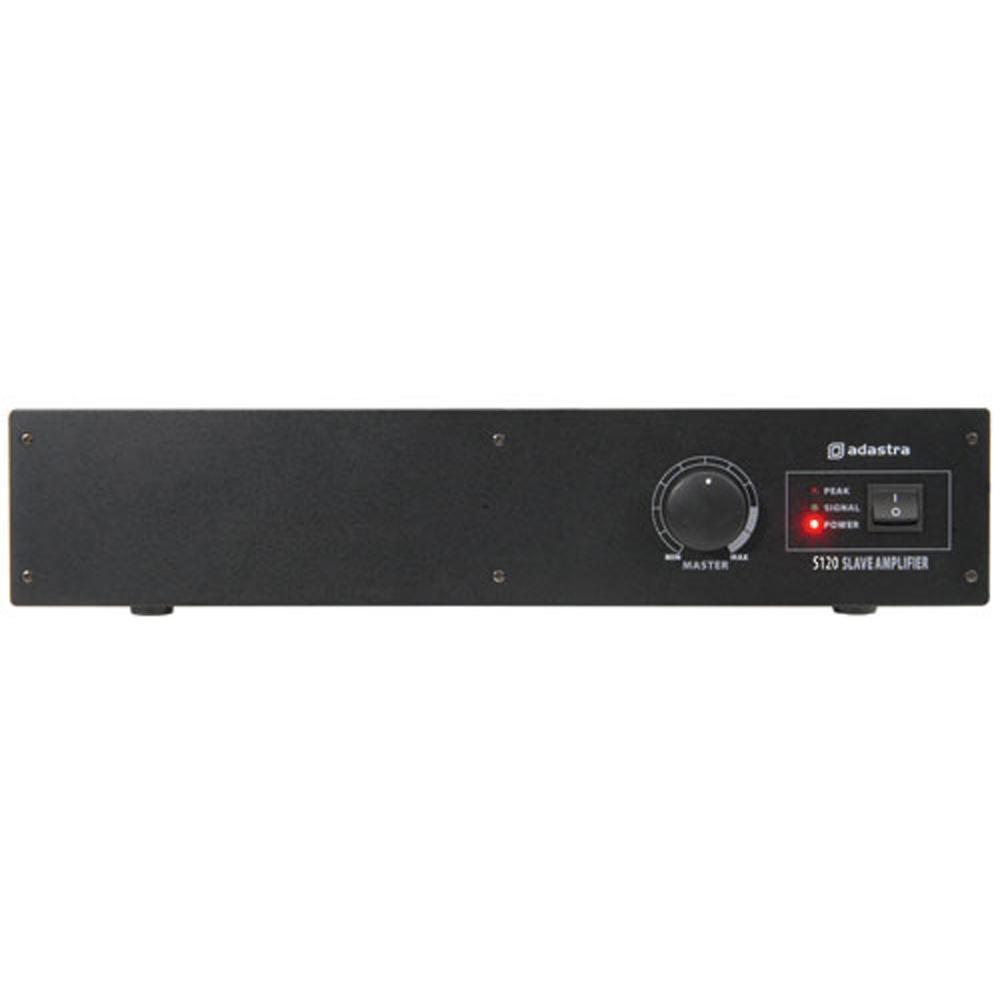

• Front panel Master volume, signal and peak LEDs for level control
• Mains and DC operation
• 19" rack-mounting ears included (2U)
• Peak and signal LEDs
• 8 ohms and 100V line outputs

Technical specification:

• Power: mains230Vac, 50Hz
• Frequency response100Hz - 12kHz (±3dB)
• Input sensitivity: Line (unbalanced)300mV
• Output: Line1V @ 600 ohms
• Outputs: Speaker100V and 8 ohms
• Signal to noise ratio>75dB
