5 Zone Paging Mic for RZ45 Audio Matrix

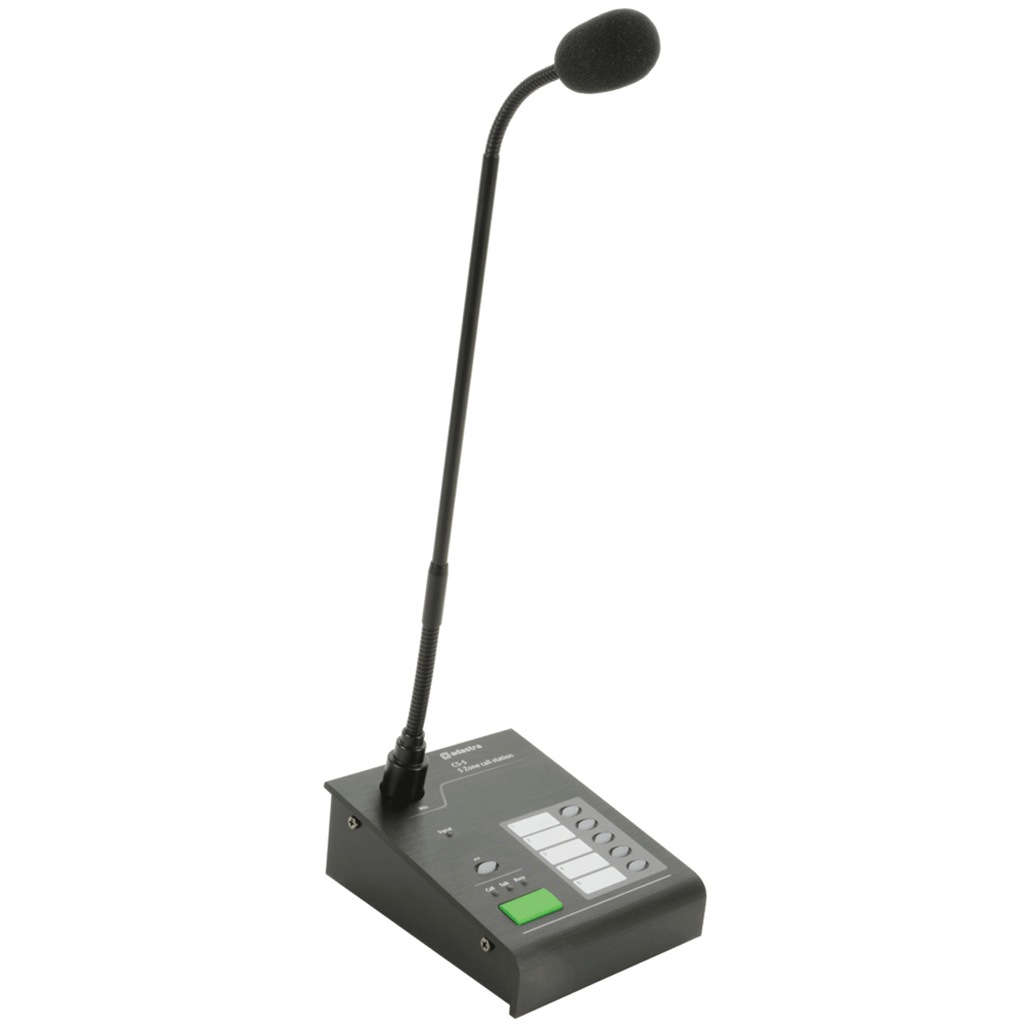

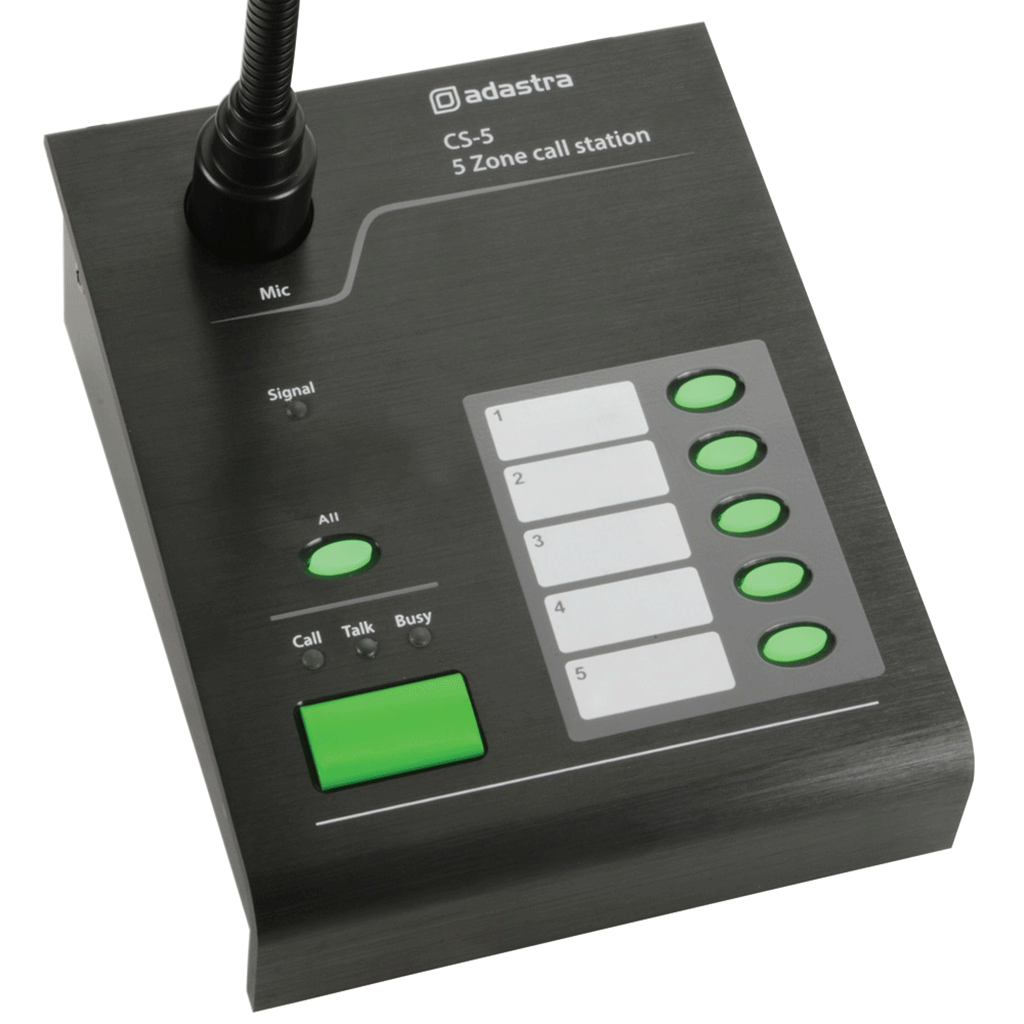

A paging microphone with call station base, to be used with the RZ45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an aux audio input for pre-recorded messages and alerts. Includes an RJ45 patch cable to connect the mic and audio matrix, conveniently passing signal and power via one CAT5 lead.

Features:

• For use with the RZ45 audio matrix (953.045UK sold separately)
• Assignable to individual or multiple zones
• 8 selectable chime settings
• 3.5mm aux input
• Up to 1km remote wiring over CAT5
• Supplied with 1m RJ45 patch lead

Specifications:

• Power supply 24Vdc, 500mA from RJ45 or optional adaptor
• Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
• Capsule Back electret condenser
• Polar pattern Cardioid
• Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
• Connectors XLR, RJ45 to RZ45, 24Vdc power jack, 3.5mm aux in
• Frequency response : -3dB 150Hz - 22kHz
• Input level Mic: -46dBV, Aux: -10dBV
• Input impedance Mic: 600 Ohms, Aux: 50k Ohms
• Output leve 110dBV
• Output impedance : balanced 600 Ohms
• S/N ratio -60dB (all channels selected)
• Interface RS-485 control
• Zone assign 5 zones, any combination
• Dimensions 460 x 140 x 115mm
• Weight 670g
