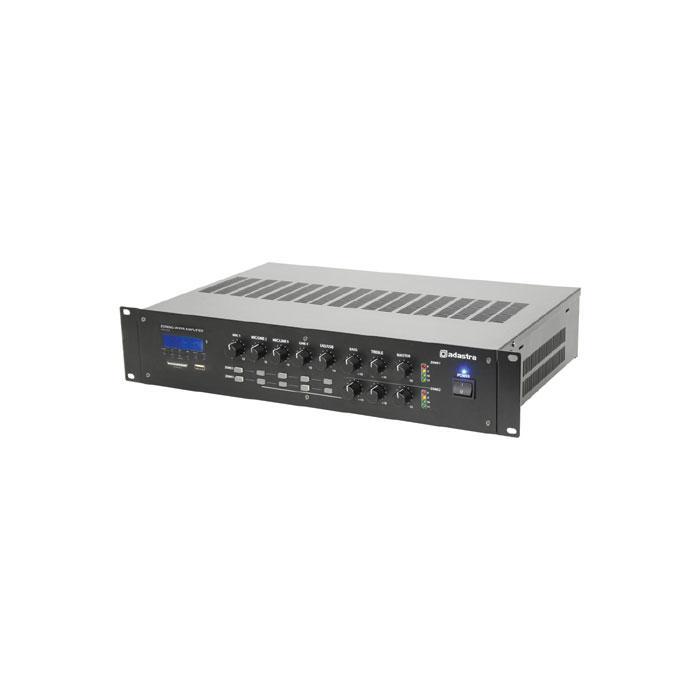

Adastra 2-Zone Mixer-Amplifier + USB/SD/FM/Bluetooth

Mixer-amplifier with 2 separate 120W outputs to 100V or 4/8 Ohms speakers. Inputs for mic, 2 x mic/line and 2 line inputs with an integral USB/SD/FM player and Bluetooth receiver can be enabled independently to either of the 2 zones. Mic 1 channel has a variable override and switchable phantom power for use with condenser microphones. Designed for installations where independent paging and audio to 2 separate zones is needed.

Features:

• Integral USB/SD/FM audio player
• Internal Bluetooth receiver
• 100V or 4/8 Ohms operation
• Can be configured as a stereo 100V amplifier
• 5 input channels
• Switchable +20V phantom power
• Switchable priority for channel 1

Specification:

• Power supply - 110-230Vac, 50/60Hz (IEC)
• Power : output - 2 x 120W rms
• Audio source - USB/SD/FM/BT audio player
• Inputs - 1 x mic (XLR), 2 x mic/line (jack), 2 x line (twin RCA)
• Zone outputs: line - 2 x RCA
• Zone outputs: speaker - 2 x terminal outputs 100V/8 Ohms/4 Ohms/com
• Phantom power - +20V switchable to Mic.1 XLR
• THD - <0.76% @ 1kHz
• Input impedance - 1k Ohms (mic/line)
• Input sensitivity - -11dB (line), -46dB (mic)
• SNR - 84dB (line), 82dB (mic)
• Bluetooth version - 2.1
• Frequency response - 100Hz - 20kHz
• Dimensions - 483 x 320 x 88mm
• Weight - 11.24kg
