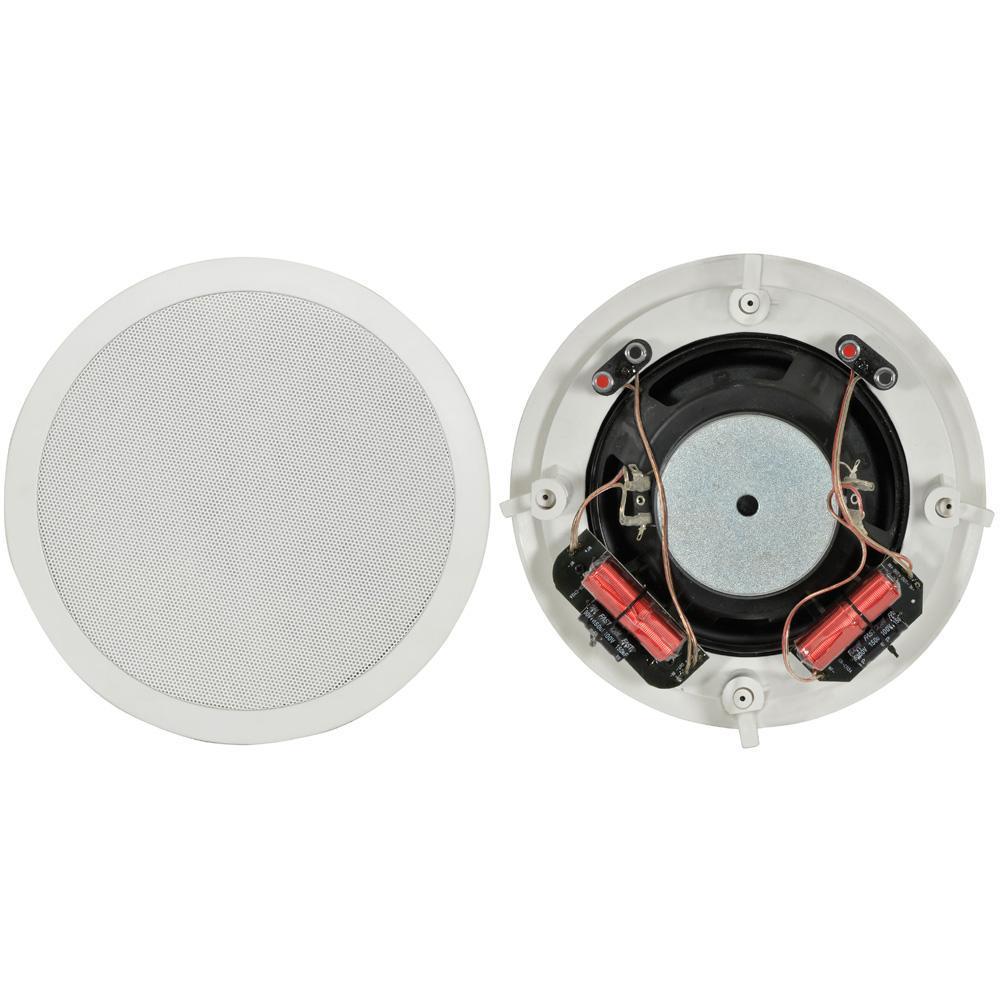

In Ceiling 8" Subwoofer 160W 8 or 4 Ohm
#952.544UK
In Ceiling 8" Subwoofer 160W 8 or 4 Ohm
Beef up your In-Ceiling Sound System wih this 160W Subwoofer. Using a Dual Coil Speaker means you can connect this speaker in-line with your Stereo Ceiling Speakers giving you All-Round Sub Bass.
The 2 pairs of spring terminals can be connected together to provide a 4 Ohms subwoofer with 80W handling. Alternatively, a stereo amplifier can be connected to each terminal with 8 Ohms load each up to 40W and then in parallel to left and right ceiling speakers to create a 2.1 system. Installing close to ceiling edges or corners will add warmth and power to thin sounding ceiling speakers for full range background music delivery.
Features:
- Low profile and space saving subwoofer
- Dual coil for stereo connection
- Coils can be paralleled for 4 Ohms operation
- Dual passive filters for sub focus
- Two spring-loaded terminal connections
- Fitted with "dog-ear" mounts
Specifications:
- Driver 200mmŲ (8") coated paper
- Voice coil 35mmŲ (dual wound)
- Frequency response 39 - 350Hz
- Impedance 2 x 8 Ohms or 1 x 4 Ohms
- Power handling : rms 2 x 40W or 1 x 80W
- Power handling : max. 2 x 80W or 1 x 160W
- SPL @ 1W/1m 82dB
