Remote 5-Zone Audio Matrix with Bluetooth

#953.045UK

£379.98 inc vat
£316.65 ex vat
delivery time Want it Wednesday, 3rd Apr?
Order within -:- and choose next-day delivery

Remote 5-Zone Audio Matrix with Bluetooth

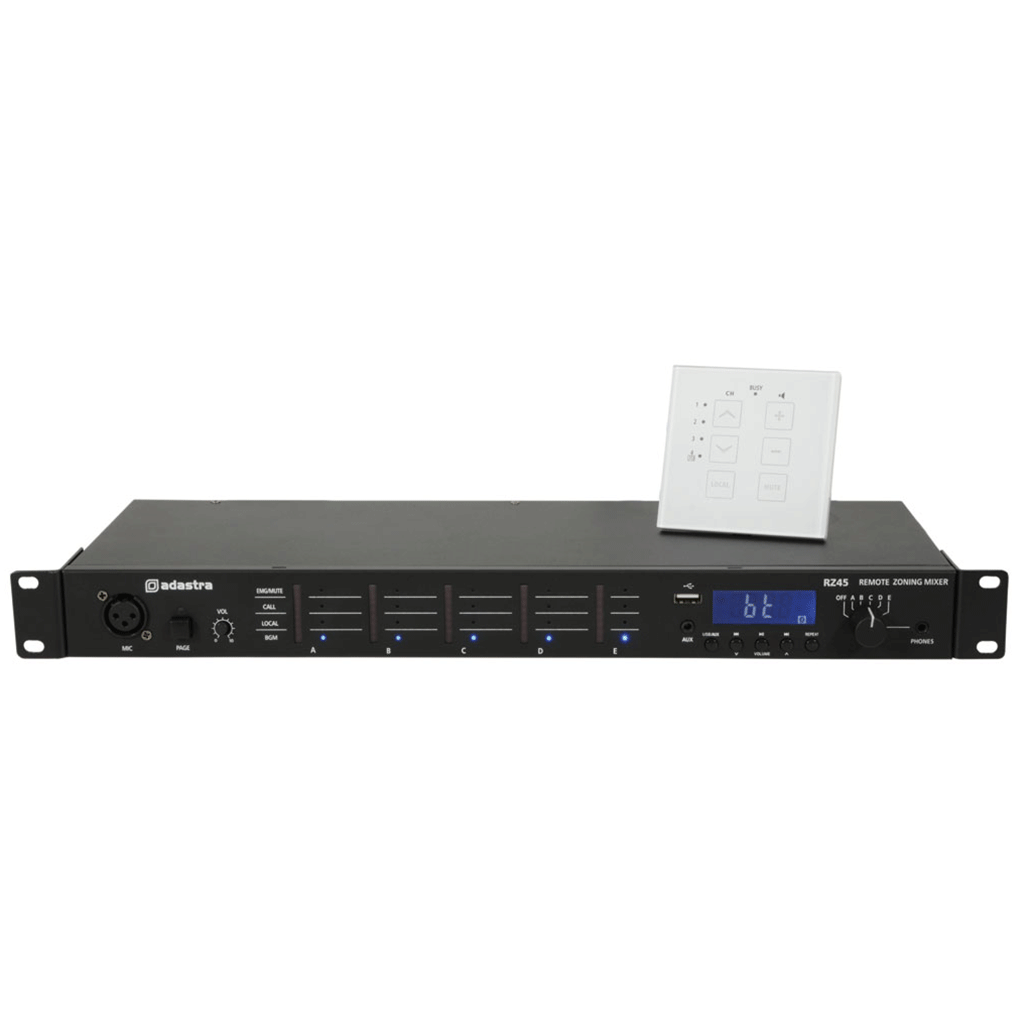

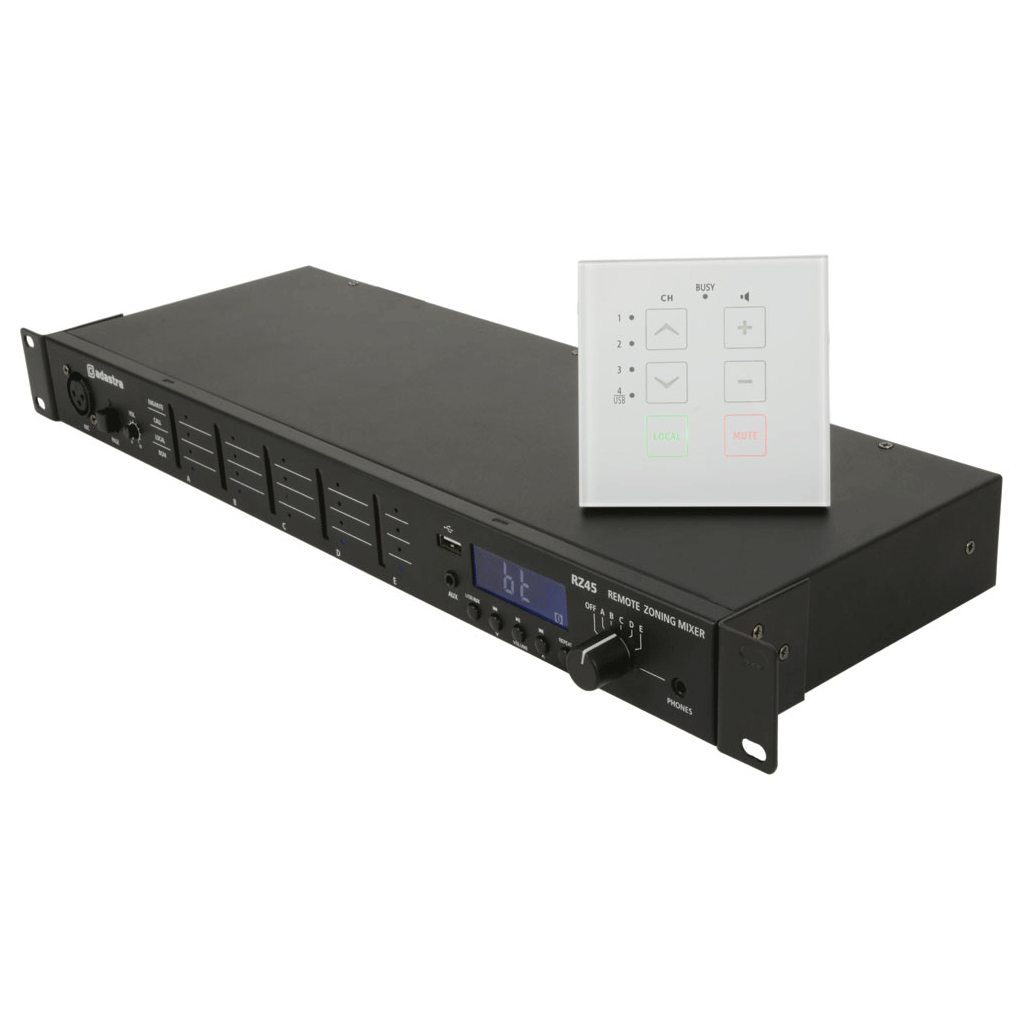

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.

Features:

  • Up to 5 remotely operated zones
  • Remote wiring via standard network type cable
  • 4 selectable input sources or local audio to any zone
  • Inbuilt USB/BT audio player
  • Emergency mute and audio in contacts
  • Supplied with one touch remote wall plate (expandable up to 5)
  • Bluetooth with programmable ID

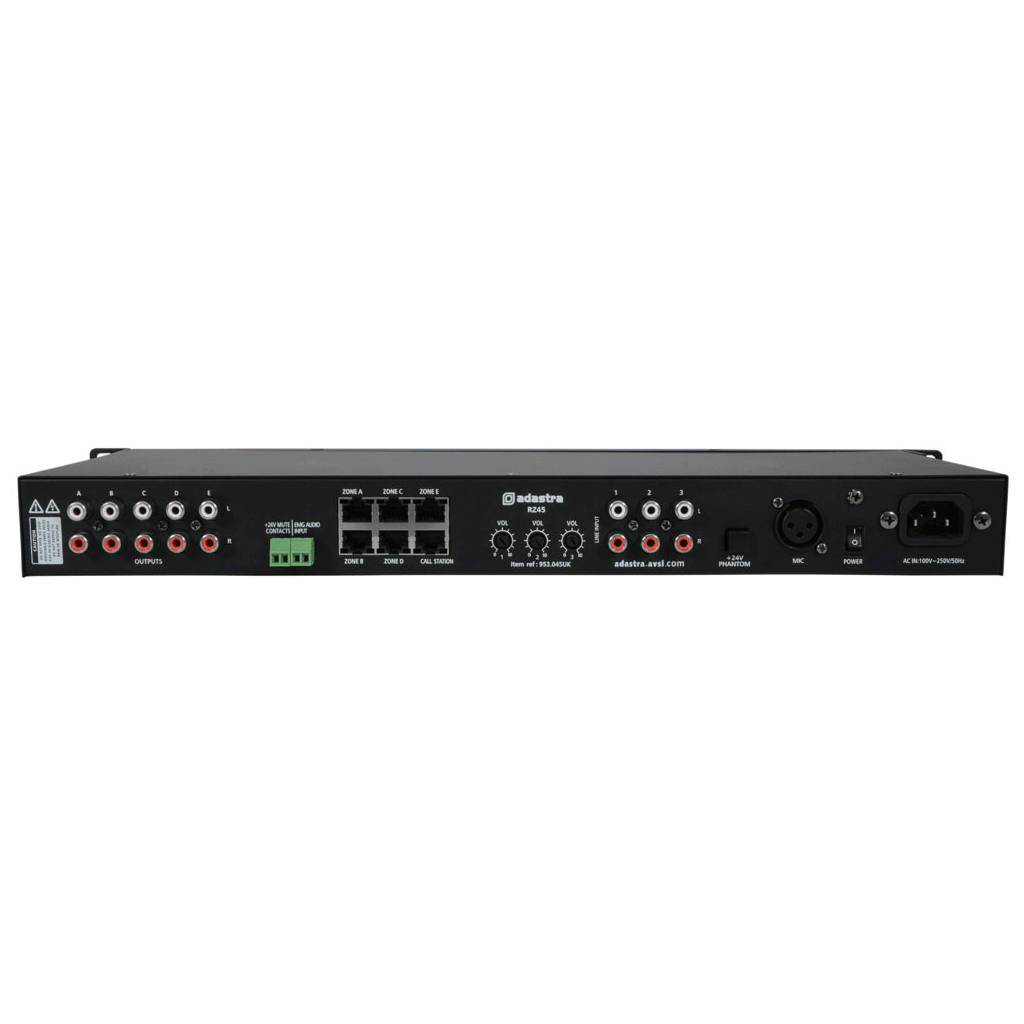

Specifications:

  • Power supply 100-240Vac, 50/60Hz (IEC lead included)
  • Fuse T1AL
  • Audio source USB/Bluetooth media player
  • Bluetooth versionv 2.0
  • Inputs Paging mic. (XLR) + 3 x stereo line (RCA)
  • Microphone : input sensitivity -41dBV
  • Line input : sensitivity -12.5dBV
  • Call station input : sensitivity +4dBV
  • Emergency control 24V mute contacts and emergency audio input
  • EMG input: sensitivity -10dBV
  • Signal to noise ratio : mic 65dB
  • Signal to noise ratio : line 73dB
  • Outputs 5 x stereo zones (RCA)
  • Output impedance : line 600 ohms
  • Monitor outputs Stereo 3.5mm headphone jack (assignable)
  • Phantom power +24V switchable for paging mic.
  • Remote control connection 8P8C (RJ45)
  • Frequency response : ±3dB 20Hz - 20kHz
  • Attenuation -30dB (paging)
  • Dimensions 483 x 177 x 44mm
  • Weight 1.76kg
