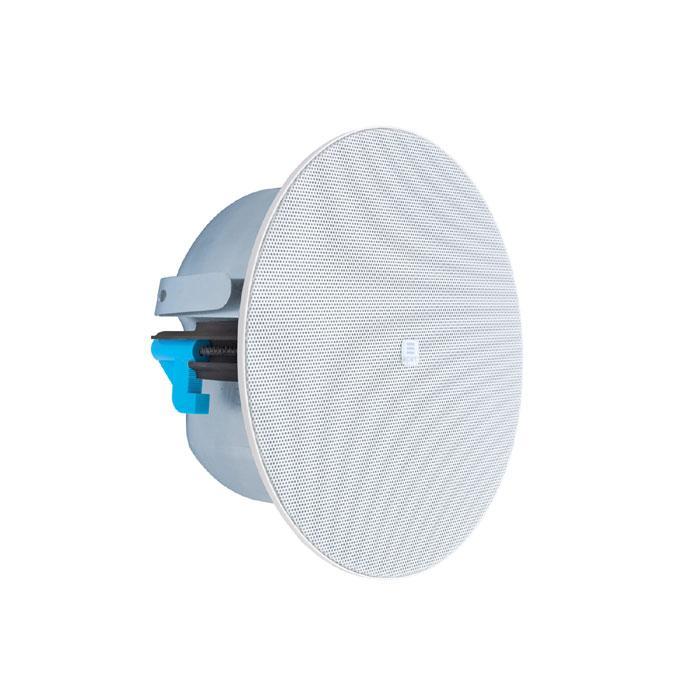

Pair Apart Audio CM20DTS 4.25" 100V Line Ceiling Speakers

The versatile CM20DTS 4.25" two-way design built-in ceiling loudspeaker produces a dynamic and warm sound ideal for high-quality background music and voice reproduction. The back can with only 83.5mm (3.287") built-in depth is probably the shallowest in his kind. The uncompromised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100 volt power tapping selector on the front and offers 16 ohms connectivity. The thin edge grille with integrated neodymium grille fixing magnets will blend this top-notch loudspeaker in any design environment.

Specification:

• Outside Diameter - 223 mm
• Depth - 84 mm
• Cutout - 193 mm
• Installation Grip Range - 3 - 41 mm
• Loudspeaker System - 2-way
• Woofer Size - 4.25 inch
• Woofer Cone Material - Coated Paper
• Tweeter Size - 1 inch
• Mounting System - 2 Screws
• 100V Transformer Power Taps - 20 - 10 - 5 - 2.5 watts
• 70V Transformer Power Taps - 20 - 10 - 5 - 2.5 - 1.25 watts
• Impedance - 16 ohms
• Low Impedance Dynamic Power - 60 watts
• Low Impedance RMS Power - 40 watts
• SPL 1W/1m - 88 dB
• Max SPL 1M - 104 dB
• Frequency Response - 80 - 20K Hz
• Main Construction Material - ABS Plastic
• Grille Main Material - Steel
• IP Rating - Indoor Use Only
• Applicable Low Impedance - Yes
• Applicable in 100V - Yes
• Horizontal Dispersion Angle 1000 Hz - 180°
• Vertical Dispersion Angle 1000 Hz - 180°
• Closest RAL colour (subject to deviations) - RAL9010
• Net Weight Product - 2.05 kg
