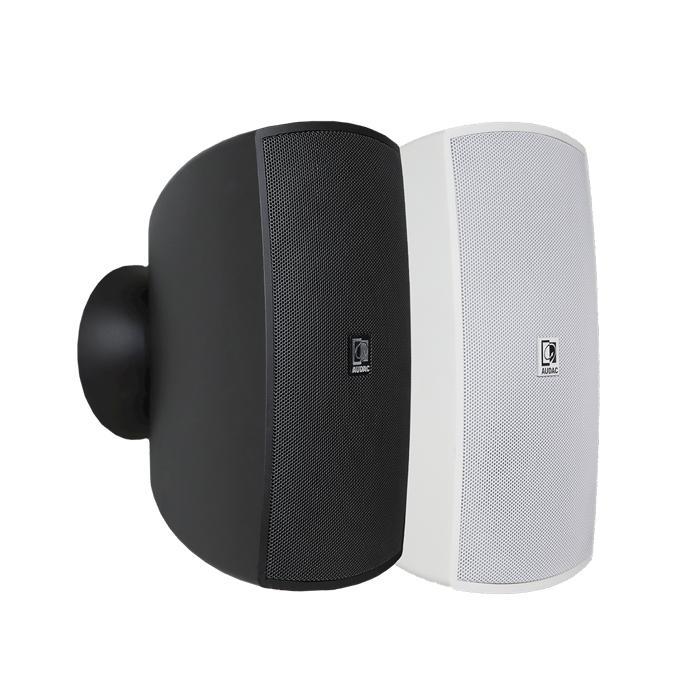

The AUDAC ATEO4M is a premium 2-way wall-mounted loudspeaker system designed for fixed installation audio applications where exceptional sound quality and elegant aesthetics are equally important. Ideal for hospitality venues, retail environments, restaurants, bars, corporate spaces and modern residential installations, the ATEO4M delivers detailed music reproduction and crystal-clear speech intelligibility in a compact and stylish enclosure.
Featuring AUDAC's innovative Clevermount mounting system, installation is remarkably quick and professional, allowing the loudspeaker and bracket to integrate seamlessly into a single visually appealing unit. With IP66 weather resistance, the ATEO4M is equally suited to both indoor and outdoor applications.
Engineered for natural and accurate sound reproduction, the ATEO4M combines a high-quality woofer and dome tweeter to deliver balanced audio across a wide frequency range.
The carefully engineered acoustic design provides broad and consistent sound dispersion, reducing the number of speakers required in many installations.
AUDAC's patented Clevermount technology significantly simplifies installation while maintaining a clean, elegant appearance.
Once the wall plate is installed and connected, the speaker simply clips into position and is secured using the supplied safety screw, making large-scale installations fast and efficient.
The Clevermount bracket provides multiple positioning options, allowing accurate sound direction for optimal coverage.
The ATEO4M supports both traditional low-impedance systems and 100V distributed audio installations, making it suitable for a wide variety of commercial projects.
| 100V Tap | Power | Impedance |
|---|---|---|
| 1 | 24W | 417Ω |
| 2 | 12W | 833Ω |
| 3 | 6W | 1667Ω |
| 4 | 3W | 3333Ω |
Built for long-term reliability in demanding environments, the ATEO4M features a robust enclosure and weather-resistant construction.
| Speaker Type | 2-Way Full Range |
|---|---|
| Woofer | 4" Mid/Low Frequency Driver |
| Tweeter | 1" Dome Tweeter |
| Power Handling (RMS) | 35W |
| Maximum Power | 70W |
| Impedance | 8 Ohms |
| Sensitivity | 86dB (1W/1m) |
| Maximum SPL | 101dB |
| Frequency Response (±3dB) | 100Hz - 20kHz |
| Frequency Range (-10dB) | 65Hz - 20kHz |
| Dispersion | 130 degrees Horizontal / 130 degrees Vertical |
| Transformer Taps | 24W / 12W / 6W / 3W |
| Connector | 6-Pin Custom Terminal Block |
| IP Rating | IP66 |
| Mounting System | Clevermount |
| Construction | ABS Enclosure |
| Grille | Steel |
| Dimensions (W x H x D) | 136 x 244 x 153mm |
| Weight | 2.05kg (Each Speaker) |
Ideal for retail stores, bars, restaurants, cafés, hotels, corporate environments, houses of worship, outdoor terraces, patios, leisure facilities, residential installations and any professional audio system requiring high-quality wall-mounted loudspeakers with flexible installation options.
Yes. The ATEO4M is IP66 rated, providing protection against dust ingress and powerful water jets, making it suitable for outdoor installations and exposed environments.
Yes. The speaker features an integrated 100V line transformer with selectable power taps of 24W, 12W, 6W and 3W, making it ideal for distributed commercial audio systems.
Absolutely. In addition to 100V operation, the ATEO4M supports standard 8 Ohm low impedance installations for hi-fi and professional audio applications.
Clevermount is AUDAC's innovative mounting system that combines the speaker bracket and enclosure into one seamless design, allowing for faster installation, cleaner cable management and a more professional finish.
The ATEO4M is commonly used in restaurants, bars, hotels, retail stores, corporate environments, houses of worship, outdoor terraces and premium residential audio systems.
