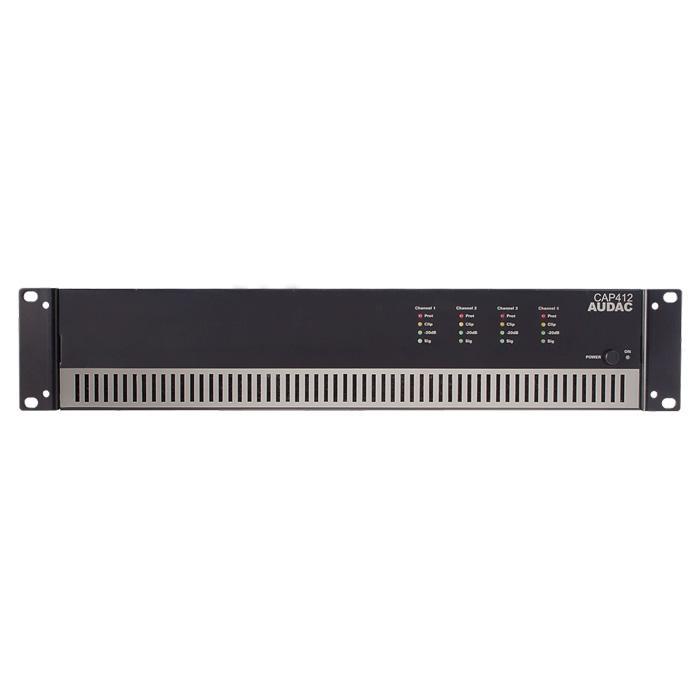

Audac CAP412 Quad Channel Power Amplifier 4 x 120W 100V

Professional Four Channel 100V Power Amplifier from Audac, providing a healthy 120W of power to each channel, making this the ideal solution for 4 zone applications.

Specifications:

• RMS Power: 4 x 120 W
• Signal / Noise: > 100 dB
• THD+N (@ 1 kHz): < 0.3% (1/2 Rated Power)
• Crosstalk (@ 1 kHz): < 80 dB
• Technology: Class-D
• Common mode rejection ratio: 70 dB
• Protection: DC Short circuit, Over heating, Over load, Signal limiting
• Cooling: Temperature controlled FAN
• Operating temperature: 0° ~ 40° @ 95% Humidity
• Frequency - Response (± 3 dB): 50 Hz - 22 kHz
• Power - Supply: Switching mode,
• Source: 100 ~ 240 V AC / 50 ~ 60 Hz
• Inputs: Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
• Impedance 10 kΩ balanced
• Connector XLR female with Male Linkthrough
• Outputs Voltage / Impedance 100 V / 83 Ω 70 V / 42 Ω 4 Ω
• Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
• Dimensions 482 x 88 x 420 mm (W x H x D)
• Weight 14.800 kg
• Mounting 19”
• Unit height 2 HE
• Construction Steel
• Colours Black
