Audac DPA616 16 Channel D Class Amplifier 16 x 60W

#DPA616

£1099.00 inc vat
£915.83 ex vat

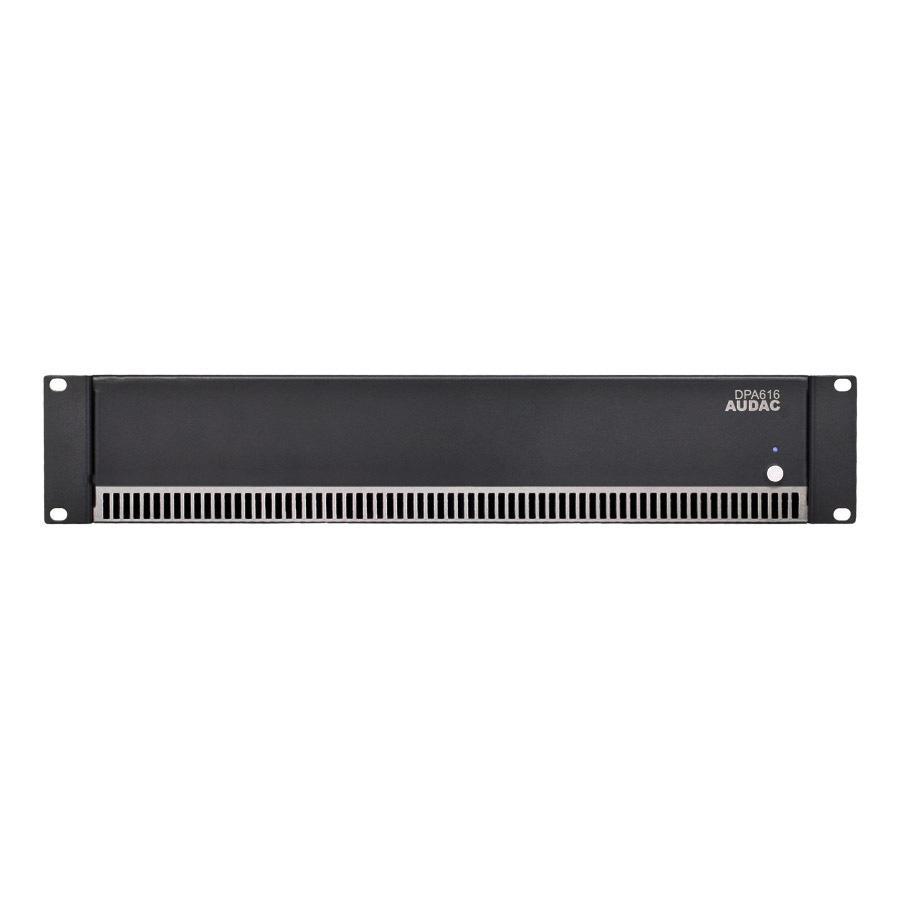

Audac DPA616 16 Channel D Class Amplifier 16 x 60W

The Audac DPA616 16 Channel D Class Amplifier 16 x 60W can deliver 16 x 60W at 4 Ohms, 16 x 30W at 8 Ohms and 8 x 120W at 8 Ohm in bridge mode. It is ideal to use for multi-room applications and ideally with the Audac MTX88 8x8 Audio Matrix.

Technical specifications:

  • RMS Power @ 4 Ohm Stereo 16 x 60 Watt
  • RMS Power @ 8 Ohm Stereo 16 x 30 Watt
  • RMS Power @ 8 Ohm Bridge 8 x 120 Watt
  • Frequency response 20 Hz - 20 kHz
  • Signal to noise ratio > 100 dB
  • THD+N < 0.1%
  • Technology Class-D
  • Power supply Switching mode
  • Power supply range 100-240 V AC / 50-60 Hz
  • Input Sensitivity -20 dB ~ +20 dB
  • Protection DC short circuit
  • Overheat
  • Over load
  • Signal limiting
  • Operating temperature 0° ~ 40° at 95% Humidity
  • Connectors Input 3-Pin Terminal block (3.81 mm pitch)
  • Output 4-Pin Terminal block (5.08 mm pitch)
  • Dimensions (Width x Height x Depth) 482 x 88 x 322 mm
  • Weight net 8.2 Kg
  • Mounting 19”
  • Unit height 2U
  • Construction Steel
  • Colour Black
  • Shipping weight and volume 9.6 Kg - 0.047 Cbm
  • Accessories included 16 x 3-Pin Terminal block Input con.
  • 8 x 4-Pin Terminal block Output con
