Audac MTX48 4-Zone Audio Matrix Smart Phone Controllable

The Audac MTX48 4-Zone Audio Matrix Smart Phone Controllable is the four-zone version of the MTX series, containing two balanced microphone inputs with priority function, phantom power possibility and three-band tone control.

Four stereo line-level inputs are provided to which any line-level music source such as a CD-player, Tuner or MP3 player, ... can be connected. The other two inputs of the matrix are the additional wall panel inputs for both line and microphone signals.

The MTX can be controlled by means of additional control panels, its fully functional web based interface or the iPhone/ iPad Remote app. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232.

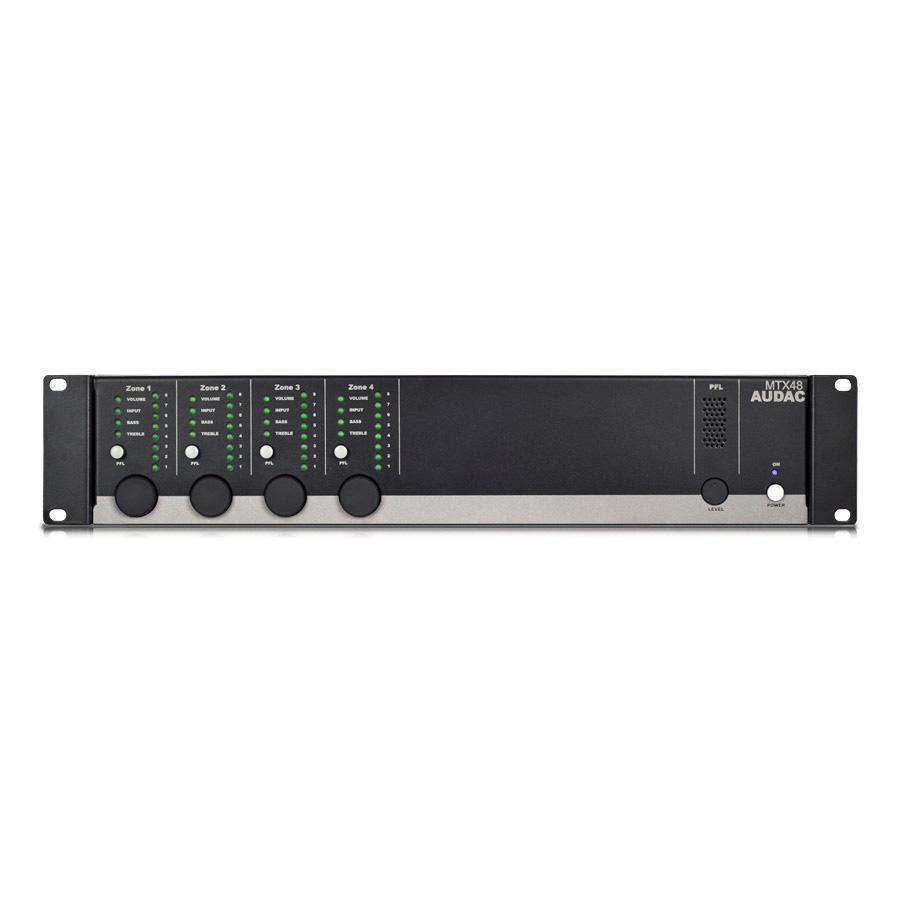

The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings. A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone.

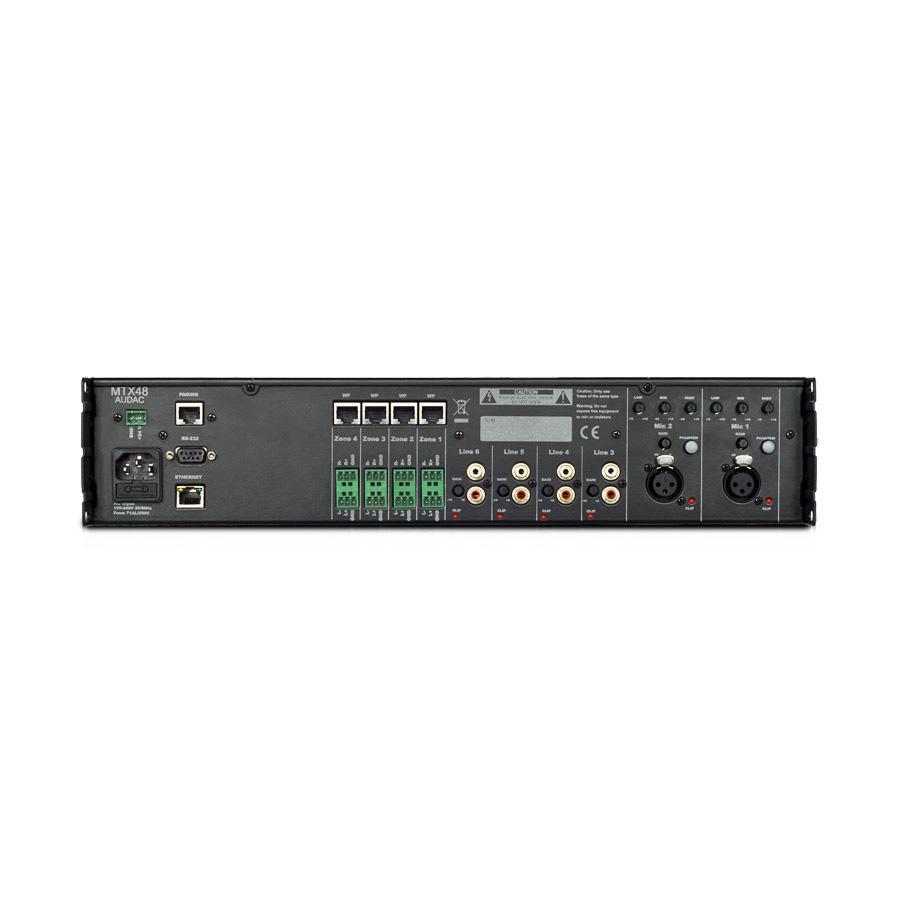

The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone.

A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the mains power is shut down.


  • 4 x 8 Audio Matrix System
  • 2 Mic inputs with Phantom & Priority
  • 4 Stereo line inputs
  • 4 Stereo balanced zone outputs
  • Fully functional integrated web server
  • iPad & iPhone control apps
  • TCP/IP and RS232 control ports
  • Optional wall panels for audio input & control
  • Optional paging console


  • Restaurants, Clubs, Bars
  • Theaters, Hotels
  • Office buildings,
  • Conference facilities, Houses of worship
  • Professional offices, Public buildings
  • Private houses, Libraries

Technical specifications:

  • Inputs 2 x Balanced Microphone (XLR) 4 x Stereo Unbalanced Line (RCA) 4 x Wall panel input (RJ45)
  • Outputs 4 x Stereo Balanced Line (3-pin Euro Terminal Block - 3.81 mm)
  • Input sensitivity Mic 0 dB ~ -50 dB
  • EQ Input Mic 1-2 High 12.5 kHz ±15 dB Mid 2.5 kHz ±15 dB Low 80 Hz ±15 dB
  • Phantom power Mic 15 V DC
  • Input sensitivity Line -14 dB ~ +9 dB
  • Output impedance 51 Ohm
  • Output level -70 dB ~ 0 dB
  • EQ output Treble 2.5~20 kHz ±14 dB Bass 100 Hz ±14 dB
  • Frequency response 20 Hz - 20 kHz
  • Signal / Noise ratio Mic > 80 dB Line > 100 dB
  • THD + N Mic < 0.05 dB Line < 0.01 dB
  • Crosstalk -85 dB
  • Control possibilities Front panel RS232 / TCP/IP Wall panel (RS485) iPhone / iPad / Integrated website
  • Power supply 100 ~ 240 V AC / 50 ~ 60 Hz 24 V DC (emergency power)
  • Power consumption 9 Watt
  • Dimensions (Width x Height x Depth) 482 x 88 x 335
  • Weight net 6.24 Kg
  • Unit height 2U
