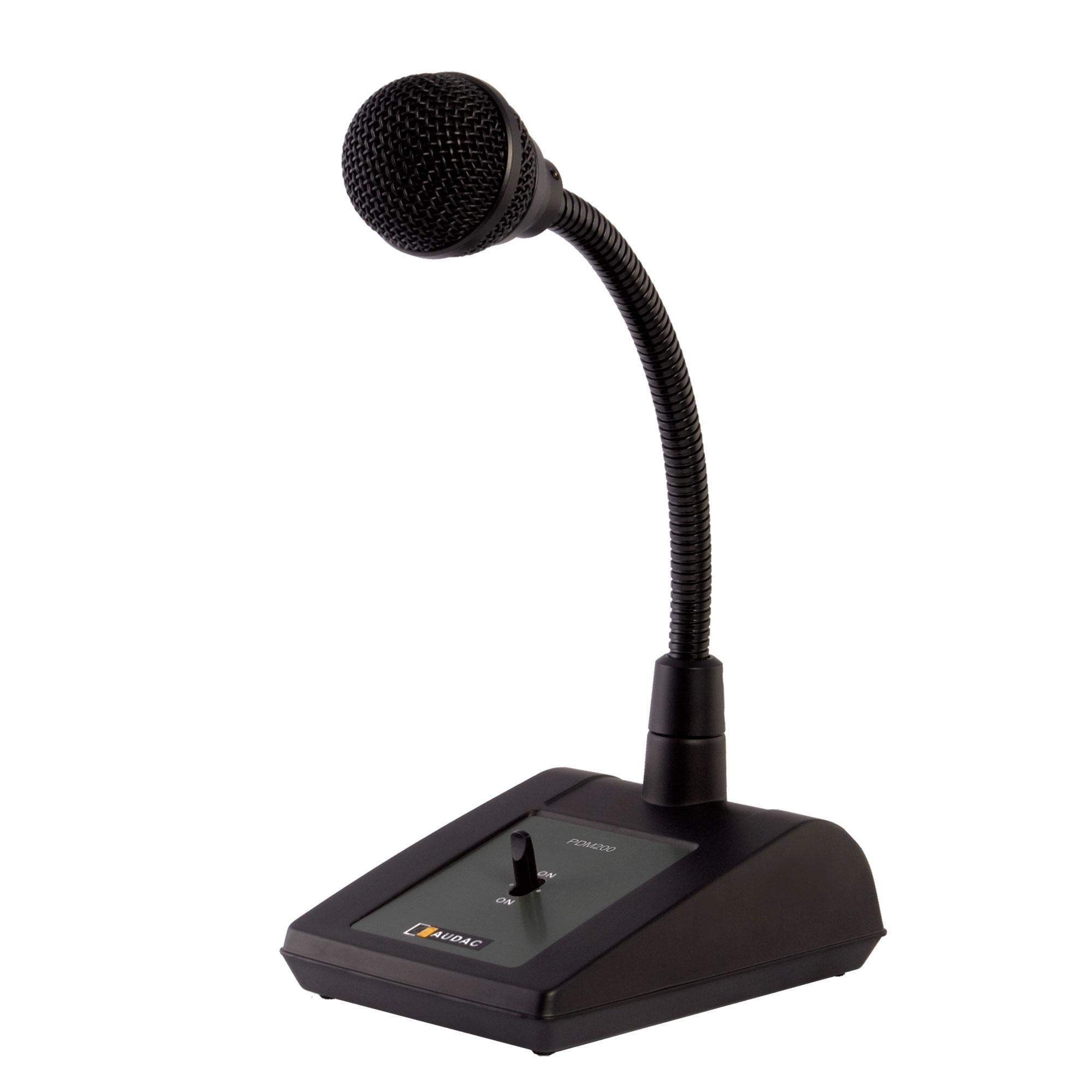

The Audac PDM200 is a professional dynamic gooseneck paging microphone with a three‑position switch (Permanently ON / Momentary ON / OFF), designed for use in public address systems. Its integrated RC‑network enables activation of chime modules on compatible amplifiers like the COM12/24. Ideal for retail, corporate environments, educational, warehousing, and hospitality environments.
Featuring a die‑cast metal base for superior stability and a flexible gooseneck, the PDM200 ensures precise mic placement and durable construction. Its robust design supports heavy daily use while maintaining audio clarity.
| Specification | Details |
|---|---|
| Microphone Type | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Response | 80 Hz - 12 kHz |
| Sensitivity | -70 dB (1 W/1 m) |
| Impedance | 600 Ω |
| Output Connections | 3‑pin XLR + 3 chime conductors |
| Cable Length | 1.5 m |
| Dimensions (W × H × D) | 110 × 365 × 160 mm |
| Weight | 860 g |
| Colour | Black |
The PDM200 delivers consistently clear voice announcements, courtesy of its cardioid dynamic capsule. The three‑position switch offers operational flexibility--ideal for scenarios requiring a permanently live mic or momentary paging. Chime integration adds a professional pre‑announcement tone. Overall build quality ensures stable positioning and long‑term reliability in demanding environments.
Q: What are the switch modes?
A: Permanently ON (mic always live), Momentary ON (push‑to‑talk), or OFF.
Q: Does it include a chime trigger?
A: Yes, an integrated RC‑network and switch contact activates external chime modules.
Q: Is the cable integrated or replaceable?
A: It has a fixed 1.5 m cable ending in a 3‑pin XLR plus chime conductors.
Q: Is phantom power required?
A: No--dynamic mic design does not require phantom power.
Q: What environments suit this mic?
A: Highly suitable for retail, offices, warehouses, schools, hospitality, and large public spaces.
