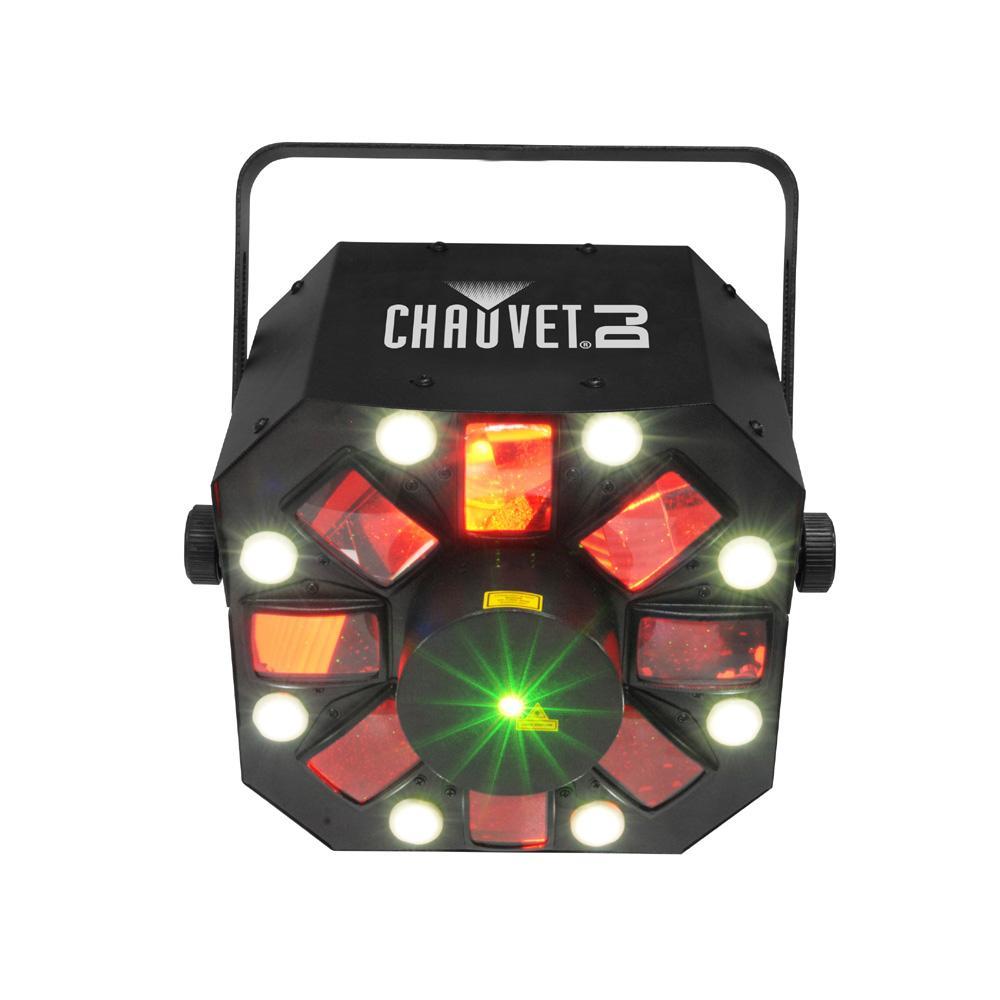

The Chauvet Swarm 5 FX is a versatile 3-in-1 disco light, combining an RGBAW rotating derby light, red and green lasers, and a white strobe effect into a single fixture. It can be controlled via DMX, built-in automatic programmes, or sound-to-light mode via the built-in microphone.
| Specification | Details |
|---|---|
| DMX Channels | 9 |
| DMX Connectors | 3-pin XLR |
| Light Sources |
Swarm: 5 x 3W RGBAW LEDs Strobe: 8 x 1W White LEDs Lasers: 532 nm/50 mW Green, 650 nm/100 mW Red |
| Strobe Rate | 0 - 20 Hz |
| Coverage Angles |
Strobe: 17 degrees beam, 35 degrees field Laser: 100 degrees Swarm: 65 degrees |
| Illuminance (strobe) | 823 lux @ 2m |
| Power Linking | Up to 26 units @ 230V |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Power & Current | 66 W, 0.3 A @ 230 V, 50 Hz |
| Weight | 4.5 kg |
| Size | 248 x 298 x 310 mm |
The Swarm 5 FX combines three effects into one fixture, saving space and setup time. It delivers vibrant colours, dynamic strobe bursts, and sharp laser beams, all working together for an immersive lighting experience.
Q: Can the Swarm 5 FX run without DMX?
A: Yes, it features built-in automatic programmes and sound-to-light mode via the built-in microphone.
Q: How many units can I link together?
A: You can power-link up to 26 units at 230V.
Q: Is it portable?
A: Yes, it's compact and lightweight at just 4.5kg, making it easy to transport.
