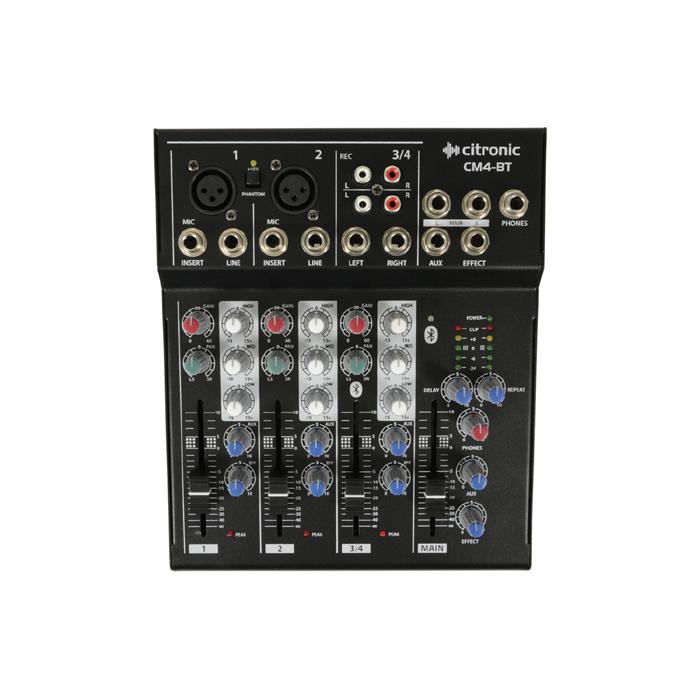

Citronic CM4-BT Compact Mixer With Bluetooth

Compact format mixing console with 2 mic/line inputs (jack/XLR) and a stereo line channel, which can be paired to a smart device via an internal Bluetooth receiver. Mic/line channels have individual inserts and all channels have 3-band EQ, Aux and Effect controls. Phantom power of +48V is switchable to the XLR inputs for condenser microphones. Applications range from sub-mixing to main live PA console.

Features:

• Compact, accessible design
• Internal Bluetooth receiver
• Built-in delay effect for vocals
• Channel inserts for Mic/line inputs
• 3-band EQ for each channel
• Switchable +48V phantom power

Specification:

• Power supply - 12Vac 1000mA (included)
• Phantom power - Switchable +48V (XLR inputs)
• Bluetooth version - 2.1
• Frequency response : inputs - 20Hz-20kHz
• Stereo input - 6.3mm jack/RCA (-8 to +15dB / +13 to +60 parallel)
• Mic/line channel inputs - 2 x balanced XLR/jack
• SNR : mic inputs - 120dB E.I.N.
• SNR : line inputs - 95dB E.I.N.
• SNR : stereo input - 96dB E.I.N. (or 104dB E.I.N. in parallel)
• EQ: high - 10kHz, ±15dB
• EQ: mid - 700Hz, ±15dB
• EQ: low - 50Hz, ±15dB
• Outputs : main (L+R) - 6.3mm jack (+28dBu balanced / +22dBu unbalanced)
• Phones output - +15dBu stereo 6.3mm jack
• Dimensions - 230 x 190 x 60mm
• Weight - 2.09kg
