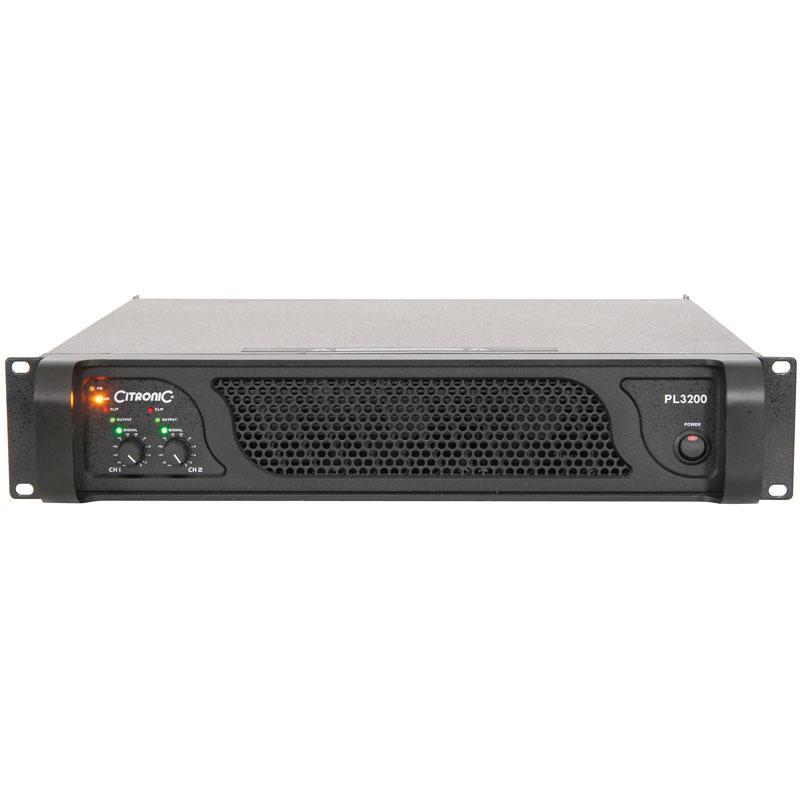

PL Series Powerlite Switch-Mode Amplifier

Want it tomorrow?

Order within -:- and choose next-day delivery

High output stereo amplifiers with digital switch-mode design. Very lightweight construction in a sturdy 2U precision engineered housing. Fast and high power delivery, even at low frequencies, is made possible by the ultra-efficient Class H circuit design, which can be further protected by the integral clip limiters and high-pass filters for flawless and dependable operation. Overall, this is a high precision amplifier for high end applications.

• Class H, 2-step architecture
• Compact and light weight
• High efficiency, high output
• Independent dual-level clip limiters
• Independent dual-level high-pass filters
• Stereo, parallel or bridge mono modes
• Fully balanced signal path Dual fan cooling
• Soft-start on power up
• Multi-level system protection

Specifications

• Power supply: 230Vac 50/60Hz (IEC, 15A max.)
• Input impedance: 20kohms
• Output circuit architecture: Class H, 2-step
• Frequency response: 5Hz - 50kHz
• THD: 0.05%
• Circuit protection: Short-circuit, DC, overload, soft-start
• Dimensions (H x W x D): 483 x 389 x 88mm (2U)
• Weight: 10.5kg
