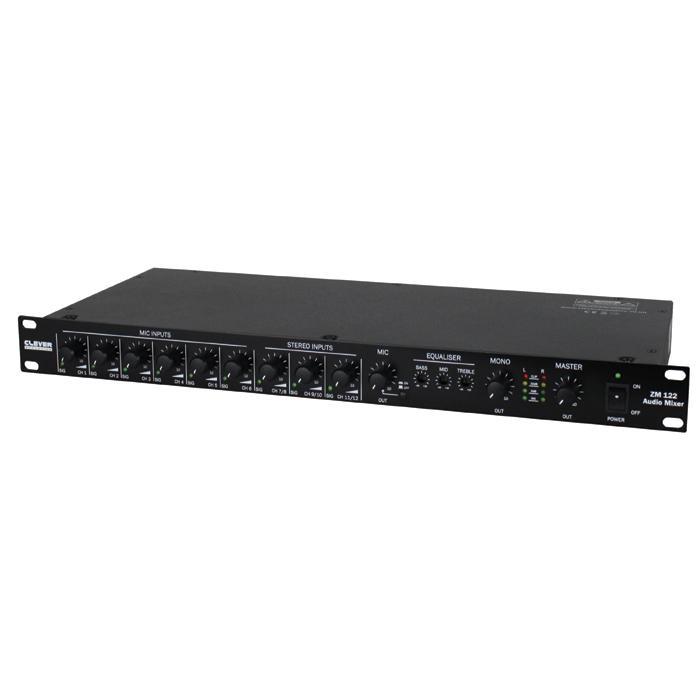

Clever Acoustics ZM 122 Audio Mixer

Suitable for use in a wide range of applications, the ZM 122 offers the user a clean, simple control surface while retaining a large number of features for complex audio systems. The ZM 122 mixer has 9 input channels, each with adjustable volume controls.Six of the channels are microphone inputs with XLR 1/4" combo sockets, the other three are RCA line level stereo inputs. Adding to the features, the ZM 122 has a 3 band EQ, mono out and microphone out all in a 1U 19" rack mount unit.

Features:

• Six mono channels with combo XLR/Jack input, each with Mic/Mic+ Phantom/Line selector
• Three stereo line level inputs via phono sockets
• Low distortion microphone pre-amplifiers with high dynamic range
• CH level control, signal LED to indicate inputsignal
• Microphone 1 features adjustable priority override
• Input level control with input signal LED
• Stereo line output via balanced XLRs
• Mono output via 6.35mm (1/4”) unbalanced jack with volume control
• Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control
• Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control
• Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control and on/off switch
• Stereo record output via unbalanced phono sockets
• 3-band EQ for low, mid, high
• Master volume control
• 4-segment LED signal level meters
• AC 220V-240V or DC 24V operating voltage

Specification:

• Power supply: 220-240V~50/60Hz AC or 24V DC
• Power consumption: 35W
• Dimensions: 44 x 484 x 238mm
• Weight: 3.9kg
