The Clever Acoustics CS 630HP is a high-performance 6-inch 2-way ceiling speaker, engineered for professional audio installations where clarity and reliability are paramount. Ideal for both music playback and speech reinforcement, this speaker is perfectly suited for environments such as retail spaces, hospitality venues, educational institutions, and corporate settings.

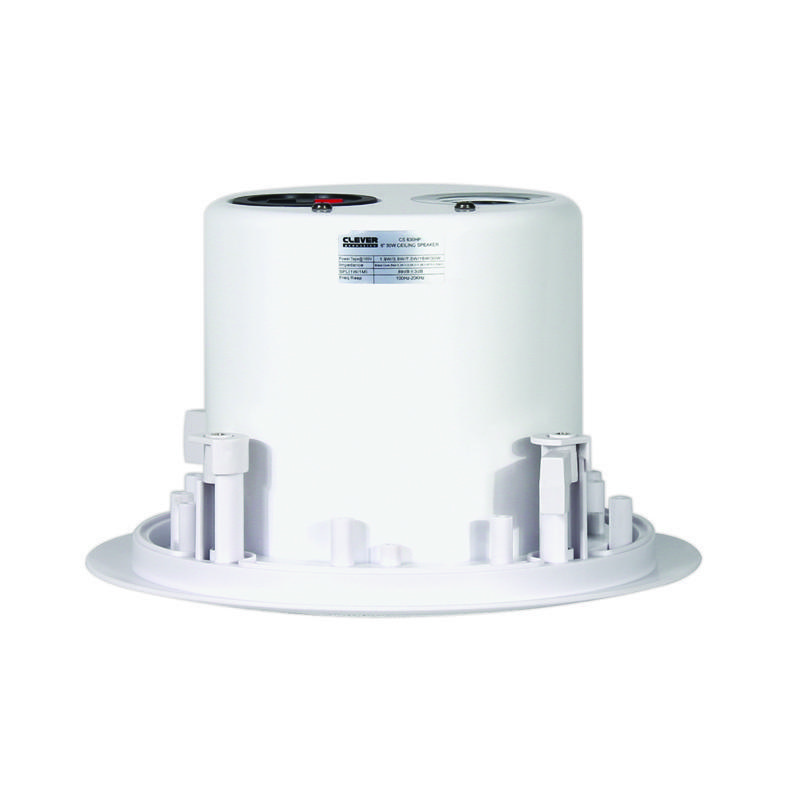

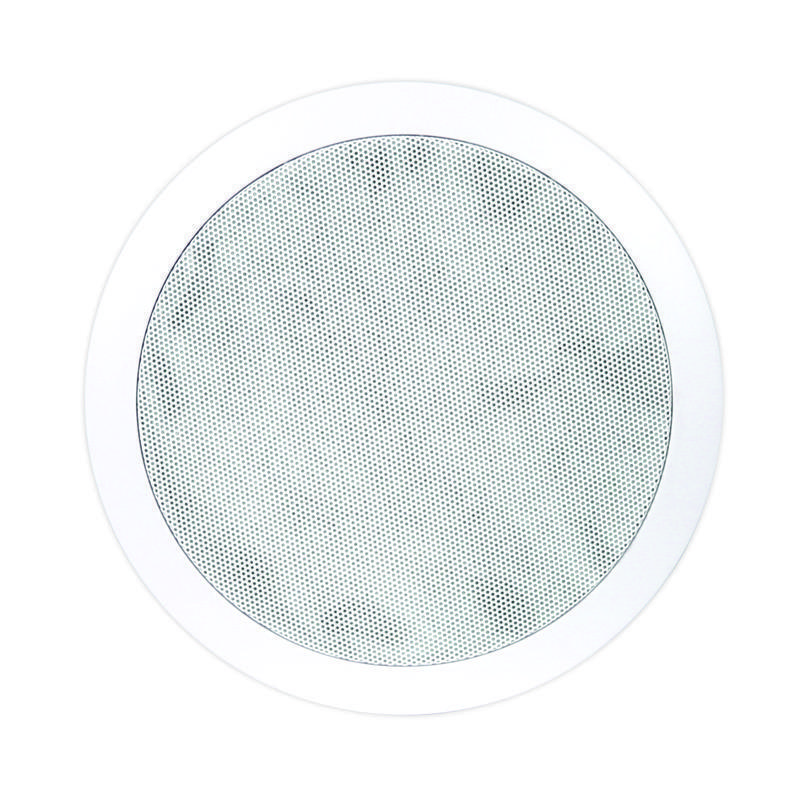

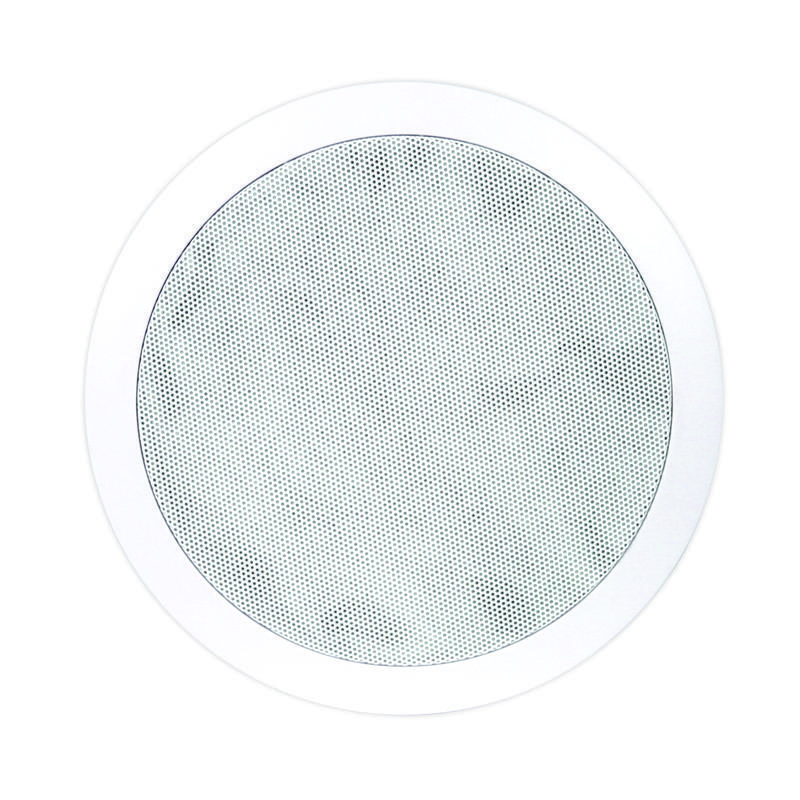

Constructed with a durable metal grille and an ABS baffle, the CS 630HP ensures longevity and resistance to wear. Its metal enclosure enhances low-frequency response, delivering richer bass tones. The flush-mount design, complemented by dog-ear retaining clips and an included installation template, facilitates a seamless and efficient installation process.
| Specification | Details |
|---|---|
| Power Source | 100V Line / 8Ω |
| Power Tappings | 1.9W, 3.8W, 7.5W, 15W, 30W |
| Impedance | 165Ω to 2.6kΩ (100V), 8Ω (Low Impedance) |
| Frequency Response | 95Hz - 20kHz |
| Sensitivity (1W/1m) | 89dB ±3dB |
| Maximum SPL (Rated W/1m) | 104dB |
| Drivers | 6" LF, 1.5" HF |
| Connections | 2 x Spring Terminals |
| Cutout Diameter | 208mm |
| Mounting Depth | 140mm |
| Dimensions (Diameter x Depth) | 233mm x 165mm |
| Weight | 1.6kg |
The CS 630HP delivers robust audio performance, ensuring clear and balanced sound reproduction for both music and speech. Its design facilitates easy installation, making it a preferred choice for installers seeking efficiency without compromising on quality. The speaker's adaptability to both 100V line and low-impedance systems enhances its versatility across various applications.
Q: Is the CS 630HP suitable for both music and speech applications?
A: Yes, its wide frequency response and coaxial design make it ideal for both music playback and speech reinforcement.
Q: Can this speaker be used in low-impedance systems?
A: Absolutely, the CS 630HP supports 8Ω low-impedance operation in addition to 100V line systems.
Q: What installation accessories are included?
A: The speaker comes with an installation template and features flush-mount installation clips for hassle-free setup.
Q: What environments are most suitable for the CS 630HP?
A: This speaker excels in commercial spaces such as shops, offices, schools, and restaurants, where clear, evenly distributed sound is essential.

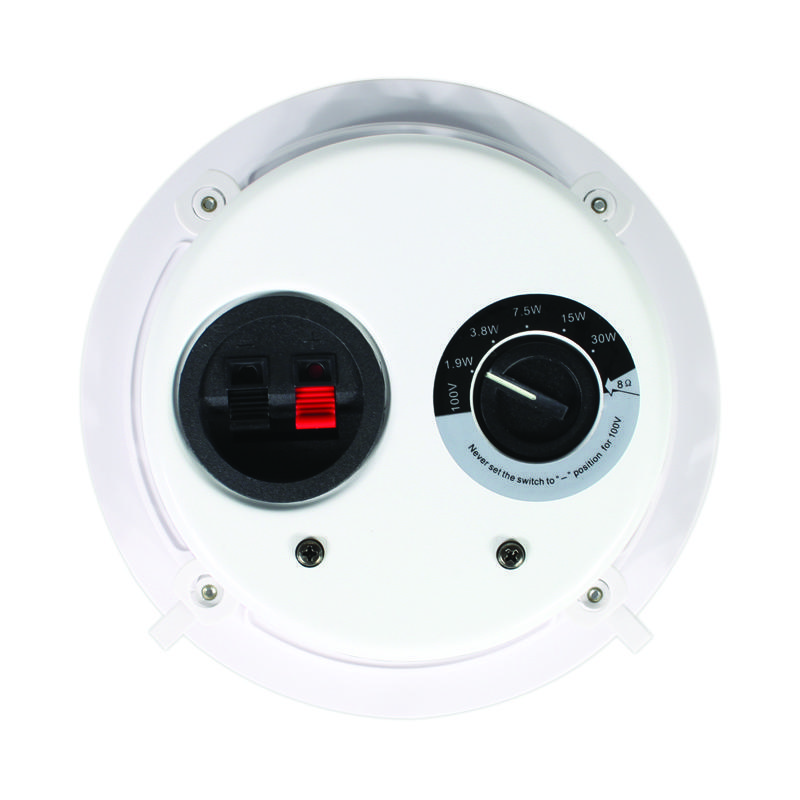

Q: Is it easy to adjust the power output of the speaker?
A: Yes, the rotary switch on the back allows for quick and easy selection of the desired power tap to match the system requirements.
