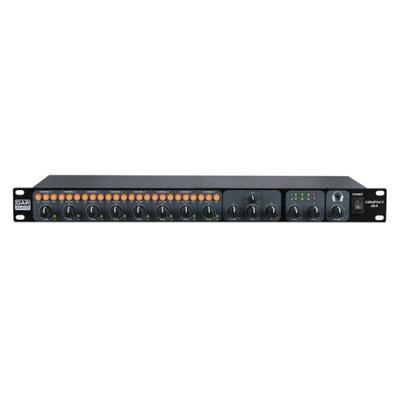

DAP-Audio Compact 8.1 1U 8-Channel Mixer

The DAP-Audio Compact 8.1 1U 8-Channel Mixer is a fantastic mixer. Each of the 8 Channels can be switched between the MIC XLR or the LINE RCA Inputs on the rear of the unit. This can be done by selecting the illuminating buttons on the front of the unit. In addition to this button there is also an 80Hz Low Pass Filter and a 48v Phantom Power selector button. On the Output side, there is EQ Section and Master Volume and Balance control as well as a Headphone Jack for Monitoring with its own volume control.

Technical specifications:

• Input channels: 8 x Microphone, combo XLR/Jack 8 x Line, RCA
• Output channels: 1 x Master Balanced, XLR 1 x Headphones, 6,3mm TRS Jack
• Master EQ: 80Hz, 330-8200Hz, 12KHz, -12dB / +12dB
• Frequency response: 20Hz - 20Khz
• T.H.D.: < 0.01%
• Dimensions: 481 x 44 x 175 mm (LxHxD)
• Power supply: 2x15V AC, 50Hz (Adapter included)
• Power consumption: 8Watt
• Weight: 2.2 Kg
