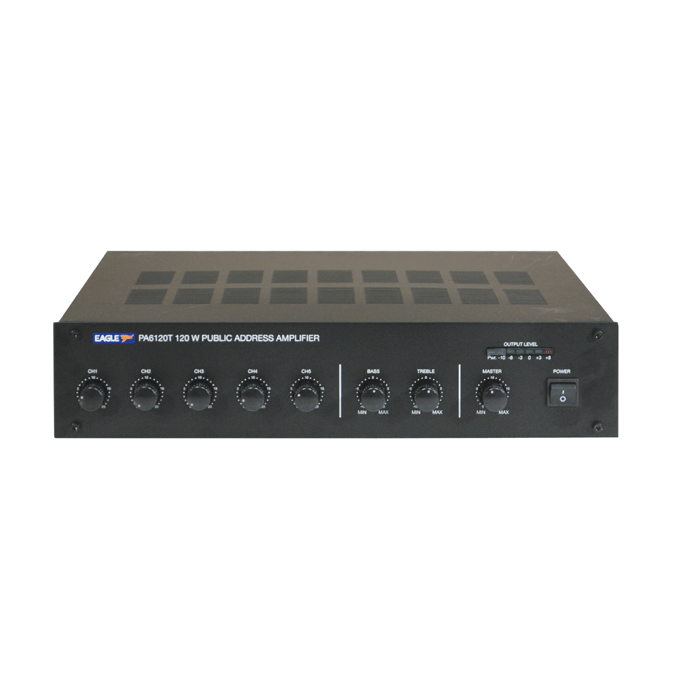

Eagle PA6120T 100V Line Mixer Amplifier 120W RMS
#P648WK
Eagle PA6120T 100V Line Mixer Amplifier 120W RMS
The Eagle PA Amplifier Is Ideal For Public Address With A Variety Of Inputs And Speaker Outputs. This Makes The PA6000 Series Is Perfect For Schools, Restaurants And Shops Among Other Places. The 5 Channel System Allows Microphones, Auxiliary Inputs And Even A Telephone Line. Channel 1 Microphone Has A Priority Setting That Allows The Channels 3-5 To Be Muted For The User To Make Announcements Such As In An Emergency. Master Controls Allow For Total Control Of Volume, Bass And Treble. Unit Is Supplied With Mounting Brackets For 19" Rack Installation.
Features:
- Priority Microphone On Channel 1 Which Can Mute Channel 3-5 And AUX Input For Emergency Announcements.
- 5 Channels With A Variety Of Input Possibilities.
- 2 Balanced Microphone (Channel 1 +2).
- 1 Microphone/ 1 Telephone (Channel 3) With Switch For Choosing.
- 2 Auxiliary Line/ 2 Microphone (Channel 4 +5) With Switches For Choosing.
- Speaker Outputs Available At 100V, 70V And 8ohm.
- Supplied With Mounting Brackets For 19" Rack Installation.
Specifications:
- Colour - Black
- Auxiliary Input - 150mV
- Booster Output - 775mV, 600ohm
- Connector - Screw Terminals On Output
- Currrent - 8A
- DC Input - 24V
- Frequency Response Mic - 15000Hz
- Frequency Response Aux - 20000Hz
- Frequency Response Tel - 15000Hz
- Inputs Mic - 1mV 600ohm
- Inputs Aux - 150mV 22000ohm
- Inputs Tel - 150mV 600ohm
- Mic Priority - Channel 1: 0.3mV
- Outputs - 100V, 8ohm
- Power Input - 230Vac @ 50Hz
- Power RMS - 120W
- Dimensions - 100 x 300 x 450mm
- THD - Less Than 2%
- Vox Reduction - 40dB
- Weight - 10Kg
