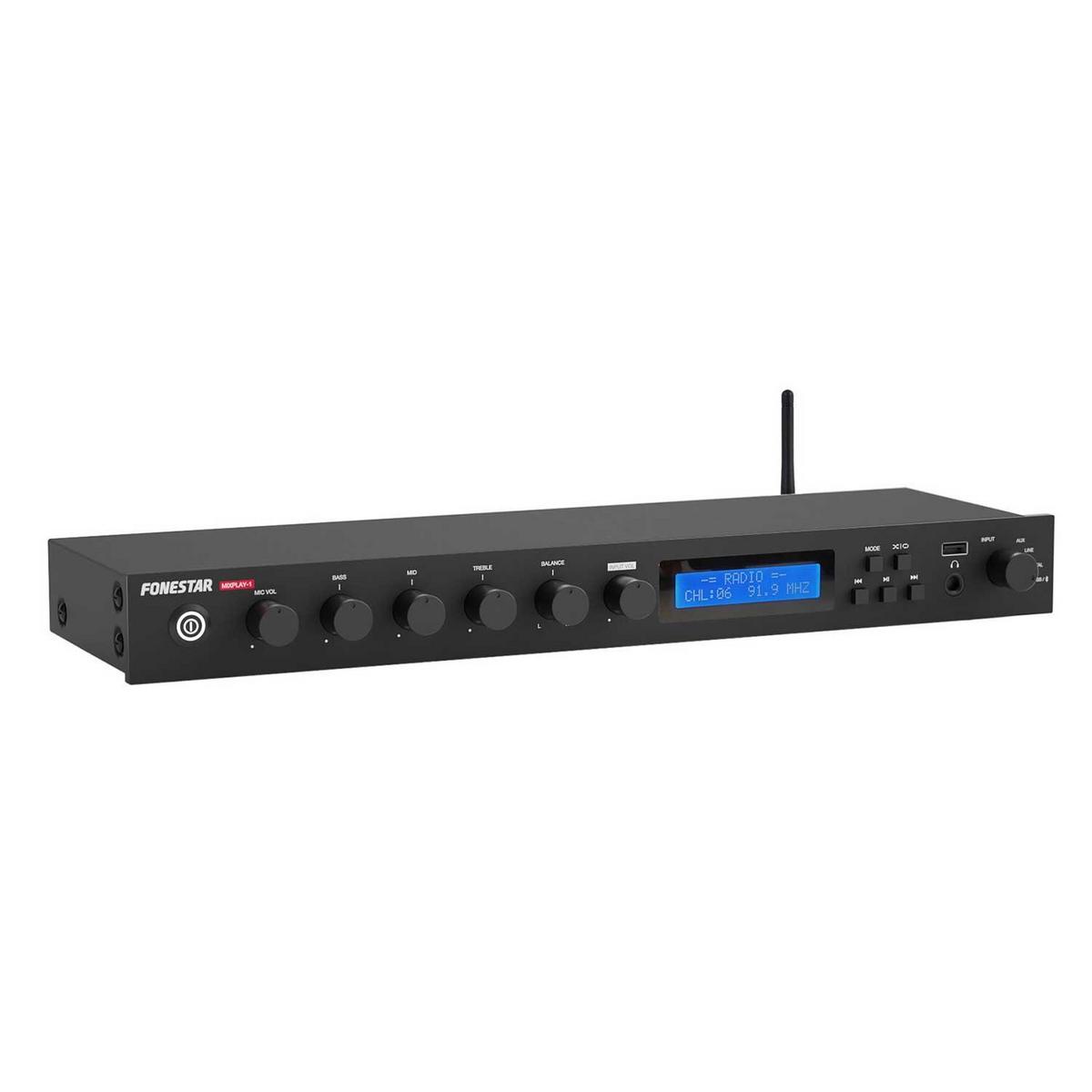

The Fonestar MIXPLAY-1 is a versatile 1U rackmount audio hub that combines Bluetooth®, USB, SD and FM media playback with microphone mixing, recording and multiple audio outputs. Designed for commercial sound systems, it allows music playback, microphone announcements and audio recording from a single compact unit.
Featuring microphone priority, digital and analogue inputs, tone controls and a dedicated subwoofer output, the MIXPLAY-1 is ideal for shops, restaurants, gyms, reception areas and other installations requiring simple, reliable audio management.
Perfect for retail stores, restaurants, gyms, hospitality venues, schools, reception areas and commercial audio systems where background music, paging and audio playback need to be managed from a single device.
| Player Formats | Bluetooth®, USB, FM Radio |
|---|---|
| Supported Audio Files | MP3, WMA, WAV |
| Frequency Response | 20Hz–20kHz |
| THD+N | <0.1% @ 1kHz |

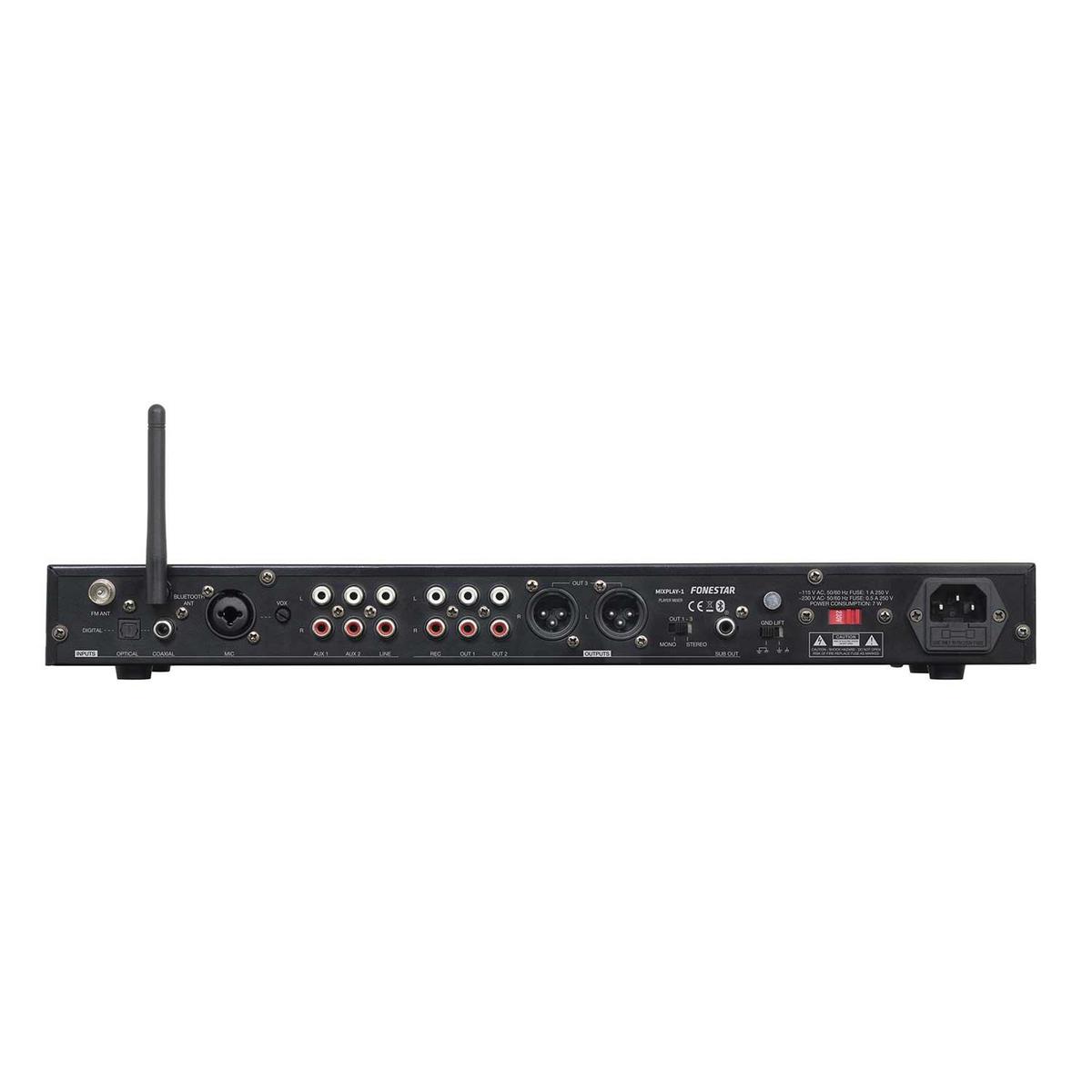

| Microphone Input | Balanced Combo XLR / 6.3mm Jack |
| Aux Inputs | 2 x RCA |
| Digital Inputs | Optical (TOSLINK) & Coaxial RCA |
| Main Outputs | 2 x RCA Unbalanced + 1 x Balanced XLR Output |
| Record Output | RCA |
| Subwoofer Output | RCA |
| Headphone Output | 6.3mm Stereo Jack |
| Recording | USB Recording of Mic and Analogue Inputs |
| USB Compatibility | Up to 64GB FAT32 or NTFS |
| Functions | Mic Priority, Stereo/Mono Switching, Ground Lift |
| Power Supply | 115V / 230V AC |
| Power Consumption | 7W |
| Dimensions | 433 x 45 x 155mm |
| Rack Size | 1U 19-inch |
| Weight | 1.9kg |
Yes, it features Bluetooth® connectivity for wireless audio streaming from smartphones, tablets and other compatible devices.
Yes, the built-in microphone priority function automatically lowers music levels during announcements or speech.
Yes, the MIXPLAY-1 can record microphone and analogue input audio directly to a USB storage device.
Yes, both optical (TOSLINK) and coaxial digital audio inputs are provided for connecting TVs, media players and other digital sources.
Yes, a dedicated RCA subwoofer output is included for enhancing low-frequency performance in larger sound systems.
