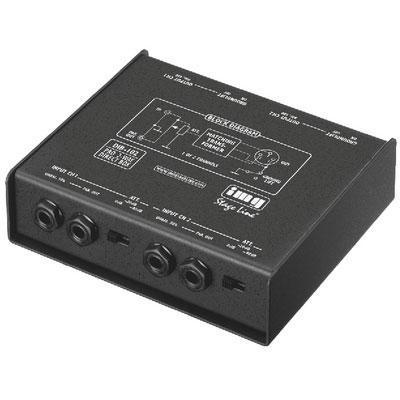

IMG Stageline DIB-102 2-Channel DI Box

The 2-Channel DI Box comes in a robust metal housing, wideband balancing transformer, 1 instrument feed-through output for each channel, 3-fold attenuation switch for each channel and 1 ground lift switch for each channel.

Features:

• 3-fold attenuation switch (0/-20/-40dB) for each channel
• 1 ground lift switch for each channel
• 1 instrument feed-through output for each channel
• Wideband balancing transformer
• Robust metal housing

tools4music 06/2009
on LSP-102, LC-31, FGA-102, FGA-202, DIB-102

"Recommendable and fit for on-the-road applications. A little audio aid available at a favourable price, perfect for the "ever accompanying" tool case."

tools4music 02/2010
"The DIB-12 from IMG Stage Line impresses by both the attractive price and the very stable housing. The frequency curve is exemplary."

Technical specification:

• Frequency range 15-30,000Hz, �0dB
• Inputs 50k ohm
• Outputs 600ohm, XLR
• 50kΩ, jack
• Transmission ratio 10:1
• Admiss. ambient temp. 0-40 C
• Dimensions 148x50x130mm
• Weight 850g
• Inputs 2 x 6.3mm jack, unbal.
• Outputs 2 x 6.3mm jack, unbal., par. out 2 x XLR, bal.
