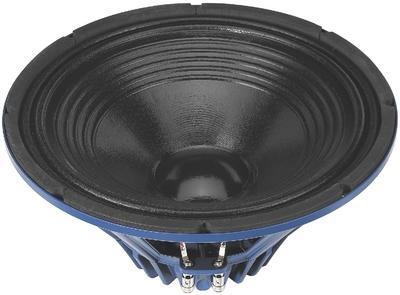

IMG Stageline SP-38A Professional PA Bass Speaker, 600W Max 8ohm 15"

#10.4320

£140.22 inc vat
£116.85 ex vat
delivery time Want it Tuesday, 26th Nov?
Order within -:- and choose next-day delivery
NEODYMIUM Professional Speakers

Of the Blue Components series of PA speakers from IMG Stage Line make one's life easier: with less than 4.5kg, even the 38cm (15") bass speaker weighs less than half the weight of speakers with comparable power capability. With the newly developed FSX reconing technique, a coil wound on the inside and outside onto the voice coil former and the unbelievably efficient neodymium drive with extensive ventilation, the NEO PA speakers are technological highlights even within the blue professional series.

with an ultra-light diecast basket and high-performance drive, 38cm (15"), coated cone and FSX reconing option, very high efficiency due to a CCAW voice coil (copper-plated aluminium) wound on the inside and outside and an optimum sound as a bass speaker as well as in bass-midrange applications. The new NEO class of the Blue Components speakers is the perfect solution for high professional requirements at mobile applications both for PA and DJ applications. Reconing modules for the NEO speakers are available on request. For their replacement, only 4 screws have to be unscrewed (FSX).

Technical Specification

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 44Hz
  • Max. frequency range f3-3,500Hz
  • Rec. crossover freq. (fmax.) 3,000Hz
  • Music power 600WMAX
  • Power rating (P) 300WRMS
  • SPL (1W/1m) 102dB
  • Suspension compl. (Cms) 0.16mm/N
  • Moving mass (Mms) 74g
  • Mech. resistance (Rms) 5.35kg/s
  • Mech. Q factor (Qms) 4.02
  • Electr. Q factor (Qes) 0.34
  • Total Q factor (Qts) 0.31
  • Equivalent volume (Vas) 164 l
  • DC resistance (Re) 5.2ohm
  • Voice coil induct. (Le) 0.9mH
  • Voice coil diameter 75mm
  • Voice coil former glass fibre
  • Voice coil winding height 19mm
  • Air gap height 12mm
  • Linear excursion (XMAX) 3.5mm
  • Eff. cone area (Sd) 854mm2
  • Volume displacement (Vd) 299mm3
  • Force factor (BxL) 18.04Tm
  • Reference efficiency (No) 4.6%
  • Magnet diameter 153mm
  • Magnet weight -
  • Mounting cutout 353mm
  • Mounting depth 179mm
  • Dimensions 389mm
  • Weight 4.23kg
  • Rec. net cabinet volume Closed -
  • Bass-reflex 90 l
