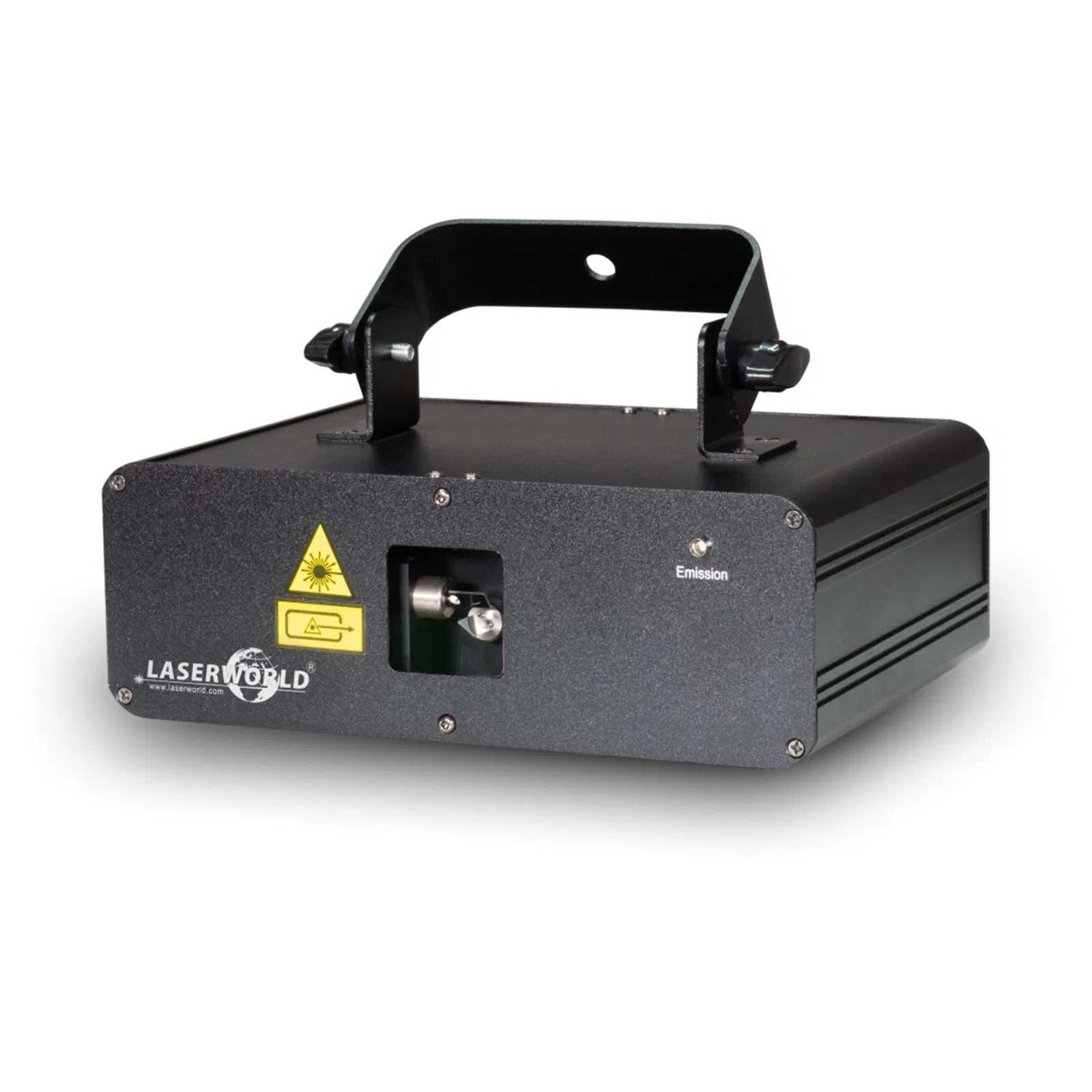

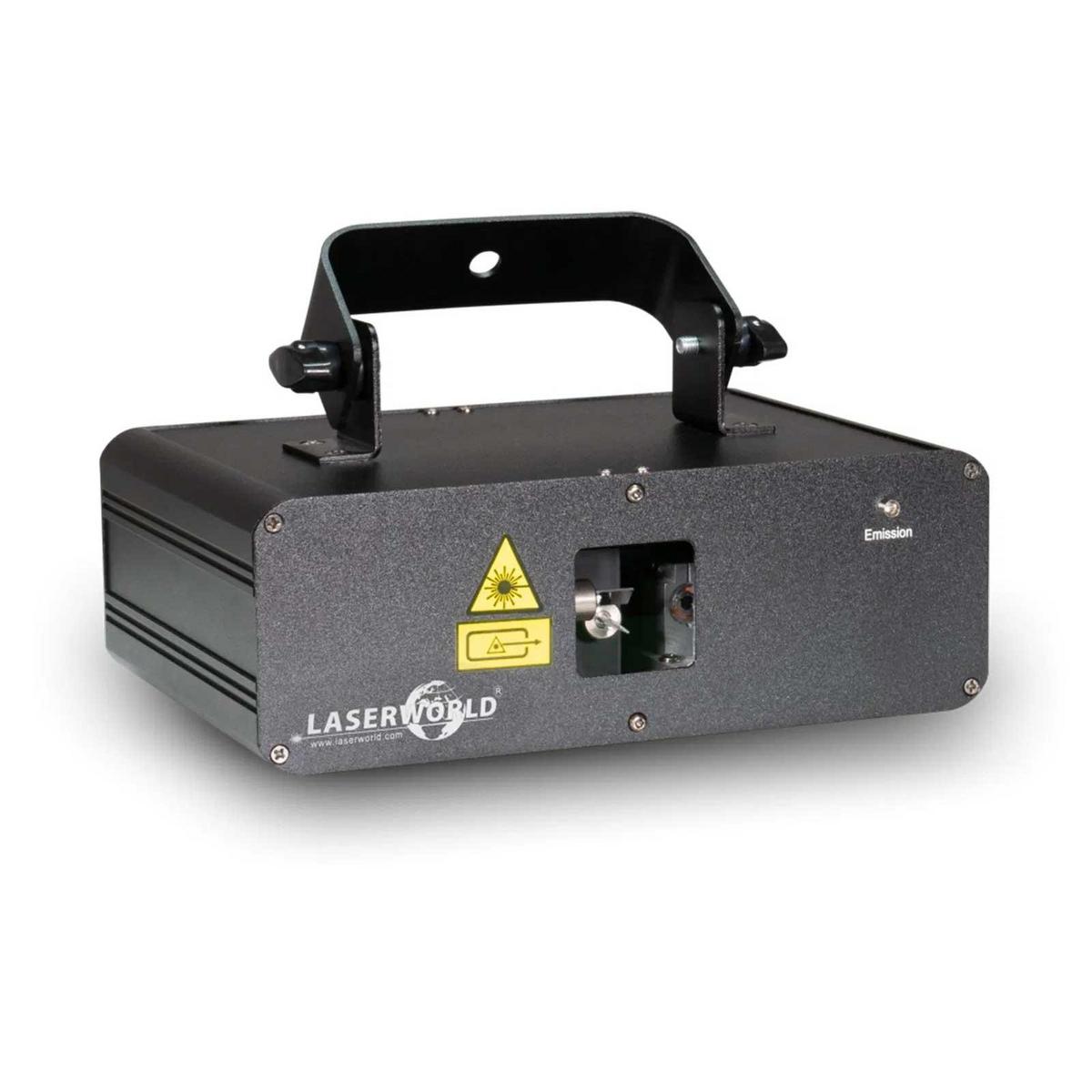

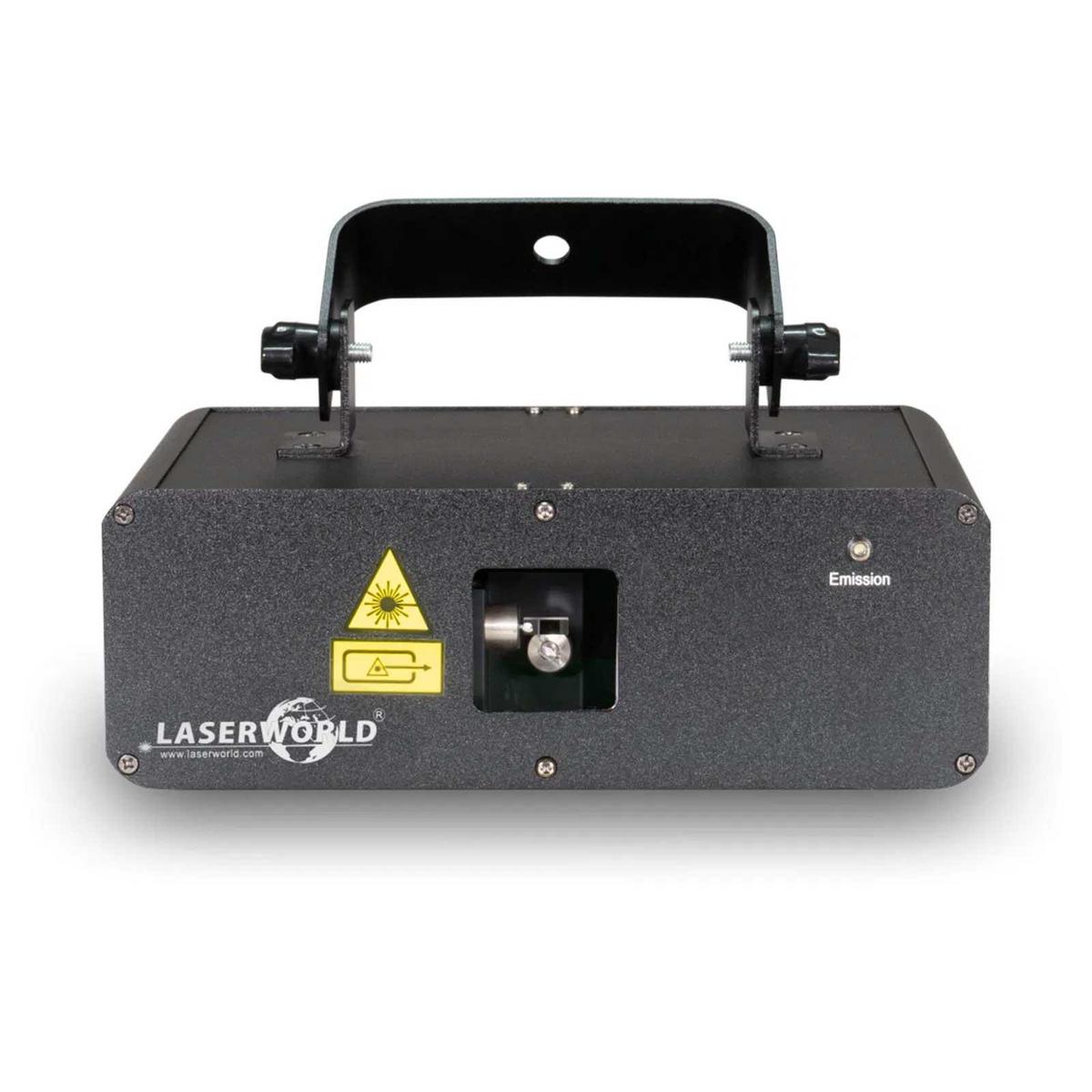

The Laserworld EL-400RGB S is a compact RGB show laser designed for users who want vibrant, professional-looking laser effects without complex programming. With a total output power of 400 mW and fast 15kpps scanners at 8 degrees, it delivers sharp, colourful aerial patterns ideal for bars, mobile DJs, private events and small to medium-sized clubs.
The EL-400RGB S combines a 650 nm red diode, 532 nm green DPSS and 445 nm royal blue diode laser to produce bright, well-balanced RGB colours. A beam diameter of approximately 3 mm and divergence of 2 mrad ensure crisp, clearly defined effects that remain sharp even in smaller venues.
Multiple dynamic patterns can be controlled via DMX, auto mode or sound-to-light operation. In sound-active mode, the built-in microphone reacts to music, with adjustable sensitivity for accurate beat synchronisation. The 15kpps scanner system enables smooth tunnels, waves and geometric effects.

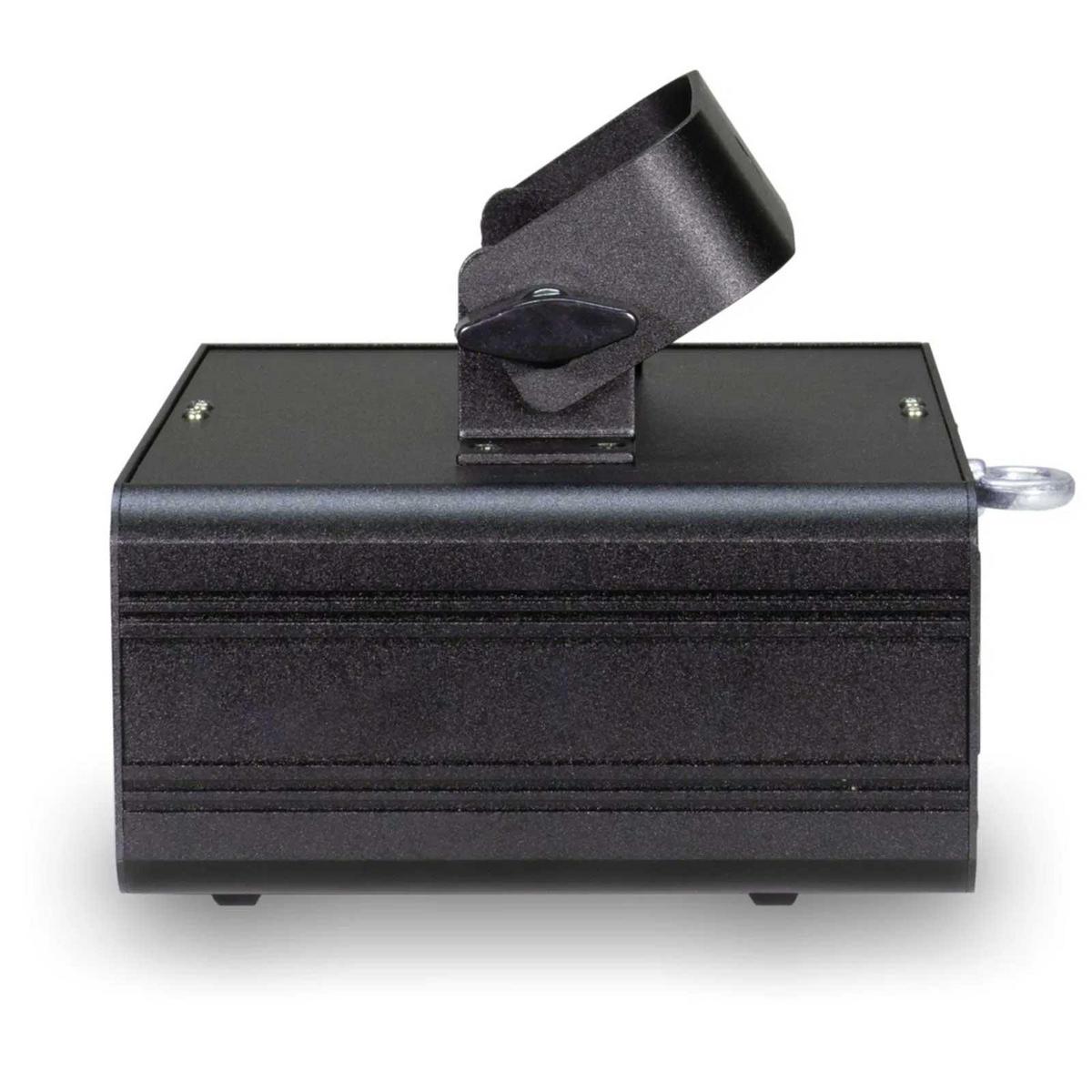

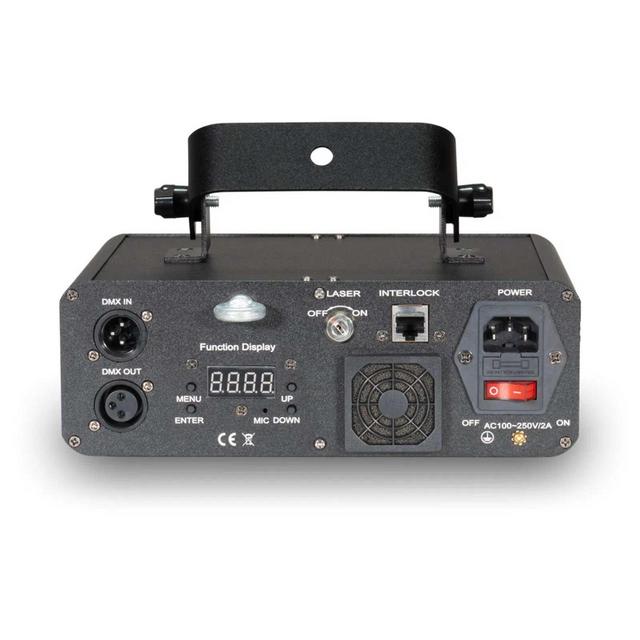

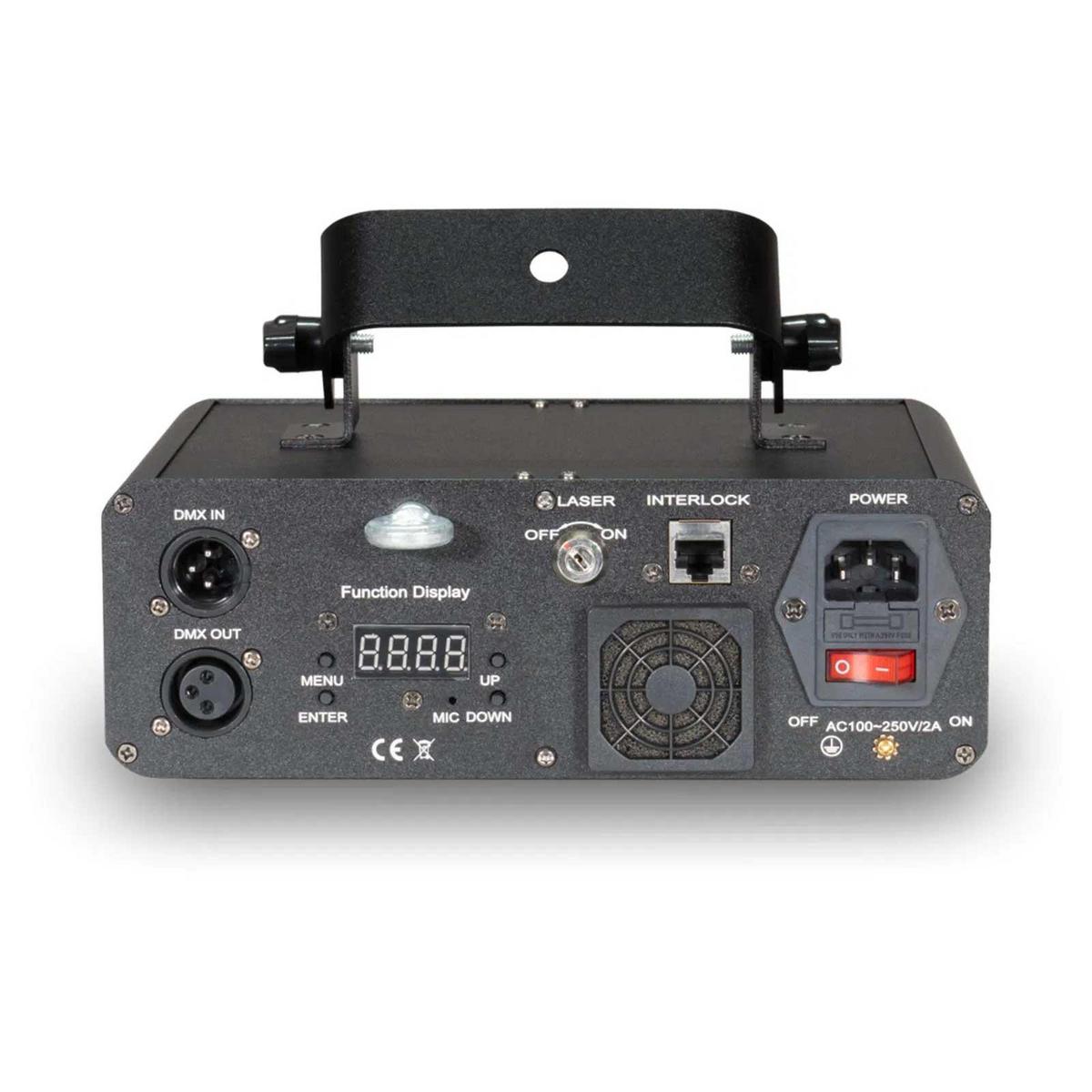

Designed with professional use in mind, the EL-400RGB S includes essential safety features such as a key switch and interlock connector for an external emergency stop. Its robust yet compact enclosure makes it suitable for both mobile use and fixed installations.
| Specification | Details |
|---|---|
| Total Output Power | 400 mW |
| Red Laser | 120 mW / 650 nm |
| Green Laser | 100 mW / 532 nm |
| Blue Laser | 180 mW / 445 nm |
| Beam Diameter / Divergence | Approx. 3 mm / 2 mrad |
| Scanner Speed | 15 kpps @ 8 degrees |
| Laser Class | Class 3B |
| Operating Modes | DMX, Auto, Sound-to-Light |
| Power Supply | 85-250 V AC, 50/60 Hz |
| Power Consumption | 30 W |
| Dimensions (W × D × H) | 255 × 245 × 100 mm |
Q: Who is the EL-400RGB S best suited for?
A: Mobile DJs, bars, private events and small to medium-sized clubs.
Q: Does it support DMX control?
A: Yes, full DMX control is available alongside auto and sound-to-light modes.
Q: Are safety features included?
A: Yes, it includes a key switch and interlock connector for an external emergency stop.
Q: Can sound sensitivity be adjusted?
A: Yes, the microphone sensitivity can be adjusted to match music levels.
