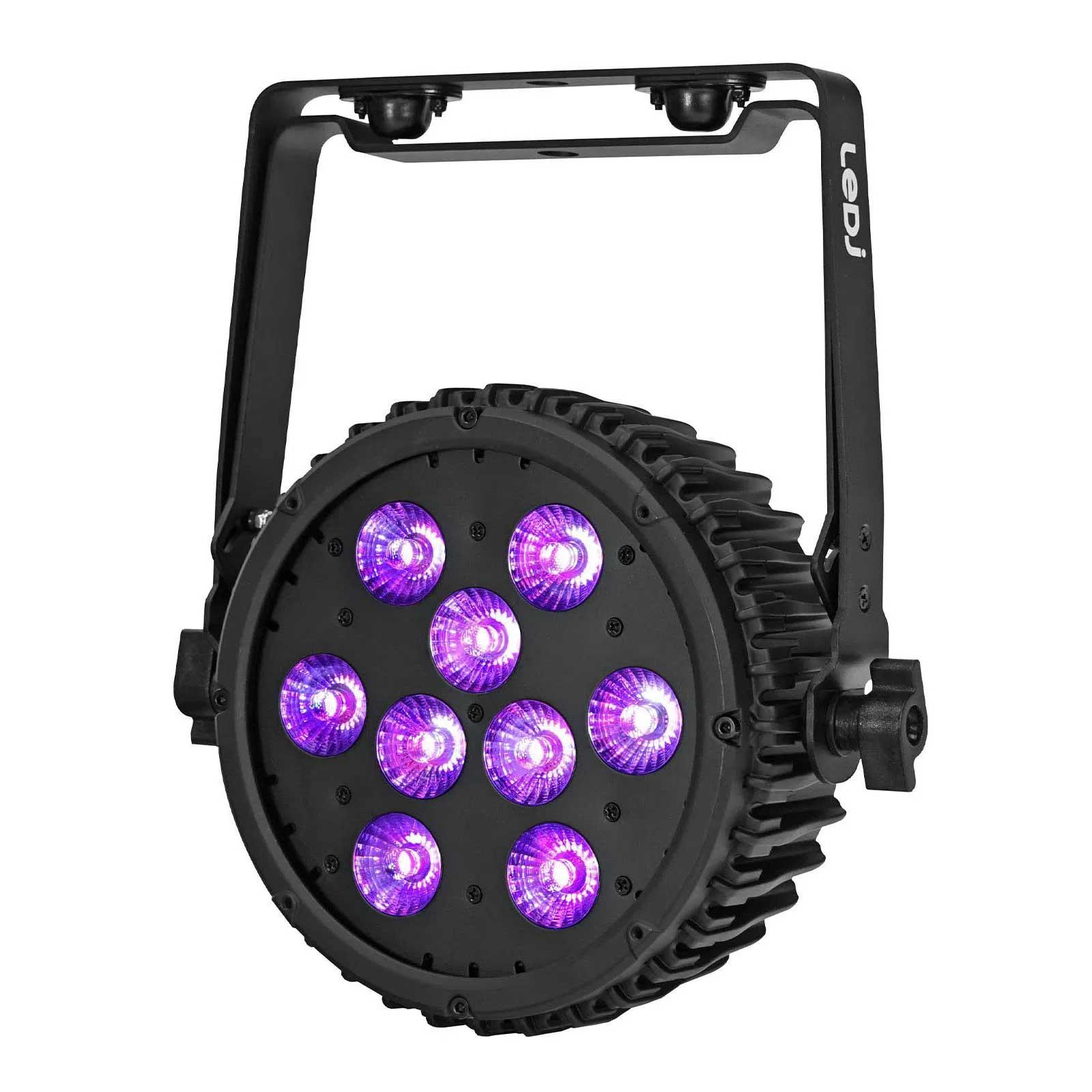

The LEDJ Intense 9HEX10 Pro Slim Par is a professional LED wash fixture designed to deliver rich, vibrant colour for stage, events, and venue uplighting. The fixture features nine 10W six-colour LEDs (RGBWAUV), extending traditional RGB mixing with the addition of white, amber, and ultraviolet for striking colour effects, subtle pastels, and warm tones. Its slimline design, convection-cooled operation, and rental-ready connectivity make it ideal for both permanent installations and touring setups.

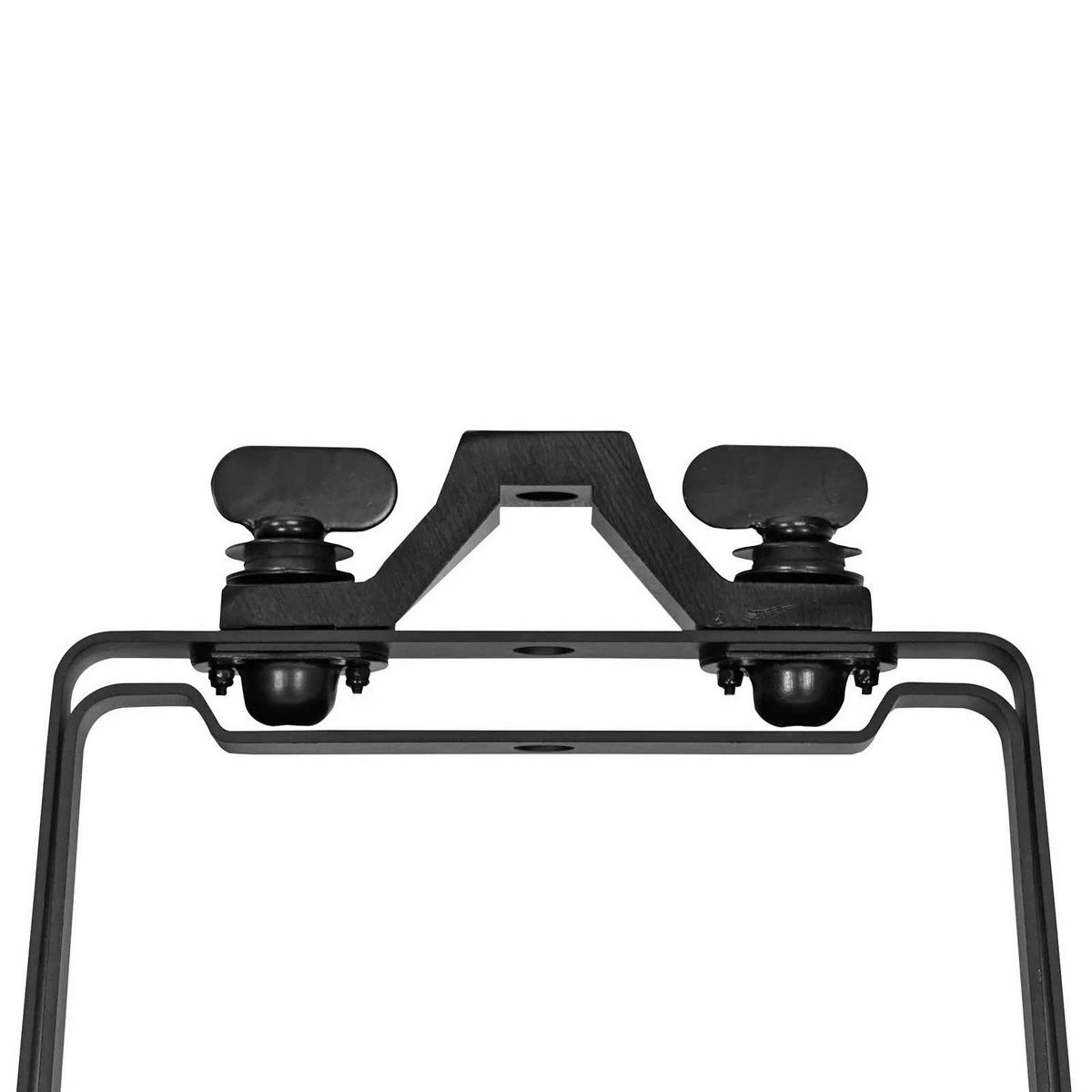

Constructed with a robust slimline chassis, the 9HEX10 Pro is built for professional use. The fixture runs silently thanks to convection cooling, making it well-suited for theatres, studios, and noise-sensitive applications. It includes a quick-release omega clamp for fast rigging and features multiple mounting points to accommodate optional accessories such as barn doors or gel frames. Professional connectivity with PowerTwist TR1 and 5-pin DMX ensures seamless integration into lighting rigs.
| Specification | Details |
|---|---|
| Light Source | 9 × 10W six-colour LEDs (RGBWAUV) |
| Beam / Field Angle | 25 degrees / 35 degrees |
| Output | 3,650 lux at 2 m (maximum output) |
| Refresh Rate | 4 kHz |
| DMX Channels | 2 / 3 / 4 / 5 / 6 / 8 / 10 selectable |
| Control Modes | Static colour, fade, chase, auto, sound active, master/slave |
| Dimming | 0-100% |
| Strobe | Variable |

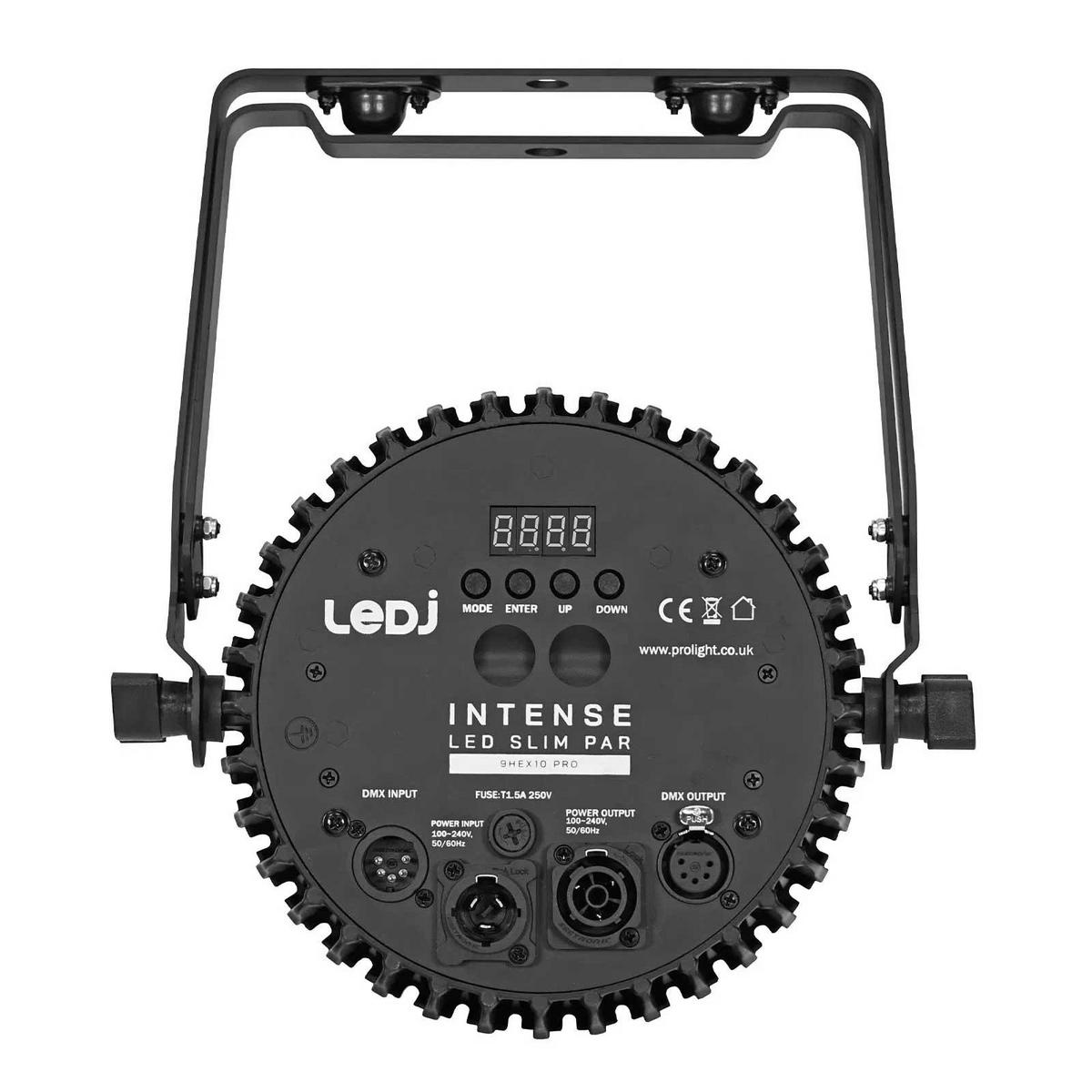

| Power Connection | PowerTwist TR1 in/out |
| DMX Connection | 5-pin XLR in/out |
| Cooling | Convection cooled (silent) |
| Power Consumption | 98 W |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Fuse | T1.5A 250 V |
| Dimensions (H × W × D) | 295 × 260 × 93 mm |
| Weight | 2.6 kg |
The LEDJ 9HEX10 Pro delivers vibrant and versatile colour mixing, with the added advantage of UV to create intense atmospheres and striking effects. Its silent operation ensures seamless integration into theatres, studios, and live venues. With its wide selection of DMX channel modes, it provides flexibility for both simple and advanced lighting designs.
Q: What makes the HEX LED system different?
A: It adds white, amber, and UV to traditional RGB, providing greater colour flexibility and distinctive effects.
Q: Can this unit be used in silent environments?
A: Yes, it uses convection cooling, so it operates completely silently.
Q: What accessories are available?
A: An optional barn door/gel frame kit (LEDJ253A) can be added for beam control.
Q: Is it suitable for both installation and touring?
A: Yes, it is compact, durable, and includes a quick-release omega clamp for fast rigging.
Q: How many DMX channel modes are available?
A: It offers multiple modes ranging from 2 to 10 channels, giving flexibility for both basic and advanced control.
