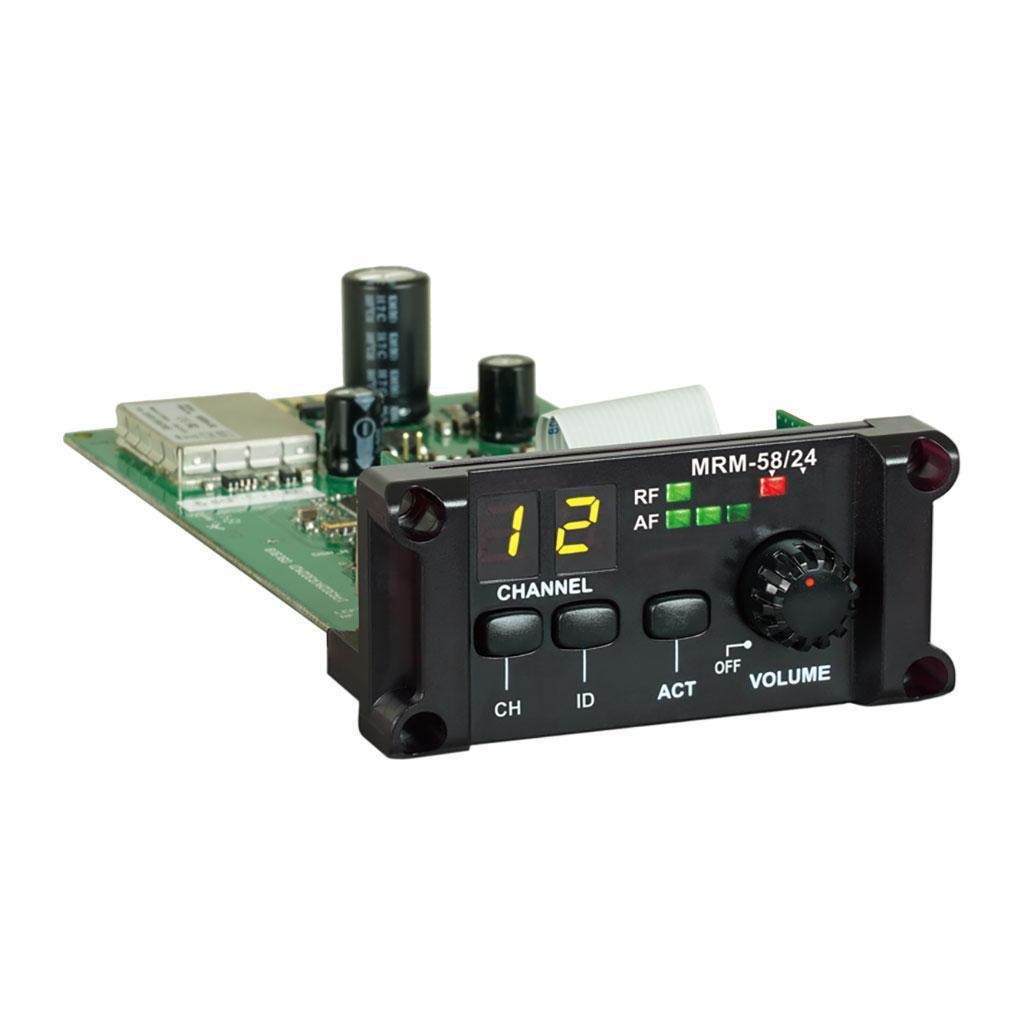

MiPro MRM-58 Single Channel Receiver Module 5.8Ghz

MRM-58 Single Channel Wireless reciver for MiPro Portable PA Systems.

Features:

• Operates in the 5.8 GHz user license-free ISM band. Up to 12 preset compatible channels.
• True diversity technology and stable digital FSK modulation circuit eliminate signal dropouts and ensure best reception quality.
• Combining FHSS frequency-hopping technique with adaptive tracking algorithm to prevent interferences from other 2.4 GHz wireless devices.
• Featuring an easy-to-read channel LED display, audio and transmitter battery status indicators.
• The modular design allows for fast and easy installation or replacement.
• Ideal sound amplification for musical instruments.

Specifications:

• Frequency Band ISM 5.8 GHz
• Bandwidth 125 MHz
• Preset Channels 12 preset compatible channels with 8 selectable ID codes and one specific ID
• Channel Setting Manually set up the desired channel or scan for an open channel. Press the ACT button to synchronize the transmitter and receiver
• ID Code Setup d1, d2, … d8 for general selection. dP for 1-to-1 Pairing mode
• Display LED channel, RF indicator and AF meters
• Receiving Mode True diversity
• Sensitivity +12 dBμV
• Latency < 2.6 ms
• S/N Ratio > 113 dBA, analog output
• THD < 0.1% @ 1 kHz
• Frequency Response 20 Hz – 20 kHz
• AF Output 2 V RMS
• Power Supply DC 12 – 15 V
• Dimensions 75 × 35 × 147 mm (W × H × D)
• Weight Approx. 80 g
