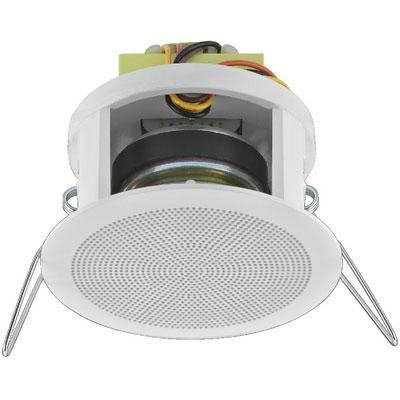

The EDL-22/WS is a compact, flush-mount ceiling speaker designed for high-performance speech and background music reproduction in public address systems. With its discreet profile and durable white plastic housing, this speaker integrates seamlessly into a wide range of commercial, hospitality, and office environments.
Featuring a minimalist, low-profile grille with a clean white finish, the EDL-22/WS offers discreet installation without compromising on audio clarity. The robust plastic housing ensures long-term durability, while its flush-mount design allows for efficient placement in suspended or hard ceilings. Quick-mount spring clamps simplify installation and secure the speaker tightly in place.
| Specification | Details |
|---|---|
| Speaker Type | Ceiling Mount, Dual-Cone |
| Driver Size | 100 mm (4") |
| Rated Power | 6 W @ 100 V |
| Power Taps | 6 W / 3 W / 1.5 W |
| Frequency Response | 100 Hz - 15 kHz |
| SPL (1W/1m) | 89 dB |
| Material | Flame-retardant ABS plastic |
| Colour | White (RAL 9010) |
| Mounting Method | Spring clamps |
| Cutout Diameter | ~106 mm |
| Dimensions | Ø 130 mm x 65 mm (depth) |
| Weight | Approx. 0.4 kg |
The EDL-22/WS offers clear and reliable audio performance suitable for speech-centric environments such as corridors, conference rooms, and restrooms. Its efficient transformer design allows scalable deployment in 100V systems with minimal signal degradation.
Q: Is the EDL-22/WS suitable for music playback?
A: Yes, while primarily designed for speech, its frequency response also supports light background music applications.
Q: Can I install this in a suspended (drop) ceiling?
A: Absolutely. The spring clamp mechanism is compatible with most drop ceiling panels for quick and secure mounting.
Q: Does this speaker require an amplifier?
A: Yes, it must be connected to a compatible 100V line amplifier as part of a public address system.
Q: Can I repaint the grille to match the ceiling colour?
A: Yes, the grille can be lightly spray-painted with appropriate paint, though care should be taken not to clog the mesh.
Q: Is this speaker fire-rated?
A: The ABS housing is flame-retardant, suitable for general commercial use, but for fire-critical zones, additional fire domes may be required per local regulations.
