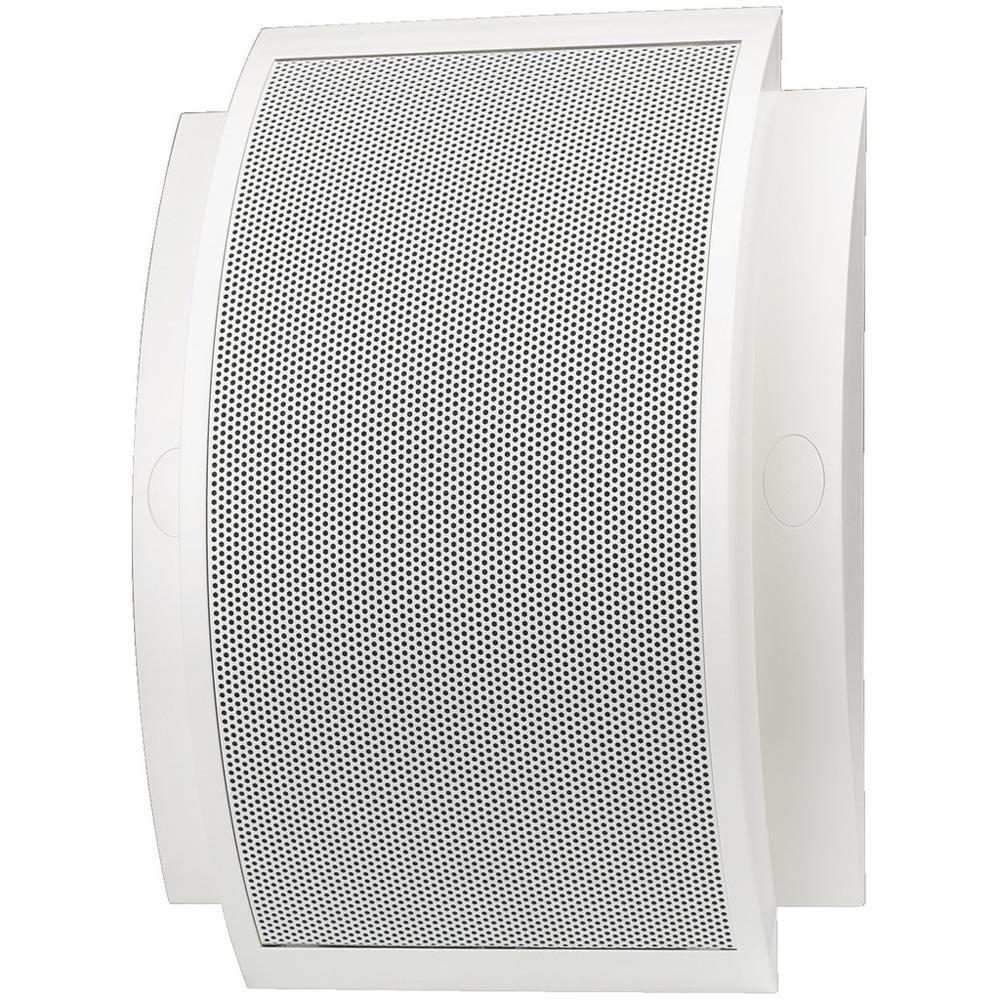

The ESP-62/WS PA 100V Wall Speaker is a premium-quality, surface-mounted loudspeaker engineered for public address and background music systems. Ideal for both commercial and institutional environments such as offices, retail stores, educational facilities, and healthcare centres, this speaker combines aesthetic design with exceptional sound clarity. With its 100V line compatibility, it is perfectly suited for distributed audio systems, ensuring uniform sound coverage across large areas.
The ESP-62/WS features a robust ABS housing that guarantees durability and resistance to environmental factors. Equipped with a high-quality metal grille, the speaker enhances sound dispersion and adds a professional finish. Lightweight construction and an easy installation mounting bracket ensure hassle-free setup and optimal positioning for the best audio performance.
| Specification | Details |
|---|---|
| Power Source | 100V Line |
| Rated Power | 6W |
| Power Tappings | 6W / 3W / 1.5W |
| Frequency Response | 120 Hz - 18 kHz |
| SPL @ 1W/1m | 90 dB |
| Driver Unit | 6.5" Full-Range Speaker |
| Material | ABS Plastic Housing, Metal Grille |
| Dimensions (W x H x D) | 230 x 310 x 90 mm |
| Weight | 2.5 kg |
| Additional Features | Adjustable Mounting Bracket, Modern Aesthetic Design |
It is easy to install and highly reliable, making it a favourite among AV integrators and building contractors for commercial installations where aesthetics and performance are equally important. The ESP-62/WS delivers clear and balanced sound reproduction, making it ideal for both speech and background music applications. Its wide dispersion ensures consistent audio coverage across the listening area, even at lower volume levels.
Q: Is the ESP-62/WS suitable for outdoor use?
A: This model is primarily designed for indoor installations. For outdoor use, a weather-resistant model is recommended.
Q: Can I adjust the volume directly on the speaker?
A: No, volume control is managed through the connected amplifier or control system in a 100V line setup.
Q: Is this speaker compatible with all 100V PA systems?
A: Yes, it is fully compatible with standard 100V line public address systems.
Q: How do I mount the speaker securely?
A: The unit comes with an adjustable wall-mount bracket, allowing for safe and easy installation with optimal angling.
Q: Does it require a transformer for 100V operation?
A: No additional transformer is needed; the speaker includes a built-in 100V line transformer.
