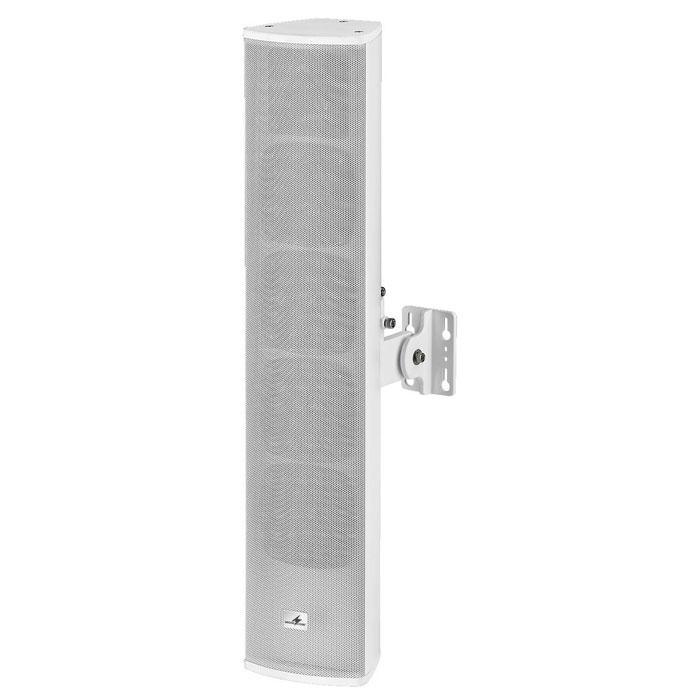

The Monacor ETS-422TW/WS is a high-quality, weatherproof PA column speaker designed for both indoor and outdoor public address applications. Its robust construction and high-fidelity sound make it particularly suitable for environments such as educational institutions, places of worship, sports facilities, and commercial spaces.
Constructed with an extruded aluminium cabinet and an aluminium front grille, the ETS-422TW/WS offers exceptional durability and resistance to environmental factors. Its IP66 rating ensures protection against dust and powerful water jets, making it suitable for challenging outdoor conditions. The speaker is supplied with a robust, tiltable and movable aluminium wall bracket, facilitating flexible installation options.
| Specification | Details |
|---|---|
| Transmission Technology | 100 V |
| Total Power Rating | 20 W |
| Power Taps | 20 W / 10 W / 5 W / 2.5 W |
| Frequency Range | 130 Hz - 20,000 Hz |
| Number of Speakers | 4 woofers + 1 tweeter |
| Speaker Size | 10 cm (4") |
| Sound Pressure Level (SPL) | 92 dB/W/m |
| Radiation Angle (Horizontal) | 140 degrees |
| Radiation Angle (Vertical) | 50 degrees |
| Housing Material | Aluminium |
| Colour | White |
| Mounting Device | Aluminium wall bracket |
| Protection Class | IP66 |
| Admissible Ambient Temperature | -20 degreesC to +50 degreesC |
| Dimensions (W x H x D) | 124 x 610 x 108 mm |
| Weight | 4 kg |
The ETS-422TW/WS delivers clear and intelligible audio, making it suitable for speech and ambient music applications. Its wide horizontal dispersion angle of 140 degrees ensures broad coverage, thereby reducing the number of speakers required for large areas. The integrated crossover network and 2-way design contribute to a balanced sound profile, enhancing the listening experience in various settings.
Q: Is the ETS-422TW/WS suitable for outdoor installations?
A: Yes, its IP66-rated weatherproof construction makes it ideal for outdoor use, providing protection against dust and powerful water jets.
Q: Can this speaker be used in a 100 V line PA system?
A: Absolutely. The ETS-422TW/WS is designed for 100 V line operation with multiple power taps for flexible integration.
Q: What type of bracket is included for mounting?
A: The unit comes with a durable, tiltable aluminium wall bracket for versatile mounting options.
Q: What kind of audio applications is this speaker best suited for?
A: It is well-suited for speech and ambient music in public address systems, especially in environments requiring wide dispersion and weather resistance.
Q: How does it perform in extreme temperatures?
A: The speaker operates reliably in a temperature range from -20 degreesC to +50 degreesC, making it suitable for varied climates.
