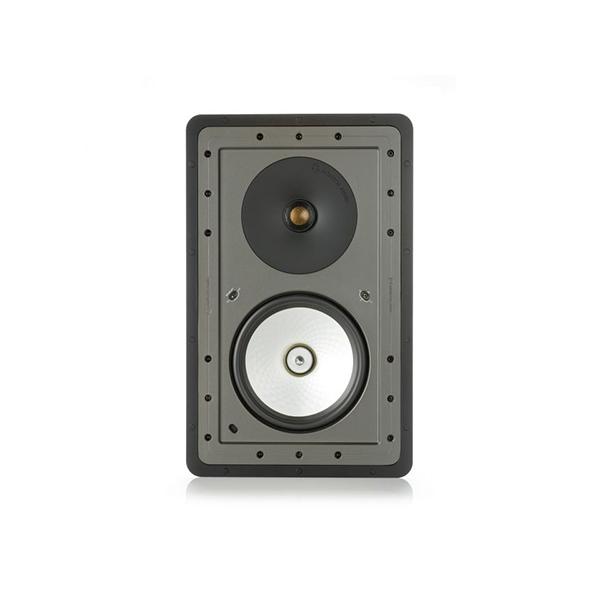

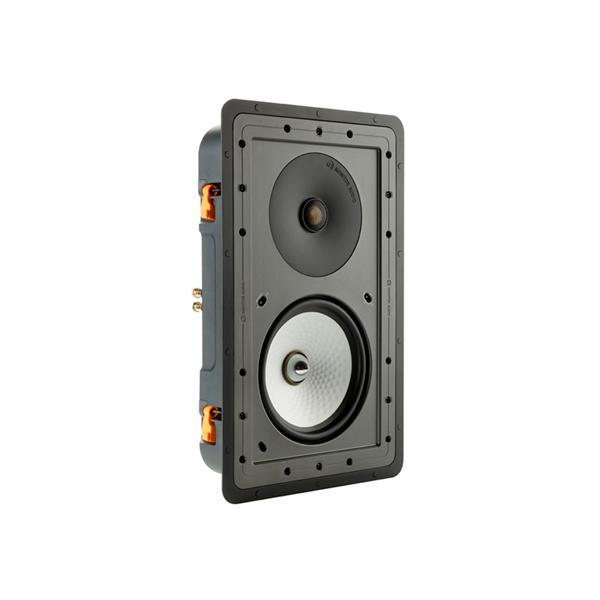

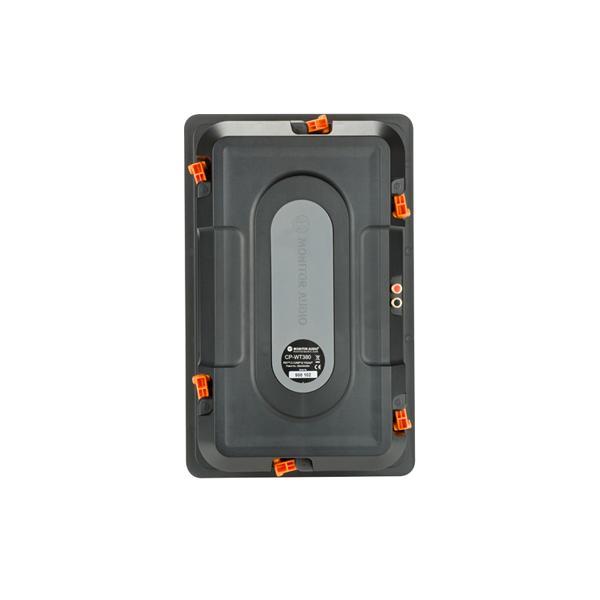

Monitor Audio CP-WT380 In-Wall Speaker

Alongside a pivoting C-CAM tweeter, the CP-WT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

Features:

• Pivoting C-CAM Gold Dome tweeter.
• C-CAM bass driver featuring Rigid Surface Technology (RST).
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Boundary compensation controls.
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

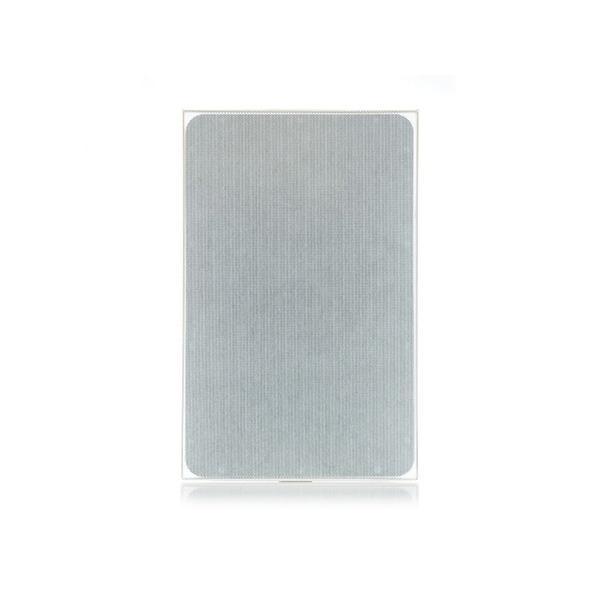

• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Specification:

• Frequency Response - 50 Hz - 25 kHz
• Nominal Impedance - 6 ohms
• Sensitivity (1W@1M) - 89 dB
• Maximum SPL - 109.6 dBA
• Power Handling (RMS) - 120 W
• Recommended Amplifier Requirements - 30 - 120 W
• Crossover Frequency - 2.5 kHz @ 12 dB / Octave
• Drive Unit Complement - 2-Way, 8" C-CAM RST cone bass driver, 1" C-CAM pivoting Gold Dome tweeter
• Adjustment Controls - HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch
• Overall Dimensions (H x W x D) - 472.5 x 303.5 mm (185/8 x 1115/16")
• Overall Depth (Including Grille) - 106 mm (43/16")
• Cut-Out Dimensions - 438 x 269 mm (171/4 x 109/16")
• Mounting Depth - 99 mm (37/8")
• Fixing Type - 6 position Tri-Grip dog leg fixings
• Construction Material - Mineral Filled ABS Plastic (RoHS2 Compliant)
• Weight - 4.95 kg (10 lb 14 oz)
• Pre-Construction Bracket - WB10 Pre-Construction Bracket (Light Brown)
