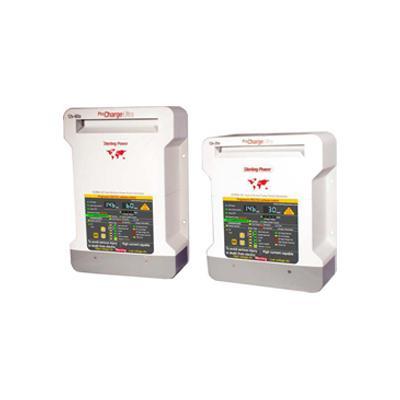

Sterling Power ProCharge Ultra Battery Chargers

#SP.PCU1220

ProCharge Ultra

The ultimate battery charger

3 output PFC global charger 110 and 230 v 50-60 hz (only 2 outputs on the 10 amp)

  • EN61000-3-2
  • EN61000-3-3
  • EN50081-1
  • EN60335-2-29

    Product information:

    • 12 v 60 amp model, all other units pro rata
    • Input voltage range 90-270 v 40-70 hz
    • Power Factor at 230 v 0.976
    • Efficiency 89.4%
    • Full load current (110/230v) 9.8/4.6
    • Ripple noise (R.M.S.) 14mv
    • Ground leakage 0.5 ma
    • Generator/ mains power required to run unit (watts)
    • 12 v 20 amp approx 300 watts
    • 12 v 30 amp approx 450 watts
    • 12 v 40 amp approx 600 watts
    • 12 v 50 amp approx 750 watts
    • 12 v 60 amp approx 900 watts
    • 24 v 20 amp approx 600 watts
    • 24 v 30 amp approx 900 watts
    • volt metre accuracy +/- 1%
    • amp metre accuracy +/- 1%

    Every so often it becomes necessary in a competitive market to simply raise the bar so high its leaves everyone in your wake, we do this regularly on other products but this year we re-visited our standard battery charger range to make a product so far beyond our competitors for performance, style and value that you simply leave them behind, with this new charger we like to think we have done just that.

    With our years of experience in this market we thought of everything we could possibly think of and combine it all into this product range, resulting in the battery charger. Extra new features on this product above and beyond of standard features include:

  • 11 pre programmed battery curves including Lifep04.
  • 1 custom set, can be set from charger, no need for computer.
  • 2 x digital meters for current and voltage measurement.
  • 1 x power meter to show what reserve power left on the unit.
  • PFC, active, up to 0.99 pf, ensuring efficient power conversion, up to almost 90% as opposed toabout 50% for older non PFC technology. Combined with (below) 6)New synchronised rectification output as opposed to diode output, giving up to a extra10% efficiency
  • High voltage de-sulphation cycle.
  • New, low activity, standby mode to increase battery life.
  • Battery health program.
  • Multiple speed fan control to reduce unnecessary fan noise experienced by the customer, even though the new extreme efficiency reduces the need for fans, at high ambient temperatures (40-50 deg c) fans would still be required to ensure operation.
  • Primary (processor digitally controlled) and an emergency backup secondary (analogue controlled) high voltage trip.
  • 32 L.E.D. information panel
  • Internal scan and systems check
  • Remote control
  • Small footprint and light weight
  • Include battery temperature sensor
  • As with all our marine chargers all metals used are non ferrous

    Remote control option:

    • 110x 68 x20 mm
    • Including 10 metres cable
    • Unique remote housing can be surface mounted, recess mounted or flush mounted
  • This item has been discontinued Item has been discontinued
