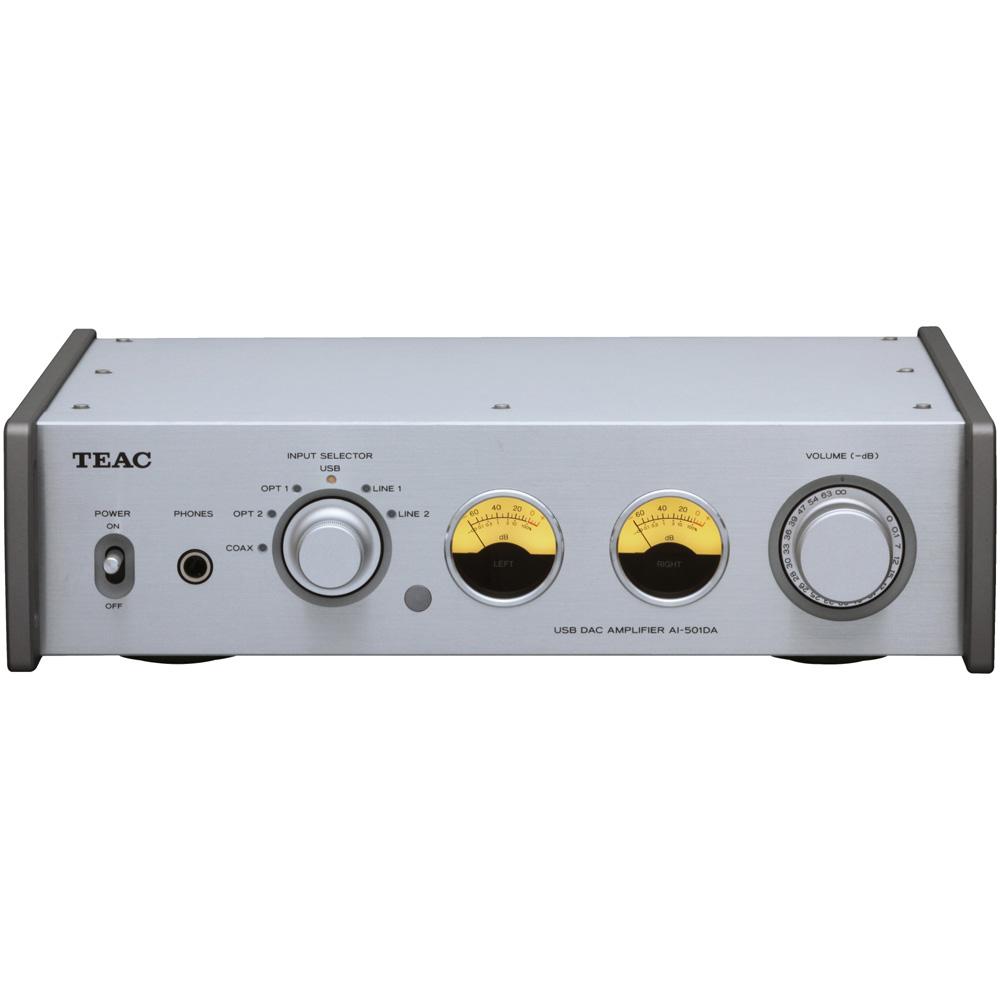

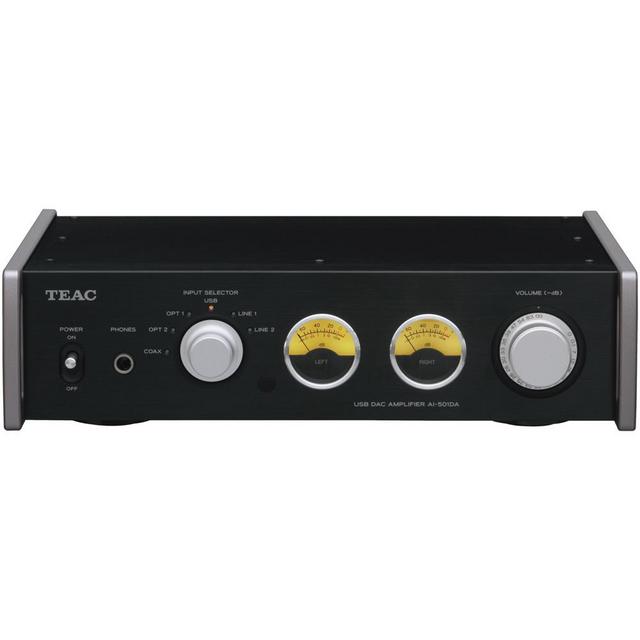

Teac AI-501DA Integrated Amplifier With 192kHz DAC
Integrated Amplifier with 192kHz USB Audio Input. High-Quality Sound in a Modern Hi-Fi System – The Smarter Way.
Main Features:
- High-quality sound, high output power, and low power consumption with an efficient Class-D Amplifier by ABLETEC, Norway
- USB cable connection for a fully digital path from any PC, allowing playback of better-than-CD quality sound
- BurrBrown PCM5102 D/A Converter for various types of digital audio formats
- Large number of Input/Output connectors allows users to integrate with full-scale hi-fi system
- A Toroidal-Core Power Transformer for stable current supply
- Full-metal jacket. Gorgeous aluminum panels for front, top and sides. Small footprint fits your desktop
Technical Specifications:
- ALC0180 Class-D Power Amplifier by ABLETEC, Norway
- 90W/ch of output power (at 4 ohms impedance)
- Supports up to 24bit/192kHz USB Audio input
- Supports up to 24bit/192kHz Coaxial S/PDIF digital audio input
- Supports up to 24bit/96kHz Optical S/PDIF digital audio input
- Internal 32bit processing on the BurrBrown PCM5102 D/A Converter
- Toroidal-core Power Transformer
- Schottky Barrier diodes for power supply circuits
- Full-metal body
- Dual analog level meters with dimmable backlight
- Headphone amplifier that employs two operational amplifiers
- 1 USB Audio input
- 2 Optical S/PIDF digital inputs
- 1 Coaxial S/PDIF digital input
- 2 RCA analog line inputs
- Screw-type speaker terminals (AWG8 compatible)
- Headphone out
- Aluminum-weighted volume knob
- Remote control
- 3-polar AC socket with a detachable AC cable
